EG1500 K4 A (G200) - Honda Generator, Made in Japan (SN: G200-1000107 - G200-9999999) FRAME + MOUNT RUBBER (2) Parts Diagram

Generator, Made in Japan

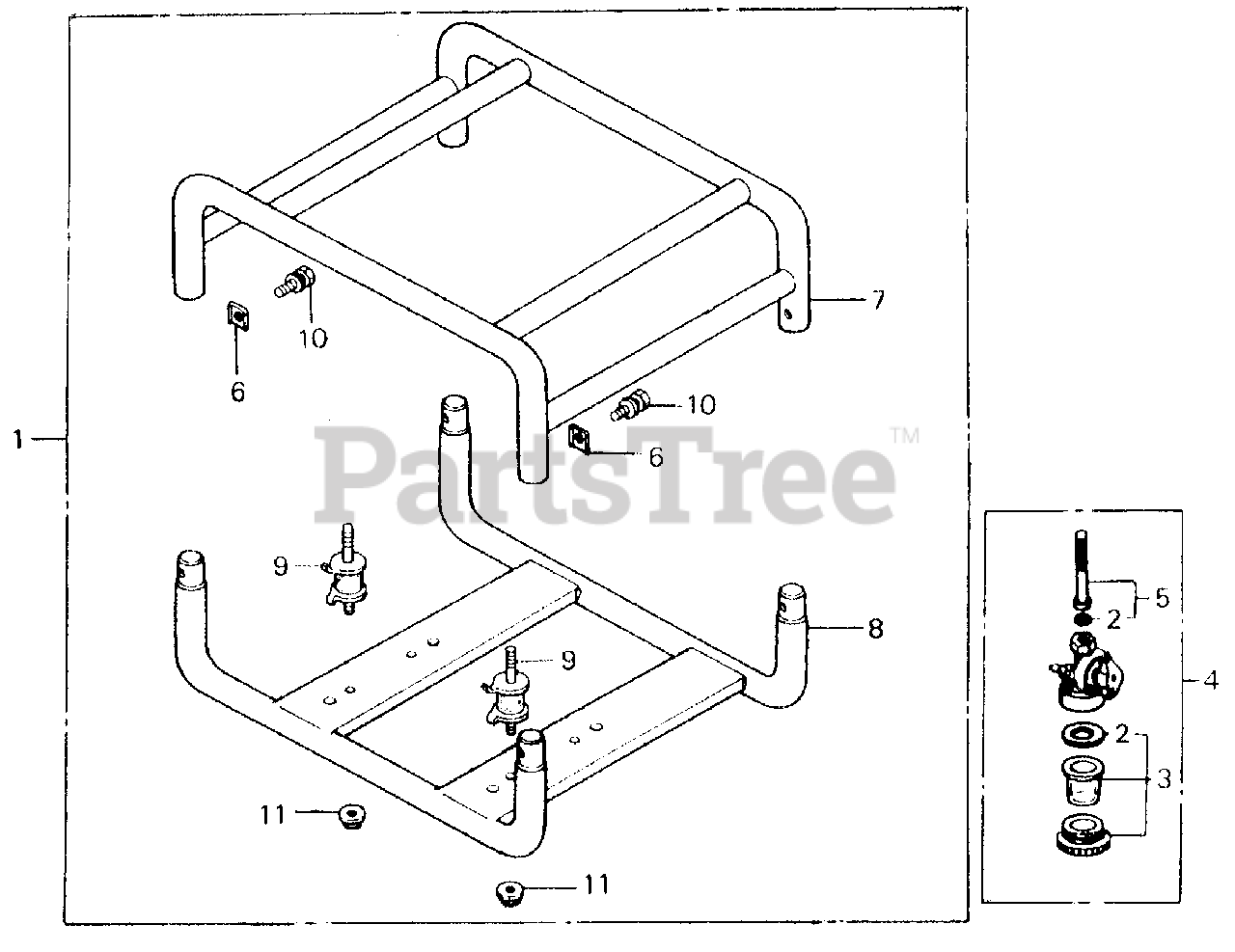

FRAME + MOUNT RUBBER (2) Parts Diagram

  • Title

1

Honda 06503-871-000ZA

FRAME KIT *NH105* (MAT BLACK)

Note: Use from Frame SN 1548923.

$

$

Not available

2

Honda 16080-883-005

GASKET SET, VALVE

$14.99

$

In Stock, only 2 left!

0

3

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$33.99

$

In Stock, only 2 left!

0

4

Honda 16950-898-005

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

4

Honda 16950-898-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Currently unavailable

5

Honda 16952-883-005

SCREEN SET

$21.99

$

Usually ships in 3-6 days

0

6

Honda 50121-871-810

PLATE, JOINT

Note: Use from Frame SN 1548923.

$

$

Not available

6

Honda 90501-898-000

WASHER, FRAME JOINT

$3.49

$

In Stock, only 2 left!

0

7

Honda 50140-871-000ZA

FRAME (UPPER) *NH105* (MAT BLACK)

Note: Use from Frame SN 1548923.

$

$

Not available

8

Honda 50150-871-000ZA

FRAME (LOWER) *NH105* (MAT BLACK)

Note: Use from Frame SN 1548923.

$

$

Not available

9

Honda 68311-YB3-K80

RUBBER, ENGINE MOUNTING

Note: Use from Frame SN 1548923.

$8.49

$

Usually ships in 3-6 days

0

10

Honda 93412-08016-08

BOLT-WASHER (8X16)

Note: Use from Frame SN 1548923.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use from Frame SN 1548923.

$1.49

$

In Stock, Qty 20+

0
