EG3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-4000001 - EA6-4100000) CARBURETOR (EG) Parts Diagram

Generator, Made in Japan

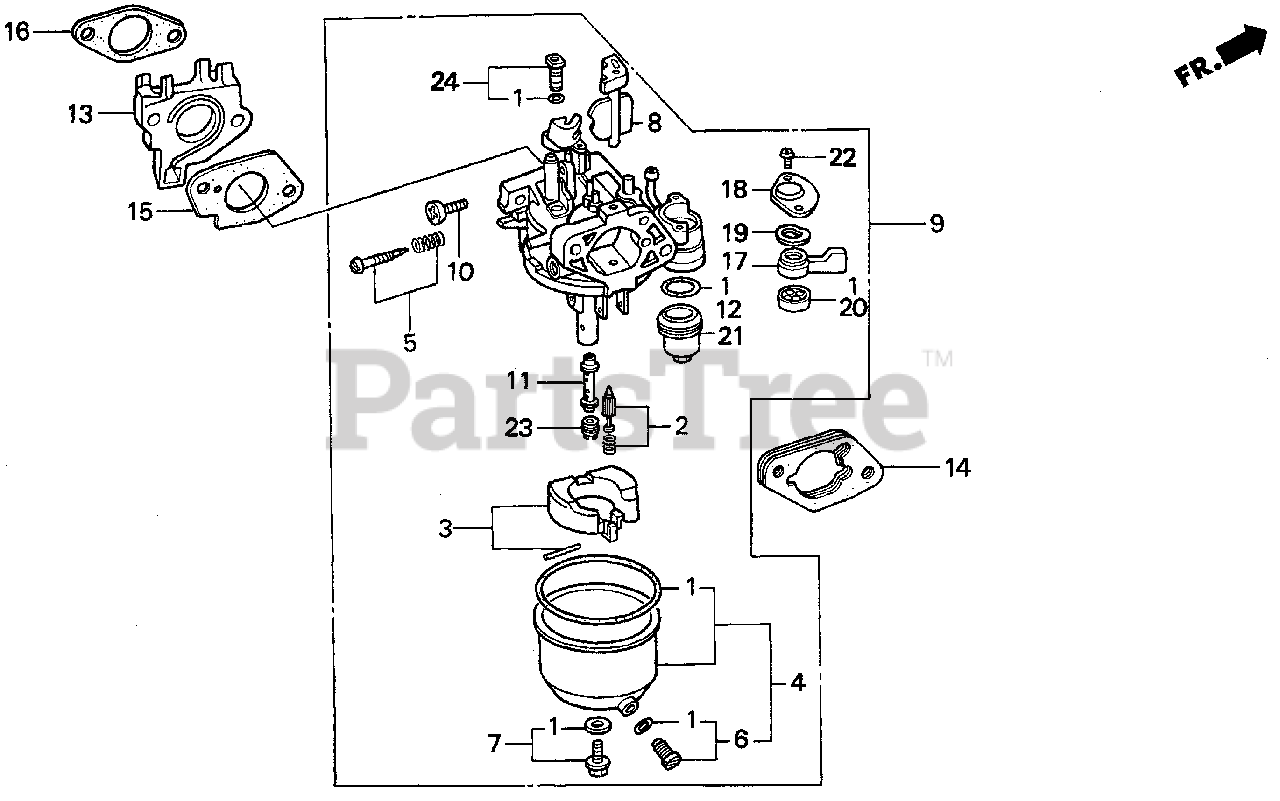

CARBURETOR (EG) Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2107845).
(Superseded to 16010-ZE2-812)

Note: Use up to Engine SN BE15B D.

$17.99

$

In Stock, Qty 16

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

Note: Use up to Engine SN BE15B D.

$17.99

$

In Stock, Qty 16

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

Note: Use from Engine SN BE15B E.

$17.99

$

In Stock, Qty 16

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$40.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$46.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA0-931

SCREW SET, PILOT (Honda Code 2090009).

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$9.99

$

In Stock, only 4 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$12.99

$

In Stock, only 3 left!

0

8

Honda 16044-ZE2-005

CHOKE SET (Honda Code 2090017).

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-812

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE15B C) (Honda Code 2333169).
(Superseded to 16100-ZE2-814)

Note: Use up to Engine SN 1062262.

$121.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-814

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE15B E) (Honda Code 3441490).

$121.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$14.99

$

In Stock, only 2 left!

0

11

Honda 16166-ZE2-015

NOZZLE, MAIN (Honda Code 2157543).

$30.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$6.99

$

In Stock, Qty 7

0

13

Honda 16211-ZE2-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$9.49

$

In Stock, Qty 13

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357307).
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

16

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.49

$

In Stock, Qty 19

0

17

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, VALVE (Honda Code 1819986).
(Superseded to 16953-ZE1-406)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.49

$

In Stock, Qty 6

0

20

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE15B D.

$3.99

$

In Stock, Qty 15

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use up to Engine SN BE15B D.

$3.99

$

In Stock, Qty 15

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE15B E.

$3.99

$

In Stock, Qty 15

0

21

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$19.99

$

In Stock, only 1 left!

0

22

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE15B D.

$0.99

$

In Stock, Qty 8

0

22

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use from Engine SN BE15B E.

$

$

Currently unavailable

23

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-124-0880

JET, MAIN (#88) Use from Engine SN BE27A B to BE27A E.

$10.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (Honda Code 2159820).

$21.99

$

Usually ships in 3-6 days

0
