EG3500X K1 A/A (EA6) - Honda Generator, Made in Japan (SN: EA6-4100001 - EA6-4119668) RECOIL STARTER Parts Diagram

Generator, Made in Japan

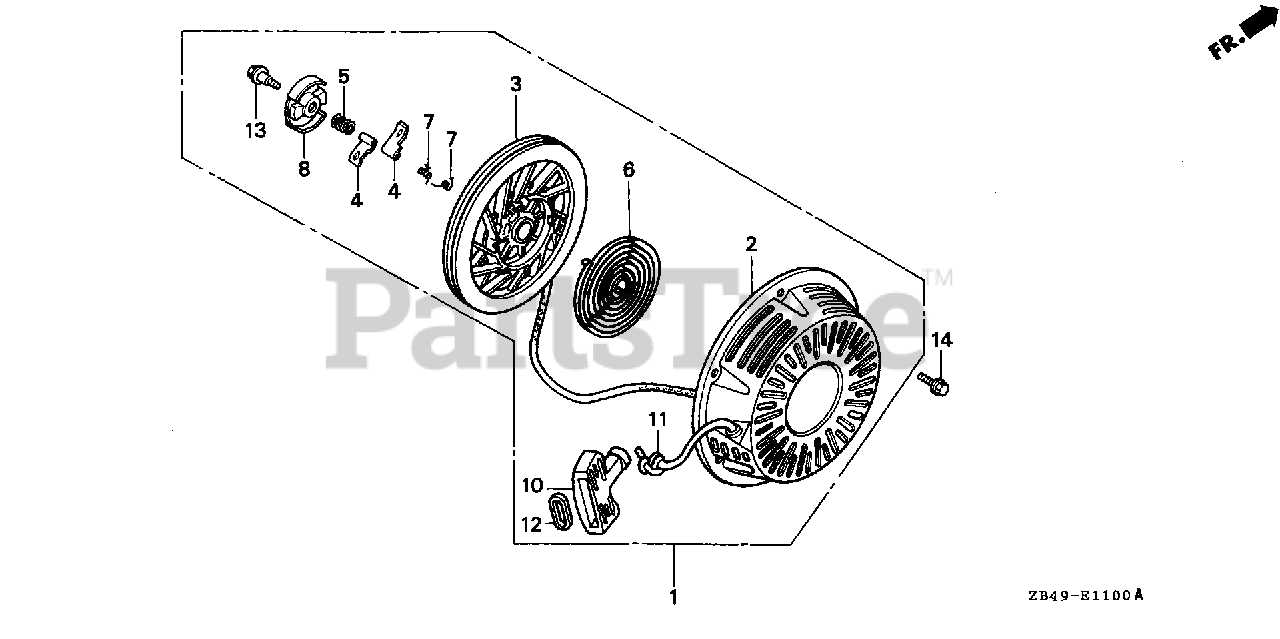

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZE

STARTER ASSY., RECOIL *NH16M* (GUN METALLIC BLACK) (NOT AVAILABLE)

Note: Use up to Engine SN 3171590.

$

$

Not available

1

Honda 28400-ZE2-W02ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 3171591.

$118.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 3171591.

$175.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZE

CASE, RECOIL STARTER *NH16M* (GUN METALLIC BLACK)

Note: Use up to Engine SN 3171590.

$

$

Not available

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

$46.99

$

In Stock, only 2 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$8.49

$

In Stock, Qty 6

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.99

$

In Stock, only 2 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$20.99

$

In Stock, Qty 6

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.99

$

In Stock, Qty 7

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$16.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$8.99

$

In Stock, only 2 left!

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$8.99

$

In Stock, only 2 left!

0

11

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$13.99

$

In Stock, only 1 left!

0

12

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

$7.49

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

$4.99

$

In Stock, Qty 9

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.99

$

In Stock, Qty 20+

0
