EG4000CL AG (EBGC) - Honda Generator, Made in China (SN: EBGC-1500001 - EBGC-9999999) ROTOR@STATOR Parts Diagram

Generator, Made in China

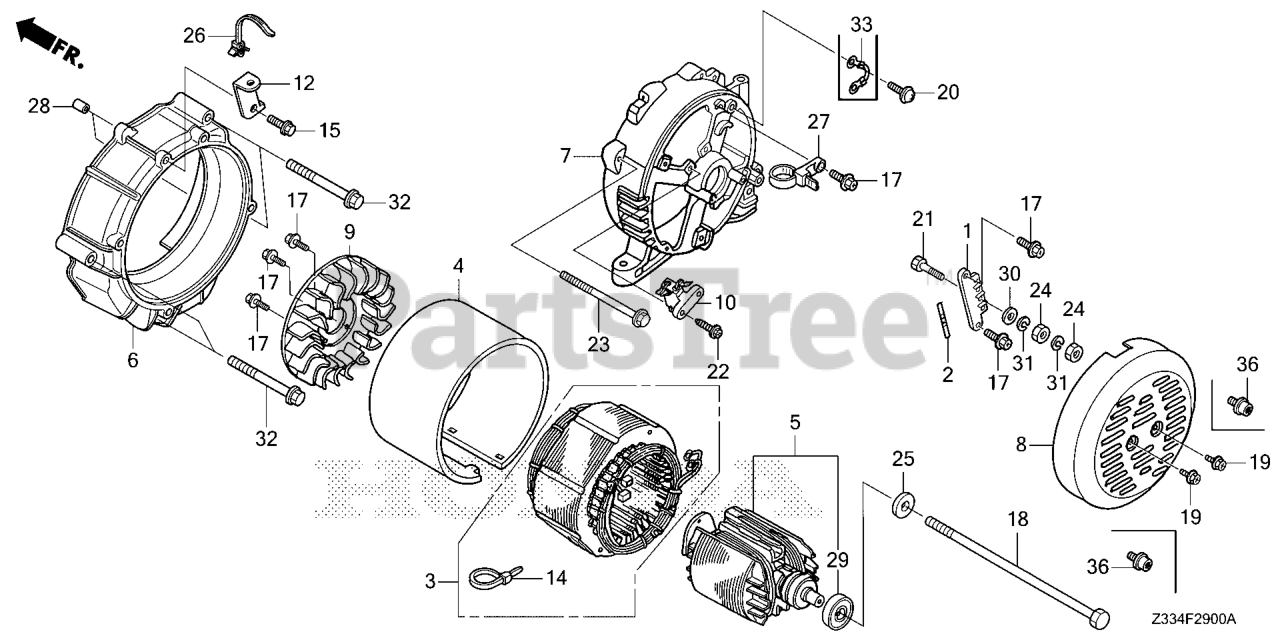

ROTOR@STATOR Parts Diagram

  • Title

1

Honda 31118-Z22-000

TERMINAL, VOLT CHANGE

$29.99

$

Usually ships in 3-6 days

0

2

Honda 31119-Z18-D20

MARK, VOLT

$3.99

$

Usually ships in 3-6 days

0

3

Honda 31120-Z33-S30

STATOR ASSY.

$1501.99

$

Usually ships in 3-6 days

0

4

Honda 31127-Z33-000ZA

COVER, STATOR *NH105* (MAT BLACK)

$38.99

$

Usually ships in 3-6 days

0

5

Honda 31130-Z33-000

ROTOR

$586.99

$

Usually ships in 3-6 days

0

6

Honda 31161-Z30-000

HOUSING, FR.

$139.99

$

In Stock, only 2 left!

0

7

Honda 31171-Z22-000

HOUSING, RR.

$225.99

$

Usually ships in 3-6 days

0

8

Honda 31186-Z22-C30ZA

COVER, GENERATOR END *NH105* (MAT BLACK)

$72.99

$

Usually ships in 3-6 days

0

9

Honda 31190-Z30-000

FAN, GENERATOR COOLING

$27.99

$

Usually ships in 3-6 days

0

10

Honda 31295-Z30-000

BRUSH ASSY.

$26.99

$

In Stock, only 2 left!

0

12

Honda 32103-Z30-000

BRACKET, WIRE HARNESS CLIP

$8.99

$

Usually ships in 3-6 days

0

14

Honda 32903-ZC8-N01

TIE, CABLE (C)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

17

Honda 90032-875-000

SCREW, TAPPING (5X14)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90101-Z33-000

BOLT, HEX. (10X203)

$12.99

$

Usually ships in 3-6 days

0

20

Honda 90102-Z21-000

SCREW, PAN (5X12)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90102-Z22-000

BOLT, HEX. (5X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90131-Z30-000

SCREW, TAPPING (5X18)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90157-Z33-000

BOLT, FLANGE (6X113)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 90301-Z22-000

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

26

Honda 90672-Z22-003

CABLE, STRAP

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90673-Z22-000

TIE, CABLE

$5.49

$

Usually ships in 3-6 days

0

28

Honda 90701-Z7E-000

PIN, DOWEL (8X12)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$36.99

$

Usually ships in 3-6 days

0

30

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

31

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.99

$

Usually ships in 3-6 days

0

32

Honda 95701-08060-00

BOLT, FLANGE (8X60)

$2.49

$

In Stock, only 1 left!

0

36

Honda 90133-Z22-C30

SCREW, TAPPING (5X12) (TORX)

$1.99

$

Usually ships in 3-6 days

0
