EG4000CL AN (EBGC) - Honda Generator, Made in China (SN: EBGC-1500001 - EBGC-9999999) CONTROL PANEL (EG4000CL-AG,AN) Parts Diagram

Generator, Made in China

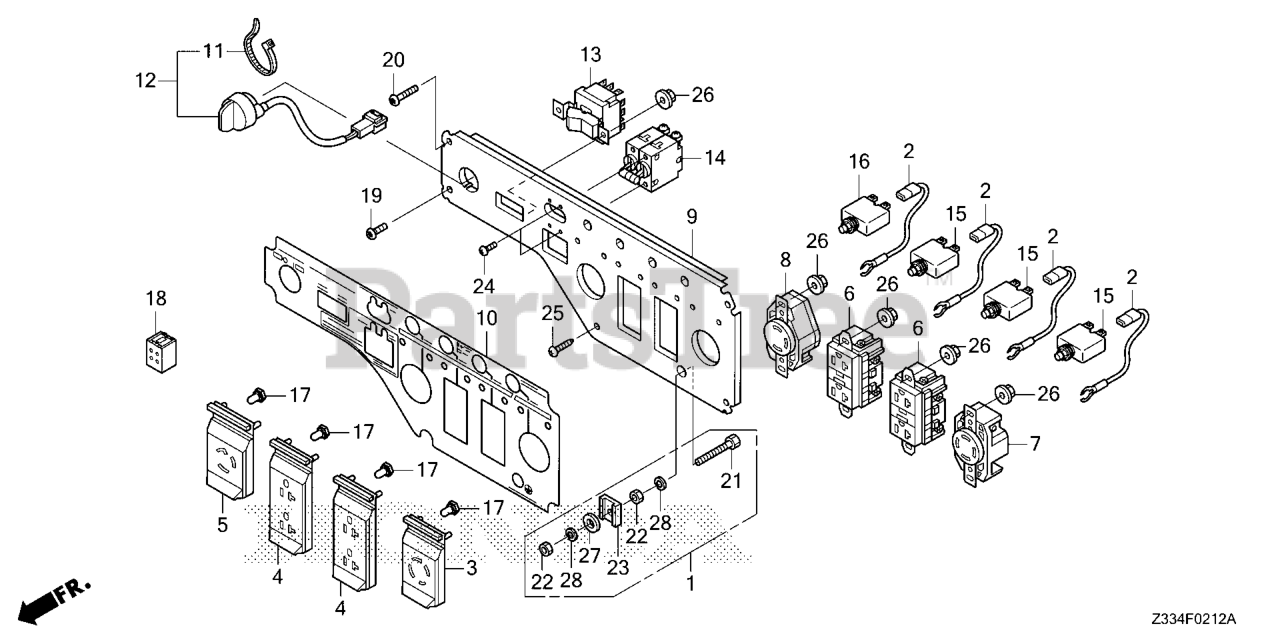

CONTROL PANEL (EG4000CL-AG,AN) Parts Diagram

  • Title

1

Honda 31428-Z22-000

TERMINAL SET, GROUND

$8.99

$

Usually ships in 3-6 days

0

2

Honda 32101-Z30-C40

SUB-WIRE ASSY.

$6.99

$

Usually ships in 3-6 days

0

3

Honda 32320-Z37-R50

COVER, RECEPTACLE (30A-125/250V)

$19.99

$

Usually ships in 3-6 days

0

4

Honda 32320-ZS9-W30

COVER, RECEPTACLE (20A-125V)

$19.99

$

Usually ships in 3-6 days

0

5

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$19.99

$

Usually ships in 3-6 days

0

6

Honda 32330-Z44-J31

RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z44-J32)

$128.99

$

In Stock, only 1 left!

0

7

Honda 32332-Z21-E31

RECEPTACLE (20A-125/250V)

$90.99

$

Usually ships in 3-6 days

0

8

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$89.99

$

Usually ships in 3-6 days

0

9

Honda 32345-Z33-V20ZA

PANEL, CONTROL *NH105* (AG) (MAT BLACK)

$209.99

$

Usually ships in 3-6 days

0

10

Honda 32366-Z33-V20

MARK, PANEL (CL-AG)

$101.99

$

Usually ships in 3-6 days

0

11

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 35120-Z30-C41

SWITCH ASSY., ENGINE STOP

$32.99

$

In Stock, only 2 left!

0

13

Honda 35320-Z22-E31

SWITCH ASSY., VOLT CHANGE

$108.99

$

Usually ships in 3-6 days

0

14

Honda 38220-Z33-D41

BREAKER, CIRCUIT (17A)

$141.99

$

Usually ships in 3-6 days

0

15

Honda 38240-Z22-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$88.99

$

In Stock, only 1 left!

0

16

Honda 38241-Z22-E31

PROTECTOR, CIRCUIT (30A)

$88.99

$

Usually ships in 3-6 days

0

17

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

18

Honda 38530-Z22-D31

LED ASSY., INDICATER

$35.99

$

Usually ships in 3-6 days

0

19

Honda 90101-Z33-V20

SCREW, TRUSS (6X18) (TORX)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90102-Z33-V20

SCREW, TRUSS (6X30) (TORX)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 93500-03005-1A

SCREW, PAN (3X5)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 93913-15280

SCREW, TAPPING (5X12) (PO)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

28

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0
