EG4000CL AT (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-9999999) CARBURETOR Parts Diagram

Generator, Made in China

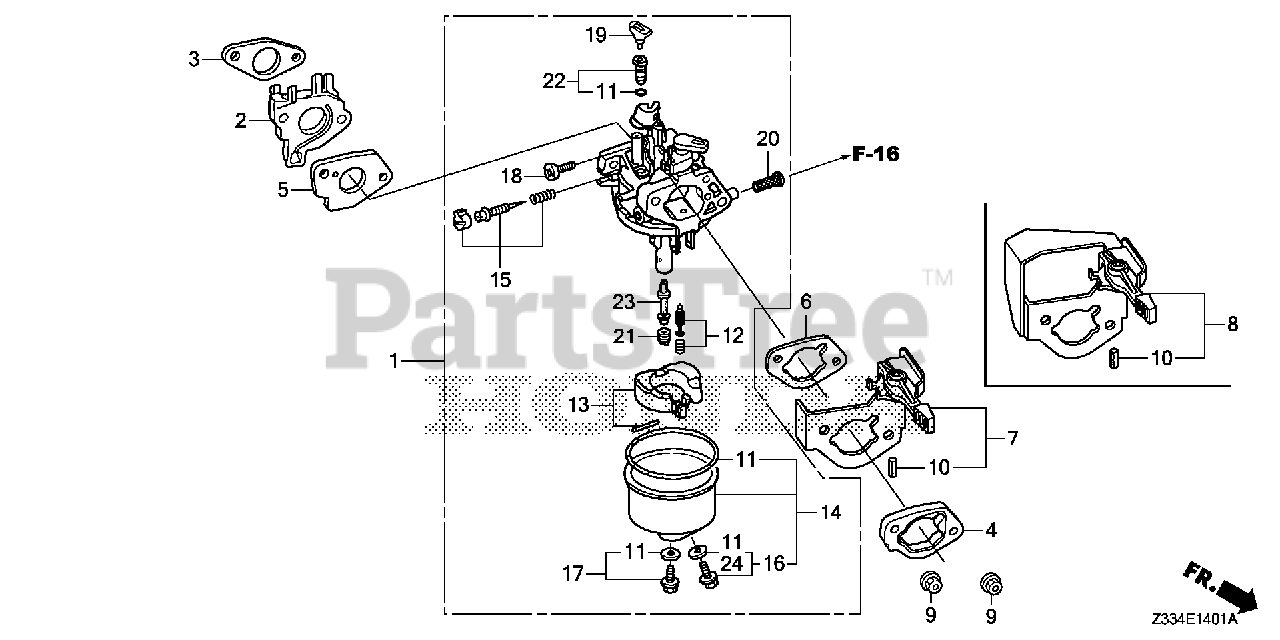

CARBURETOR Parts Diagram

  • Title

1

Honda 16100-Z1D-E22

CARBURETOR ASSY. (BE77Z A)

$47.99

$

In Stock, only 1 left!

0

2

Honda 16211-ZE2-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$9.49

$

In Stock, Qty 13

0

3

Honda 16212-Z5K-000

GASKET, INSULATOR

$0.99

$

In Stock, Qty 18

0

4

Honda 16220-ZA0-702

SPACER, CARBURETOR

$11.99

$

In Stock, Qty 20+

0

5

Honda 16221-Z5K-000

GASKET, CARBURETOR

$0.99

$

In Stock, Qty 20+

0

6

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 12

0

7

Honda 16620-Z1C-000

BASE, CHOKE

$100.99

$

Usually ships in 3-6 days

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

11

Honda 16010-ZF5-900

GASKET SET

$16.99

$

In Stock, only 2 left!

0

12

Honda 16011-ZA0-931

VALVE SET, FLOAT

$40.99

$

In Stock, only 3 left!

0

13

Honda 16013-Z1C-003

FLOAT SET

$39.99

$

Usually ships in 3-6 days

0

14

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

$41.99

$

Usually ships in 3-6 days

0

15

Honda 16016-ZH7-W01

SCREW SET, PILOT

$19.99

$

In Stock, only 4 left!

0

16

Honda 16024-ZE1-811

SCREW SET, DRAIN

$9.99

$

In Stock, only 4 left!

0

17

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$12.99

$

In Stock, only 3 left!

0

17

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$12.99

$

In Stock, only 3 left!

0

18

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$14.99

$

In Stock, only 2 left!

0

19

Honda 16172-ZE3-W10

COLLAR, SETTING

$9.99

$

Usually ships in 3-6 days

0

20

Honda 16176-Z2G-D51

SCREEN, FUEL STRAINER

$9.99

$

In Stock, Qty 12

0

21

Honda 99101-ZH8-0800

JET, MAIN (#80)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 99101-ZH8-0820

JET, MAIN (#82)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 99101-ZH8-0850

JET, MAIN (#85)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 99204-ZA0-0400

JET SET, PILOT (#40)

$21.99

$

Usually ships in 3-6 days

0

23

Honda 16166-Z1D-E21

NOZZLE, MAIN

$12.99

$

Usually ships in 3-6 days

0

24

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0
