EG4000CL AT (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-9999999) FUEL TANK Parts Diagram

Generator, Made in China

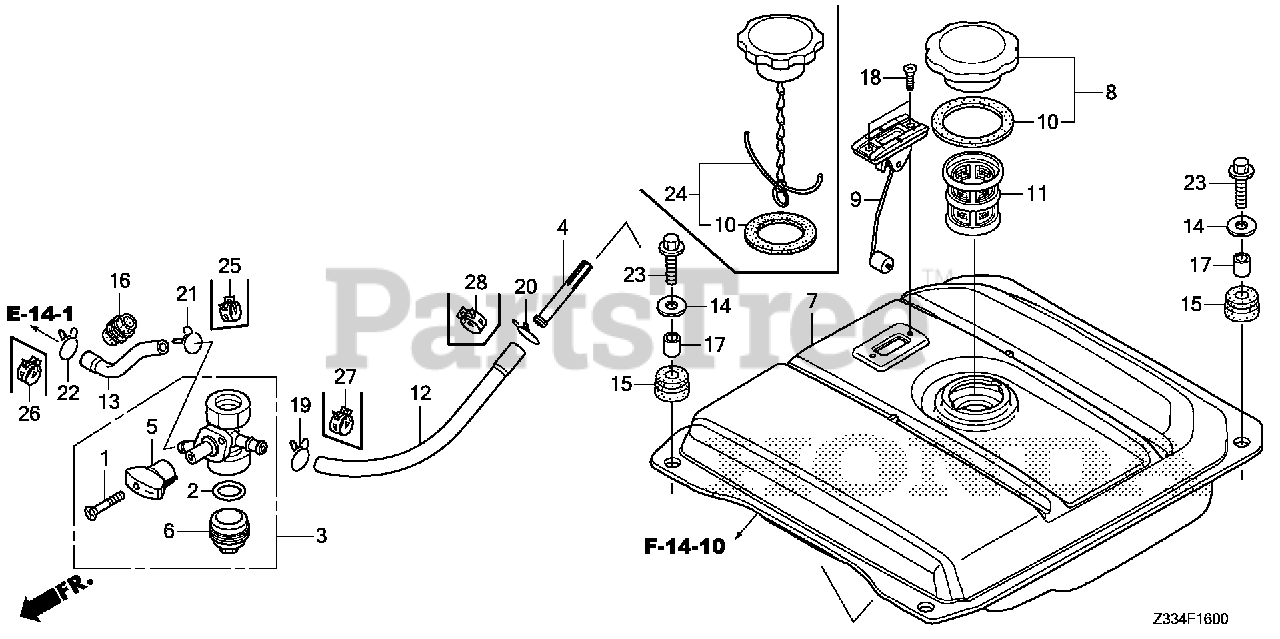

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-Z30-003

SCREW, OVAL

$2.49

$

In Stock, Qty 8

0

2

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.99

$

In Stock, Qty 20+

0

3

Honda 16950-Z30-003

PETCOCK ASSY.

$108.99

$

In Stock, only 2 left!

0

4

Honda 16952-ZA0-000

FILTER, FUEL

$17.99

$

In Stock, Qty 5

0

5

Honda 16963-Z30-003

LEVER, PETCOCK

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$34.99

$

In Stock, only 2 left!

0

7

Honda 17510-Z30-S31ZA

SEE PART DETAILS - PRI; TANK, FUEL *R280* (POWER RED)

$488.99

$

Usually ships in 3-6 days

0

9

Honda 17630-Z30-020

SEE PART DETAILS - PRI; METER ASSY., FUEL
(Superseded to 17630-Z30-030)

$21.99

$

Usually ships in 3-6 days

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.99

$

In Stock, only 3 left!

0

11

Honda 17670-Z25-R30

FILTER, FUEL

$19.99

$

In Stock, Qty 8

0

12

Honda 17701-Z33-S31

TUBE, FUEL TANK (FKM)
(Superseded to 17701-Z33-S32)

$

$

Not available

13

Honda 17702-Z30-S31

TUBE, FUEL (FKM)
(Superseded to 17702-Z30-S33)

$

$

Not available

14

Honda 90501-Z15-000

WASHER (6MM)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90851-898-000

RUBBER, TANK CUSHION

$6.49

$

In Stock, only 1 left!

0

16

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

$4.99

$

In Stock, Qty 11

0

17

Honda 91551-898-000

COLLAR, TANK CUSHION

$6.49

$

Usually ships in 3-6 days

0

18

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 10

0

23

Honda 95701-06022-07

BOLT, FLANGE (6X22)

$1.49

$

In Stock, only 2 left!

0

24

Honda 17620-Z30-S31

CAP, FUEL FILLER
(Superseded to 17620-Z30-S32)

$49.99

$

In Stock, only 2 left!

0

25

Honda 95002-40800-08

CLAMP, TUBE (D8)

$3.49

$

In Stock, only 3 left!

0

26

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.99

$

In Stock, Qty 5

0

27

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, Qty 20+

0

28

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.99

$

In Stock, only 1 left!

0
