EG4000CL AT1 (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-1499999) CONTROL PANEL (EG4000CL-AT,AT1,AT1/A) Parts Diagram

Generator, Made in China

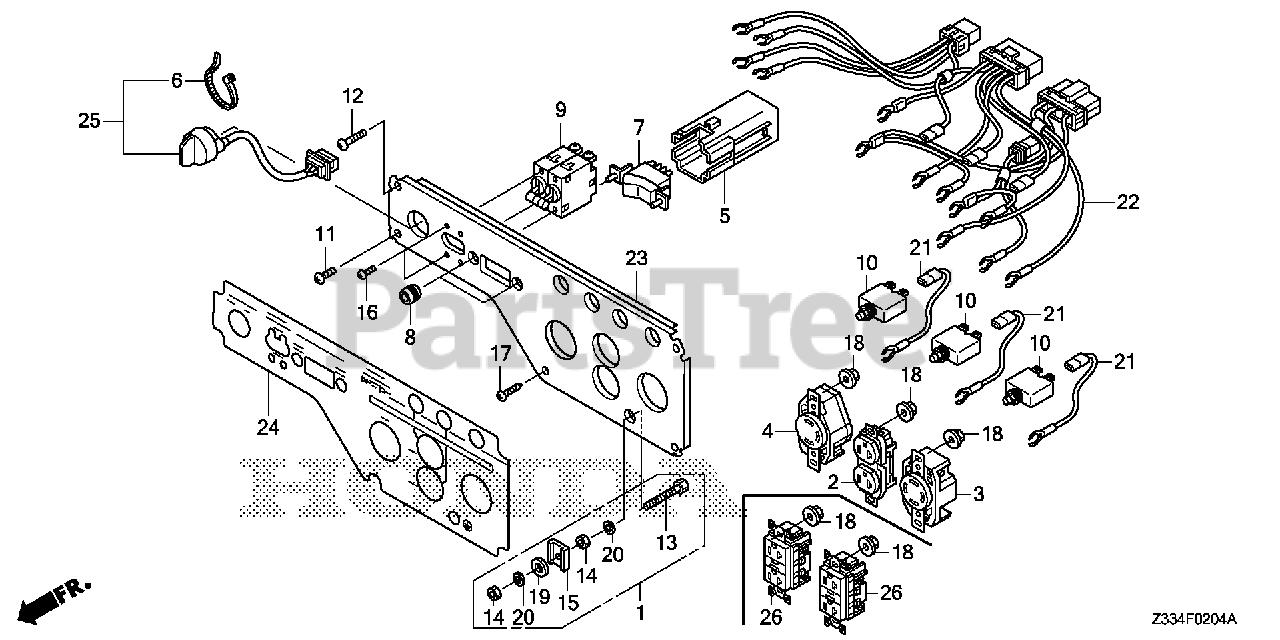

CONTROL PANEL (EG4000CL-AT,AT1,AT1/A) Parts Diagram

  • Title

1

Honda 31428-Z22-000

TERMINAL SET, GROUND

$8.49

$

Usually ships in 3-6 days

0

3

Honda 32332-Z21-E31

RECEPTACLE (20A-125/250V)

$84.99

$

Usually ships in 3-6 days

0

4

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$83.99

$

Usually ships in 3-6 days

0

5

Honda 32395-Z30-S32

CONNECTOR (12P)

$106.99

$

Usually ships in 3-6 days

0

6

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 35320-Z30-B41

SWITCH ASSY., VOLT CHANGE

$100.99

$

Usually ships in 3-6 days

0

8

Honda 35322-Z30-000

MOUNT, VOLT CHANGE SWITCH

$3.99

$

Usually ships in 3-6 days

0

9

Honda 38220-Z33-D41

BREAKER, CIRCUIT (17A)

$132.99

$

Usually ships in 3-6 days

0

10

Honda 38240-Z22-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$88.99

$

In Stock, only 1 left!

0

11

Honda 90101-Z15-000

SCREW, TRUSS (6X18)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 90101-Z30-000

SCREW, TRUSS (6X30)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 93500-03005-1A

SCREW, PAN (3X5)

$0.99

$

Usually ships in 3-6 days

0

17

Honda 93913-15280

SCREW, TAPPING (5X12) (PO)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-04000

NUT, FLANGE (4MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

20

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 32101-Z30-C40

SUB-WIRE ASSY.

$6.49

$

Usually ships in 3-6 days

0

22

Honda 32150-Z33-V30

WIRE HARNESS ASSY., CONTROL

$185.99

$

Usually ships in 3-6 days

0

23

Honda 32345-Z30-V30ZA

PANEL, CONTROL *NH105* (MAT BLACK)

$198.99

$

Usually ships in 3-6 days

0

24

Honda 32366-Z33-V30

MARK, PANEL

$108.99

$

Usually ships in 3-6 days

0

25

Honda 35120-Z30-802

SWITCH ASSY., ENGINE STOP

$32.99

$

Usually ships in 3-6 days

0

26

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)

$

$

Not available
