EG4000CL AT1 (EBGC) - Honda Generator, Made in China (SN: EBGC-1000001 - EBGC-1499999) CRANKCASE COVER Parts Diagram

Generator, Made in China

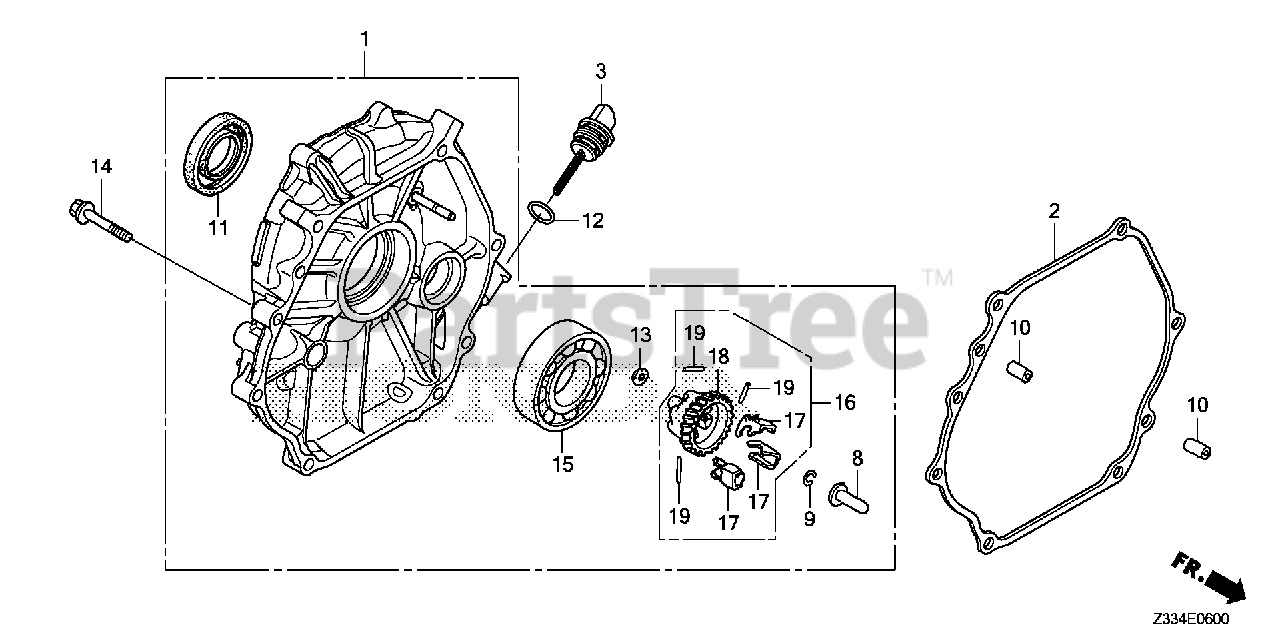

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z1D-E20

COVER ASSY., CRANKCASE

$189.99

$

Usually ships in 3-6 days

0

2

Honda 11381-Z5K-000

GASKET, CASE COVER

$6.49

$

Usually ships in 3-6 days

0

3

Honda 15620-ZE2-700

CAP, OIL FILLER

$7.99

$

In Stock, only 1 left!

0

8

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.49

$

In Stock, Qty 6

0

9

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 13

0

10

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 91201-Z1D-003

OIL SEAL (30X46X8) (NOK ASIA)

$11.99

$

In Stock, only 2 left!

0

12

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

In Stock, only 2 left!

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

15

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$28.99

$

Usually ships in 3-6 days

0

16

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$29.99

$

In Stock, only 1 left!

0

17

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.49

$

Usually ships in 3-6 days

0

18

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$17.99

$

Usually ships in 3-6 days

0

19

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0
