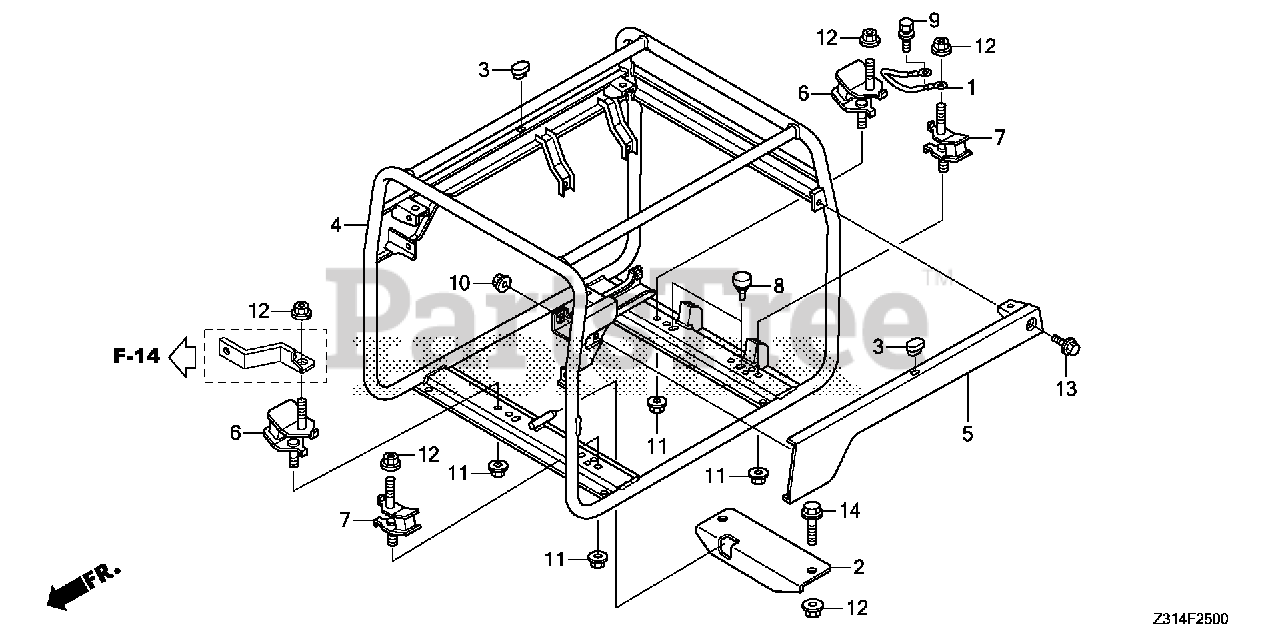

EG5000CL AT (EBEC) - Honda Generator, Made in China (SN: EBEC-1000001 - EBEC-9999999) FRAME Parts Diagram

Generator, Made in China

FRAME Parts Diagram

  • Title

1

Honda 32610-ZD1-A40

CABLE, SUB-GROUND

$7.49

$

Usually ships in 3-6 days

0

2

Honda 50138-Z18-000

BRACKET, STOPPER

$30.99

$

Usually ships in 3-6 days

0

3

Honda 50153-ZR6-000

RUBBER, FUEL TANK MOUNTING

$5.99

$

Usually ships in 3-6 days

0

4

Honda 50310-Z31-305ZA

FRAME *NH105* (CL)(COO) (MAT BLACK)

$551.99

$

Usually ships in 3-6 days

0

5

Honda 50315-Z30-305ZA

FRAME, R. SIDE *NH105* (COO)(FOR U.S.A.) (MAT BLACK)

$75.99

$

Usually ships in 3-6 days

0

6

Honda 68325-Z22-E30

RUBBER (LOWER)

$23.99

$

In Stock, only 1 left!

0

7

Honda 68325-Z23-E30

RUBBER (LOWER)

$23.99

$

In Stock, only 1 left!

0

8

Honda 68331-Z18-000

RUBBER, BUMP STOP

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

13

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 18

0

14

Honda 95701-10040-00

BOLT, FLANGE (10X40)

$1.99

$

In Stock, only 4 left!

0
