EG5000CL AT1/A (EBEC) - Honda Generator, Made in China (SN: EBEC-1500001 - EBEC-9999999) WHEEL KIT (2-WHEELS) Parts Diagram

Generator, Made in China

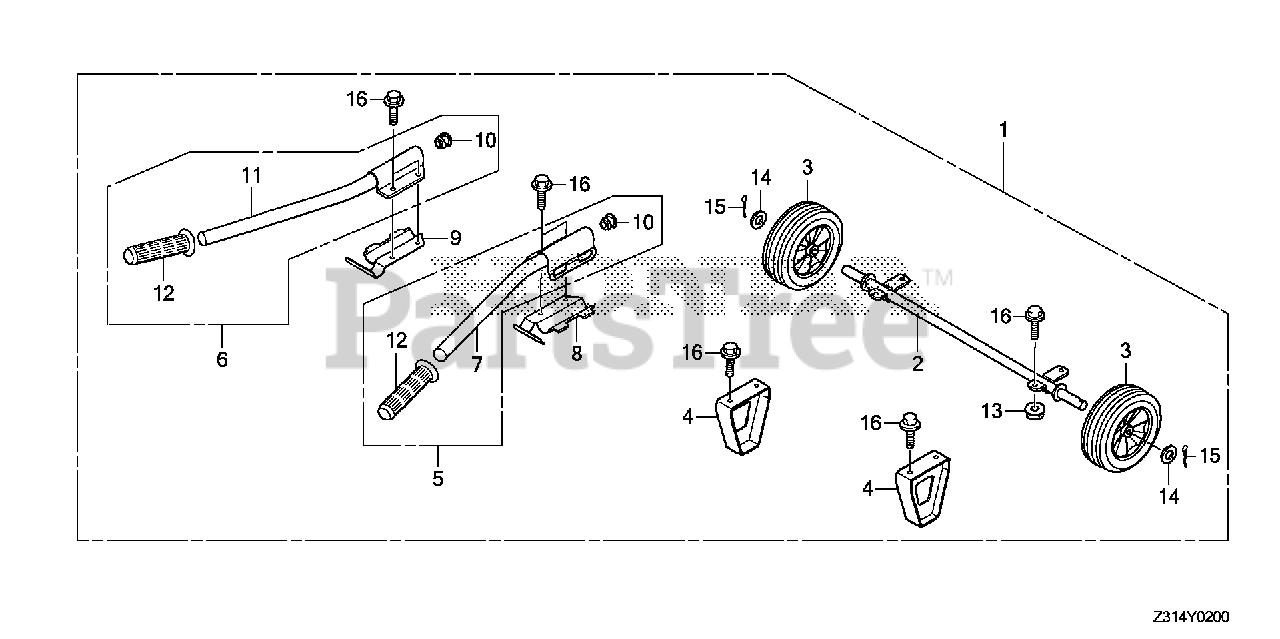

WHEEL KIT (2-WHEELS) Parts Diagram

  • Title

1

Honda 06710-Z22-A40ZA

WHEEL KIT (2-WHEELS) *NH105* (MAT BLACK)

Note: (Optional).

$258.99

$

Usually ships in 3-6 days

0

2

Honda 42310-Z22-E30ZA

SHAFT, WHEEL *NH105* (MAT BLACK)

Note: (Optional).

$87.99

$

Usually ships in 3-6 days

0

3

Honda 42710-Z22-305

WHEEL (254X63.5) (COO)(FOR U.S.A.)
(Superseded to 42710-Z22-621)

Note: (Optional).

$

$

Not available

4

Honda 51511-Z22-E30ZA

STAND *NH105* (MAT BLACK)

Note: (Optional).

$39.99

$

In Stock, only 2 left!

0

5

Honda 53100-Z22-000ZA

HANDLE ASSY., R. (UPPER) *NH105* (MAT BLACK)

Note: (Optional).

$149.99

$

Usually ships in 3-6 days

0

6

Honda 53105-Z22-000ZA

HANDLE ASSY., L. (UPPER) *NH105* (MAT BLACK)

Note: (Optional).

$149.99

$

Usually ships in 3-6 days

0

7

Honda 53110-Z22-000ZA

HANDLE, R. (UPPER) *NH105* (MAT BLACK)

Note: (Optional).

$136.99

$

Usually ships in 3-6 days

0

8

Honda 53112-Z22-000ZA

BRACKET, R. HANDLE (LOWER) *NH105* (MAT BLACK)

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

9

Honda 53113-Z22-000ZA

BRACKET, L. HANDLE (LOWER) *NH105* (MAT BLACK)

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

10

Honda 53115-Z22-000

CAP, HANDLE (LOWER)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 53120-Z22-000ZA

HANDLE, L. (UPPER) *NH105* (MAT BLACK)

Note: (Optional).

$136.99

$

Usually ships in 3-6 days

0

12

Honda 53165-Z22-000

GRIP, HANDLE

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

13

Honda 94050-08070

NUT, FLANGE (8MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94102-20000

WASHER, PLAIN (20MM)

Note: (Optional).

$1.49

$

In Stock, Qty 8

0

15

Honda 94201-40280

PIN, SPLIT (4.0X28)

Note: (Optional).

$1.49

$

In Stock, Qty 5

0

15

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

Note: (Optional).

$1.49

$

In Stock, Qty 5

0

16

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.99

$

In Stock, only 3 left!

0
