EG650 A/A (G100) - Honda Generator, Made in Japan (SN: G100-2000001 - G100-2424874) EG650 PISTON + CONNECTING ROD Parts Diagram

Generator, Made in Japan

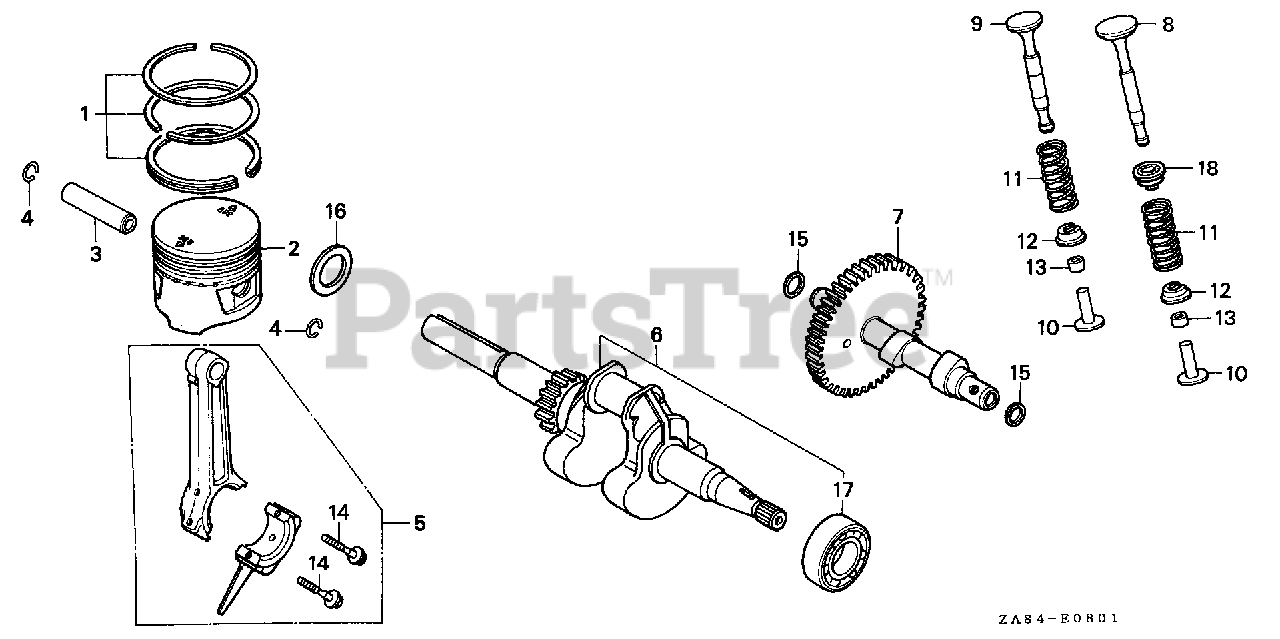

EG650 PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZG0-003

RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-ZG0-003

RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13012-ZG0-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13012-ZG0-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$

$

Currently unavailable

1

Honda 13013-ZG0-003

RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-ZG0-003

PISTON (STD)

$27.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZG0-003

PISTON (OS 0.25)

$48.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZG0-003

PISTON (OS 0.50)

$44.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZG0-003

PISTON (0.75)

$

$

Not available

3

Honda 13111-892-000

PIN, PISTON

$8.49

$

In Stock, only 1 left!

0

4

Honda 13115-147-000

CLIP, PISTON PIN (10MM)

$3.49

$

In Stock, only 2 left!

0

5

Honda 13200-ZG0-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$89.99

$

Usually ships in 3-6 days

0

5

Honda 13200-ZG0-305

ROD ASSY., CONNECTING (US)

$54.99

$

Usually ships in 3-6 days

0

6

Honda 13310-ZG0-801

CRANKSHAFT

$

$

Not available

7

Honda 14111-ZC0-000

SEE PART DETAILS - PRI; CAMSHAFT

$

$

Not available

8

Honda 14711-ZG0-000

SEE PART DETAILS - SUP; VALVE, IN.
(Superseded to 14711-ZV0-010)

$

$

Not available

8

Honda 14711-ZV0-000

SEE PART DETAILS - SUP; VALVE, IN.
(Superseded to 14711-ZV0-010)

$

$

Not available

9

Honda 14721-ZG0-000

SEE PART DETAILS - SUP; VALVE, EX.
(Superseded to 14721-ZV0-000)

$

$

Not available

9

Honda 14721-ZV0-000

SEE PART DETAILS - PRI; VALVE, EX.

$

$

Not available

10

Honda 14732-ZC0-000

SEE PART DETAILS - SUP; LIFTER, VALVE

$21.99

$

Usually ships in 3-6 days

0

10

Honda 14732-ZG0-000

SEE PART DETAILS - SUP; LIFTER, VALVE

Note: Use up to Engine SN 2063201.

$

$

Currently unavailable

11

Honda 14751-896-000

SPRING, VALVE

$4.99

$

In Stock, only 1 left!

0

12

Honda 14771-ZG0-000

RETAINER, VALVE SPRING

$6.49

$

In Stock, only 1 left!

0

13

Honda 14801-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14803-892-000

ADJUSTER, TAPPET CLEARANCE

$8.99

$

Usually ships in 3-6 days

0

13

Honda 14806-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14809-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14812-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14815-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14818-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 14820-892-000

ADJUSTER, TAPPET CLEARANCE

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90001-ZG0-000

BOLT, CONNECTING ROD

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90452-ZG0-000

WASHER (12MM)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90454-428-000

WASHER, THRUST (20X1.00)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$13.99

$

Usually ships in 3-6 days

0
