EG650 A2 (G100) - Honda Generator, Made in Japan (SN: G100-3000001 - G100-9999999) EG650 CYLINDER HEAD + CYLINDER Parts Diagram

Generator, Made in Japan

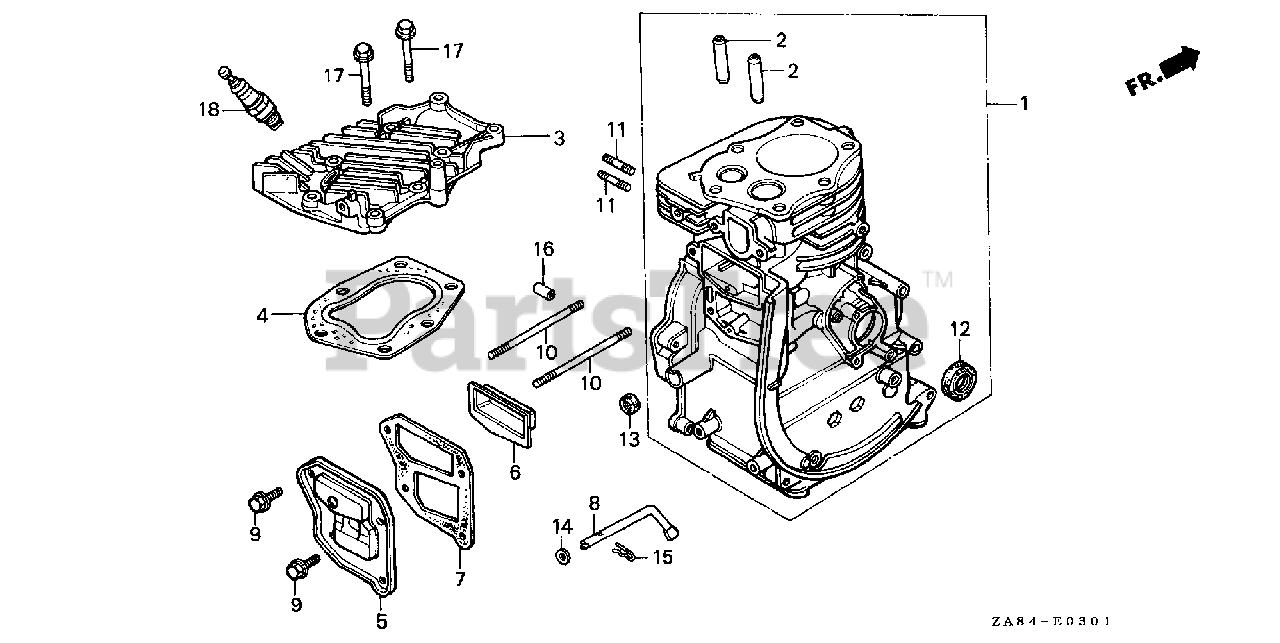

EG650 CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZG0-020

CYLINDER ASSY.

$520.99

$

Usually ships in 3-6 days

0

2

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$12.99

$

Usually ships in 3-6 days

0

3

Honda 12221-ZG0-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

4

Honda 12281-ZC0-003

GASKET, CYLINDER HEAD

$21.99

$

In Stock, only 2 left!

0

5

Honda 12361-ZG0-000

COVER, TAPPET ROOM

$

$

Not available

6

Honda 12370-ZG0-000

SEPARATOR (INNER)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 12375-ZG0-010

SEE PART DETAILS - PRI; GASKET, TAPPET COVER

$7.99

$

In Stock, only 2 left!

0

8

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

10

Honda 90041-896-000

BOLT, STUD (5X80)

$

$

Not available

11

Honda 90045-892-000

BOLT, STUD (6X28)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$14.99

$

Usually ships in 3-6 days

0

13

Honda 91231-816-000

OIL SEAL

$

$

Not available

14

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

15

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

16

Honda 94301-08140

PIN A, DOWEL (8X14)

$3.49

$

In Stock, only 3 left!

0

17

Honda 95801-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$1.49

$

In Stock, only 4 left!

0

18

Honda 98073-54776

SPARK PLUG (BPMR4A) (NGK)

$3.99

$

In Stock, Qty 8

0
