EGi-1200 - Echo Generator (SN: EGi-190628-A0000001 - EGi-190628-A9999999) Frame, Panels and Doors Parts Diagram

Generator

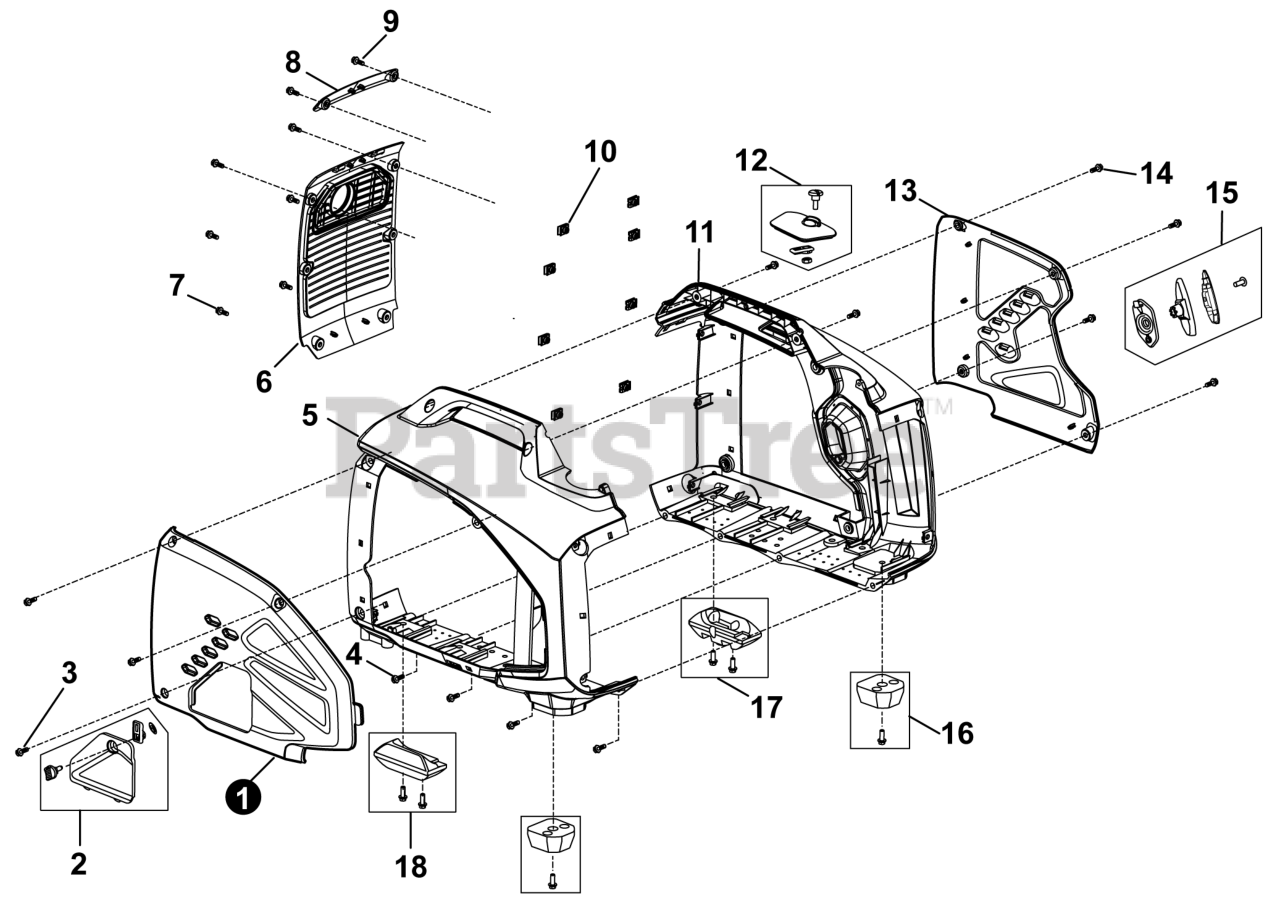

Frame, Panels and Doors Parts Diagram

  • Title

1

Echo YH479000180

PANEL, LEFT SIDE

$91.99

$

Usually ships in 2-4 days

0

2

Echo YH479000250

DOOR, LEFT MAINTENANCE

$22.99

$

Usually ships in 2-4 days

0

3

Echo YH435000080

BOLT

$9.49

$

Usually ships in 2-4 days

0

4

Echo YH435000080

BOLT

$9.49

$

Usually ships in 2-4 days

0

5

Echo YH479000200

HOUSING, LEFT SIDE

$77.99

$

Usually ships in 2-4 days

0

6

Echo YH479000230

COVER, MUFFLER SIDE

$23.99

$

Usually ships in 2-4 days

0

7

Echo YH435000090

BOLT

$11.99

$

Usually ships in 2-4 days

0

8

Echo YH479000240

PLATE, BRANDING

$12.99

$

Usually ships in 2-4 days

0

9

Echo YH435000090

BOLT

$11.99

$

Usually ships in 2-4 days

0

10

Echo YH450000050

NUT

$17.99

$

Usually ships in 2-4 days

0

11

Echo YH479000210

HOUSING, RIGHT SIDE

$80.99

$

Usually ships in 2-4 days

0

12

Echo YH479000220

DOOR, SPARK PLUG MAINTENANCE

$16.99

$

Usually ships in 2-4 days

0

13

Echo YH479000190

PANEL, RIGHT SIDE

$91.99

$

Usually ships in 2-4 days

0

14

Echo YH435000080

BOLT

$9.49

$

Usually ships in 2-4 days

0

15

Echo YH463000020

ROPE GUIDE ASSY., STARTING

$21.99

$

Usually ships in 2-4 days

0

16

Echo YH468000220

FOOT, FRAME SUPPORT

$33.99

$

Usually ships in 2-4 days

0

17

Echo YH468000240

FOOT, FRAME SUPPORT (RIGHT)

$33.99

$

Usually ships in 2-4 days

0

18

Echo YH468000230

FOOT, FRAME SUPPORT (LEFT)

$33.99

$

Usually ships in 2-4 days

0
