EGi-2300 (090930357) - Echo Digital Bluetooth Inverter Generator, Revision 05 (2023-05) FIGURE E Parts Diagram

Digital Bluetooth Inverter Generator, Revision 05

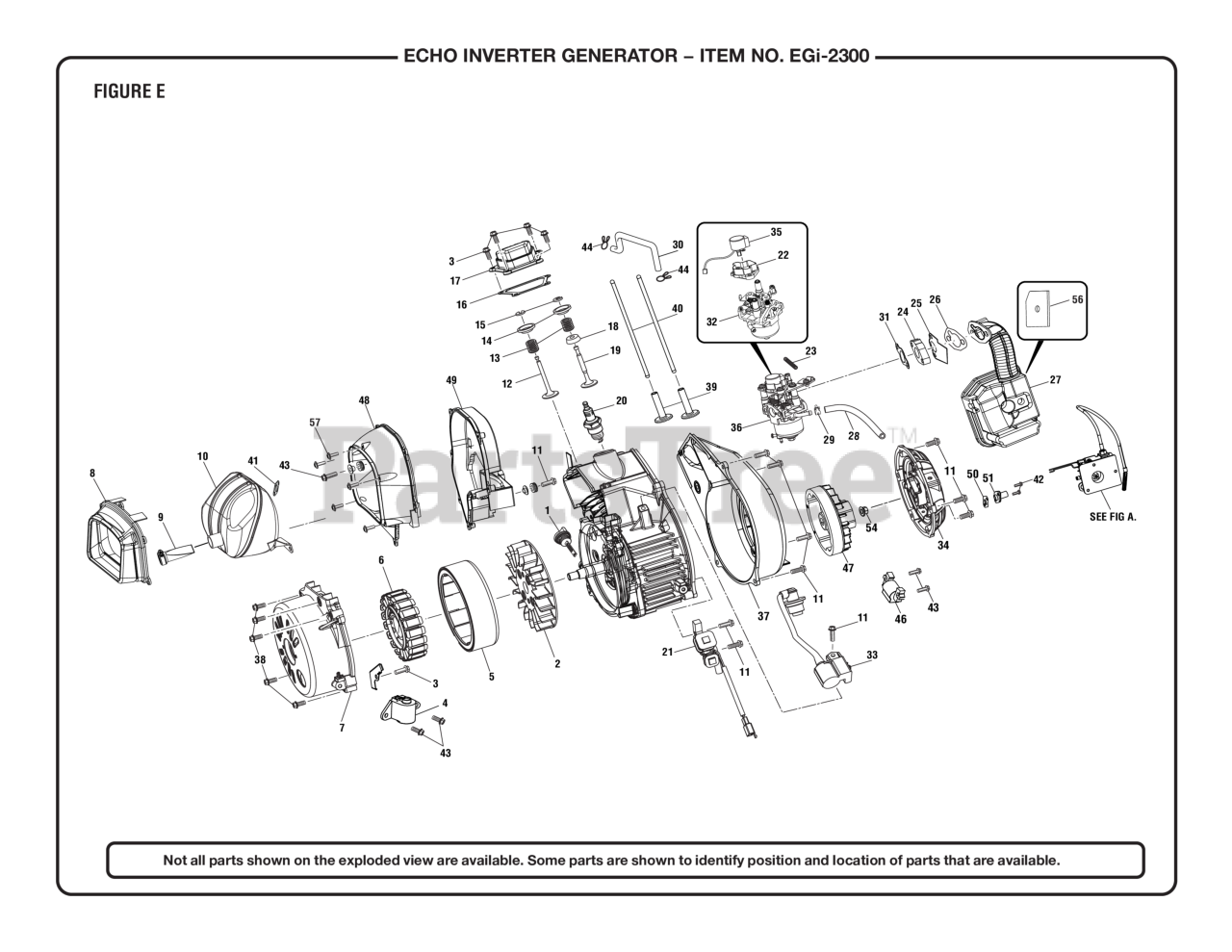

FIGURE E Parts Diagram

  • Title

1

Echo YH470000280

DIPSTICK, OIL

$3.99

$

Usually ships in 2-4 days

0

2

Echo YH472000020

FAN, ALTERNATOR COOLING

$10.99

$

Usually ships in 2-4 days

0

3

Echo YH435000570

BOLT

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH327000110

SENSOR, LOW OIL

$19.99

$

Usually ships in 2-4 days

0

5

Echo YH315000010

ROTOR

$119.99

$

Usually ships in 2-4 days

0

6

Echo YH315000020

STATOR

$171.99

$

Usually ships in 2-4 days

0

7

Echo YH479000670

COVER, ALTERNATOR

$38.99

$

Usually ships in 2-4 days

0

8

Echo YH468001810

Muffler Heat Shield

$

$

Currently unavailable

9

Echo YH460000091

Spark Arrestor

$13.99

$

Usually ships in 2-4 days

0

10

Echo YH460000080

MUFFLER

$101.99

$

Usually ships in 2-4 days

0

11

Echo YH435000590

BOLT

$0.99

$

Usually ships in 2-4 days

0

12

Echo YH458001030

VALVE, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

13

Echo YH458001050

SPRING, VALVE

$2.49

$

Usually ships in 2-4 days

0

14

Echo YH458001060

PLATE, VALVE SPRING SEAT

$2.99

$

Usually ships in 2-4 days

0

15

Echo YH458001070

CLAMP, VALVE LOCK

$2.99

$

Usually ships in 2-4 days

0

16

Echo YH468001240

GASKET, VALVE COVER

$3.49

$

Usually ships in 2-4 days

0

17

Echo YH458001080

COVER, VALVE

$8.49

$

Usually ships in 2-4 days

0

18

Echo YH458001040

SEAT, INTAKE VALVE SPRING

$3.49

$

Usually ships in 2-4 days

0

19

Echo YH458001020

VALVE, INTAKE

$12.99

$

Usually ships in 2-4 days

0

20

Echo YH461000250

PLUG, SPARK

$11.99

$

In Stock, only 1 left!

0

21

Echo YH327000070

SENSOR, RPM

$21.99

$

Usually ships in 2-4 days

0

22

Echo YH479000590

HOUSING, GOVERNOR MOTOR

$93.99

$

Usually ships in 2-4 days

0

23

Echo YH458000440

SPRING, COMPRESSION

$0.99

$

Usually ships in 2-4 days

0

24

Echo YH468001260

THERMAL INSULATOR, CARB

$2.99

$

Usually ships in 2-4 days

0

25

Echo YH468001270

GASKET

$0.99

$

Usually ships in 2-4 days

0

26

Echo YH468001280

GASKET, AIR-BOX

$0.99

$

Usually ships in 2-4 days

0

27

Echo YH465000110

ASSY., AIR FILTER

$160.99

$

In Stock, only 2 left!

0

28

Echo YH467000240

HOSE, FUEL

$6.49

$

Usually ships in 2-4 days

0

29

Echo YH452000140

CLAMP, FUEL LINE

$1.99

$

Usually ships in 2-4 days

0

30

Echo YH467000640

BREATHER

$25.99

$

Usually ships in 2-4 days

0

31

Echo YH468001250

GASKET, CONNECTION BLOCK

$0.99

$

Usually ships in 2-4 days

0

32

Echo YH459000100

CARBURETOR

$87.99

$

Usually ships in 2-4 days

0

33

Echo YH461000130

COIL, IGNITION

$44.99

$

Usually ships in 2-4 days

0

34

Echo YH463000080

ASSY., RECOIL STARTER

$28.99

$

Usually ships in 2-4 days

0

35

Echo YH313000000

MOTOR, GOVERNOR

$18.99

$

Usually ships in 2-4 days

0

36

Echo YH459000090

ASSY., CARBURETOR

$81.99

$

Usually ships in 2-4 days

0

37

Echo YH468001290

COVER, ENGINE

$22.99

$

Usually ships in 2-4 days

0

38

Echo YH435000580

BOLT

$0.99

$

Usually ships in 2-4 days

0

39

Echo YH458001000

LIFTER, VALVE

$3.99

$

Usually ships in 2-4 days

0

40

Echo YH458001010

ROD, PUSH

$3.99

$

Usually ships in 2-4 days

0

41

Echo YH468001300

GASKET, MUFFLER

$1.99

$

Usually ships in 2-4 days

0

42

Echo YH435000720

BOLT

$1.99

$

Usually ships in 2-4 days

0

43

Echo YH435000730

BOLT

$1.99

$

Usually ships in 2-4 days

0

44

Echo YH452000620

CLIP

$1.49

$

Usually ships in 2-4 days

0

45

Echo YH467000470

BREATHER, ENGINE HOSE

$2.49

$

Usually ships in 2-4 days

0

46

Echo YH602000010

ASSY., ENGINE

$503.99

$

Usually ships in 2-4 days

0

47

Echo YH461000280

FLYWHEEL

$89.99

$

Usually ships in 2-4 days

0

48

YH479002340

Muffler Cover (1)

$

$

Not available

49

YH479002330

Muffler Cover (2)

$

$

Not available

50

Echo YH468001510

OIL RING

$8.49

$

Usually ships in 2-4 days

0

51

Echo YH479001840

FLANGE

$19.99

$

Usually ships in 2-4 days

0

52

Echo YH470000910

ASSY., FILL VALVE

$32.99

$

Usually ships in 2-4 days

0

53

Echo YH468001650

SEAL, OIL

$17.99

$

Usually ships in 2-4 days

0

54

Echo YH450000450

NUT, FLYWHEEL

$2.99

$

Usually ships in 2-4 days

0

55

Echo YH435000370

BOLT, CYLINDER HEAD

$8.99

$

Usually ships in 2-4 days

0

56

Echo YH465000210

FILTER, AIR

$4.99

$

Usually ships in 2-4 days

0

57

Echo YH415000810

SCREW

$2.99

$

Usually ships in 2-4 days

0

58

Echo YH468001660

GASKET, CYLINDER HEAD

$15.99

$

Usually ships in 2-4 days

0

59

Echo YH458000360

HEAD, CYLINDER

$96.99

$

Usually ships in 2-4 days

0

60

Echo YH458000370

ASSY., INTAKE ROCKER ARM

$22.99

$

Usually ships in 2-4 days

0

61

Echo YH458000380

ASSY., EXHAUST ROCKER ARM

$22.99

$

Usually ships in 2-4 days

0

62

Echo YH458000390

SHAFT, ROCKER ARM

$10.99

$

Usually ships in 2-4 days

0

63

Echo YH452000740

STUD, INTAKE

$10.99

$

Usually ships in 2-4 days

0

64

Echo YH452000750

STUD, EXHAUST

$11.99

$

Usually ships in 2-4 days

0
