EGi-3600 - Echo Generator (SN: EGi-200268-A0000001 - EGi-200268-A9999999) HOUSING BASE, INVERTER, AND BATTERY Parts Diagram

Generator

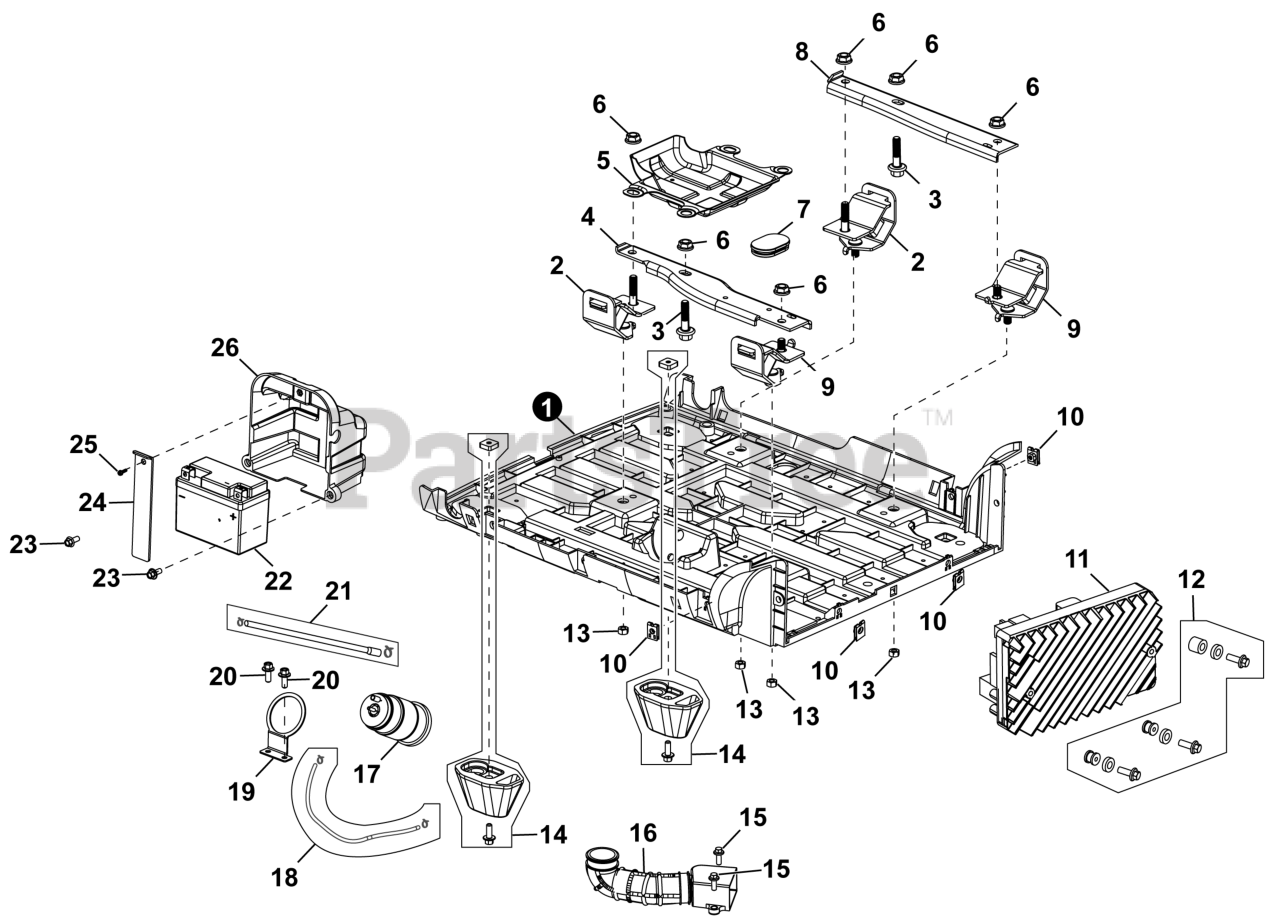

HOUSING BASE, INVERTER, AND BATTERY Parts Diagram

  • Title

1

Echo YH479002150

HOUSING, BASE

$165.99

$

Usually ships in 2-4 days

0

2

Echo YH468001580

MOUNT, RIGHT ENGINE

$27.99

$

Usually ships in 2-4 days

0

3

Echo YH435000270

BOLT

$11.99

$

Usually ships in 2-4 days

0

4

Echo YH466000460

BRACKET, LEFT SUPPORT

$18.99

$

Usually ships in 2-4 days

0

5

Echo YH468001610

DEFLECTOR, CRANKCASE AIR

$12.99

$

Usually ships in 2-4 days

0

6

Echo YH450000370

NUT

$4.99

$

Usually ships in 2-4 days

0

7

Echo YH468001570

PLUG, END

$4.49

$

Usually ships in 2-4 days

0

8

Echo YH466000470

BRACKET, RIGHT SUPPORT

$18.99

$

Usually ships in 2-4 days

0

9

Echo YH468001590

MOUNT, LEFT ENGINE

$27.99

$

Usually ships in 2-4 days

0

10

Echo YH450000240

NUT

$4.49

$

Usually ships in 2-4 days

0

11

Echo YH315000100

INVERTOR

$746.99

$

Usually ships in 2-4 days

0

12

Echo YH468001600

KIT, INVERTER MOUNT

$16.99

$

Usually ships in 2-4 days

0

13

Echo YH450000370

NUT

$4.99

$

Usually ships in 2-4 days

0

14

Echo YH468001560

FEET, FRAME

$27.99

$

Usually ships in 2-4 days

0

15

Echo YH435000190

BOLT

$3.99

$

Usually ships in 2-4 days

0

16

Echo YH467000610

DUCT, AIR CLEANER INTAKE

$15.99

$

Usually ships in 2-4 days

0

17

Echo YH481000050

CANNISTER, VAPOR

$74.99

$

Usually ships in 2-4 days

0

18

Echo YH467000620

HOSE, AIR CLEANER

$7.99

$

Usually ships in 2-4 days

0

19

Echo YH468001620

BRACKET, CANNISTER

$12.99

$

Usually ships in 2-4 days

0

20

Echo YH435000140

BOLT

$4.99

$

Usually ships in 2-4 days

0

21

Echo YH467000630

HOSE, FUEL VAPOR

$8.49

$

Usually ships in 2-4 days

0

22

Echo YH300000010

BATTERY

$209.99

$

Usually ships in 2-4 days

0

23

Echo YH435000190

BOLT

$3.99

$

Usually ships in 2-4 days

0

24

Echo YH452000730

CLAMP, BATTERY

$21.99

$

Usually ships in 2-4 days

0

25

Echo YH435000140

BOLT

$4.99

$

Usually ships in 2-4 days

0

26

Echo YH479002160

CASE, BATTERY

$12.99

$

Usually ships in 2-4 days

0
