EGR 6000 E - Shindaiwa Generator Crankshaft, Piston Parts Diagram

Generator

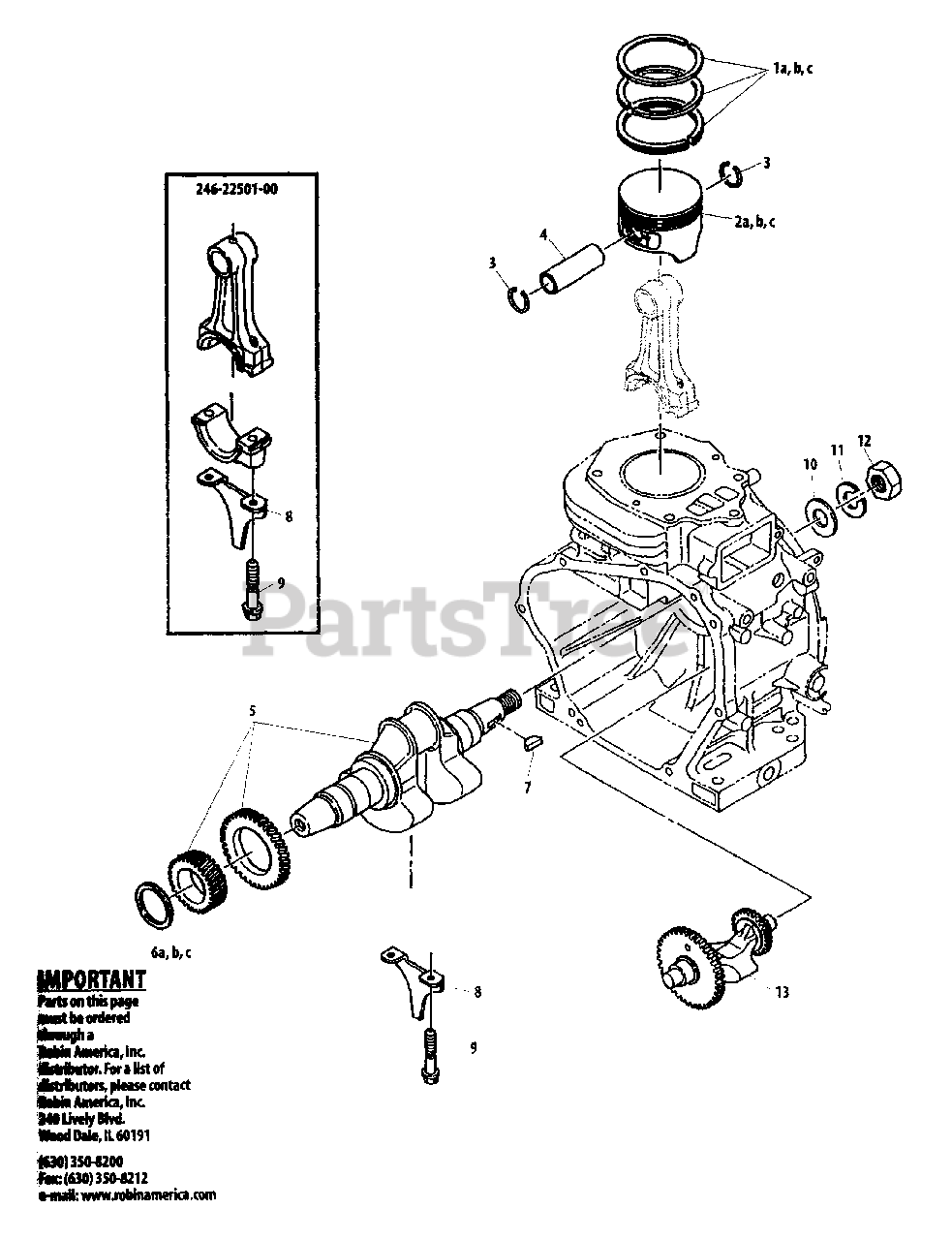

Crankshaft, Piston Parts Diagram

  • Title

1A

Echo 247-23501-17

PISTON RING SET

Note: (STD). (Robin America part number)

$

$

Currently unavailable

1B

Echo 247-23502-17

PISTON RING SET

Note: (Robin America part number)

$

$

Currently unavailable

1C

Echo 247-23503-17

PISTON RING SET

Note: (Robin America part number)

$

$

Currently unavailable

2A

Echo 247-23401-13

PISTON

Note: (STD). (Robin America part number)

$

$

Currently unavailable

2B

Echo 247-23402-13

PISTON

Note: (Robin America part number)

$

$

Currently unavailable

2C

Echo 247-23403-13

PISTON

Note: (Robin America part number)

$

$

Currently unavailable

3

Echo 056-52100-20

RING, RETAINING

Note: (Robin America part number)

$

$

Currently unavailable

4

Echo 246-23301-03

PIN, PISTON

Note: (Robin America part number)

$

$

Currently unavailable

5

Echo 246-20701-01

CRANKSHAFT ASSY

Note: (Robin America part number)

$

$

Currently unavailable

6A

Echo 023-03501-60

SPACER - 0.6

Note: (Robin America part number)

$

$

Currently unavailable

6B

Echo 023-03501-70

SPACER - 0.8

Note: (Robin America part number)

$

$

Currently unavailable

6C

Echo 023-03501-80

SPACER - 1

Note: (Robin America part number)

$

$

Currently unavailable

7

Echo 005-325054-01

KEY

$

$

Currently unavailable

8

Echo 246-23101-13

OIL SCRAPER

Note: (Robin America part number)

$

$

Currently unavailable

9

Echo 246-23001-03

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

10

Echo 003-10180-00

WASHER

Note: (Robin America part number)

$

$

Currently unavailable

11

Echo 003-20180-00

LOCKWASHER

Note: (Robin America part number)

$

$

Currently unavailable

12

Echo 002-18180-00

NUT

Note: (Robin America part number)

$

$

Currently unavailable

13

Echo 246-24102-23

SHAFT, BALANCER

Note: (Robin America part number)

$

$

Currently unavailable
