EGR 6000 E - Shindaiwa Generator Exhaust, Governor, Intake Parts Diagram

Generator

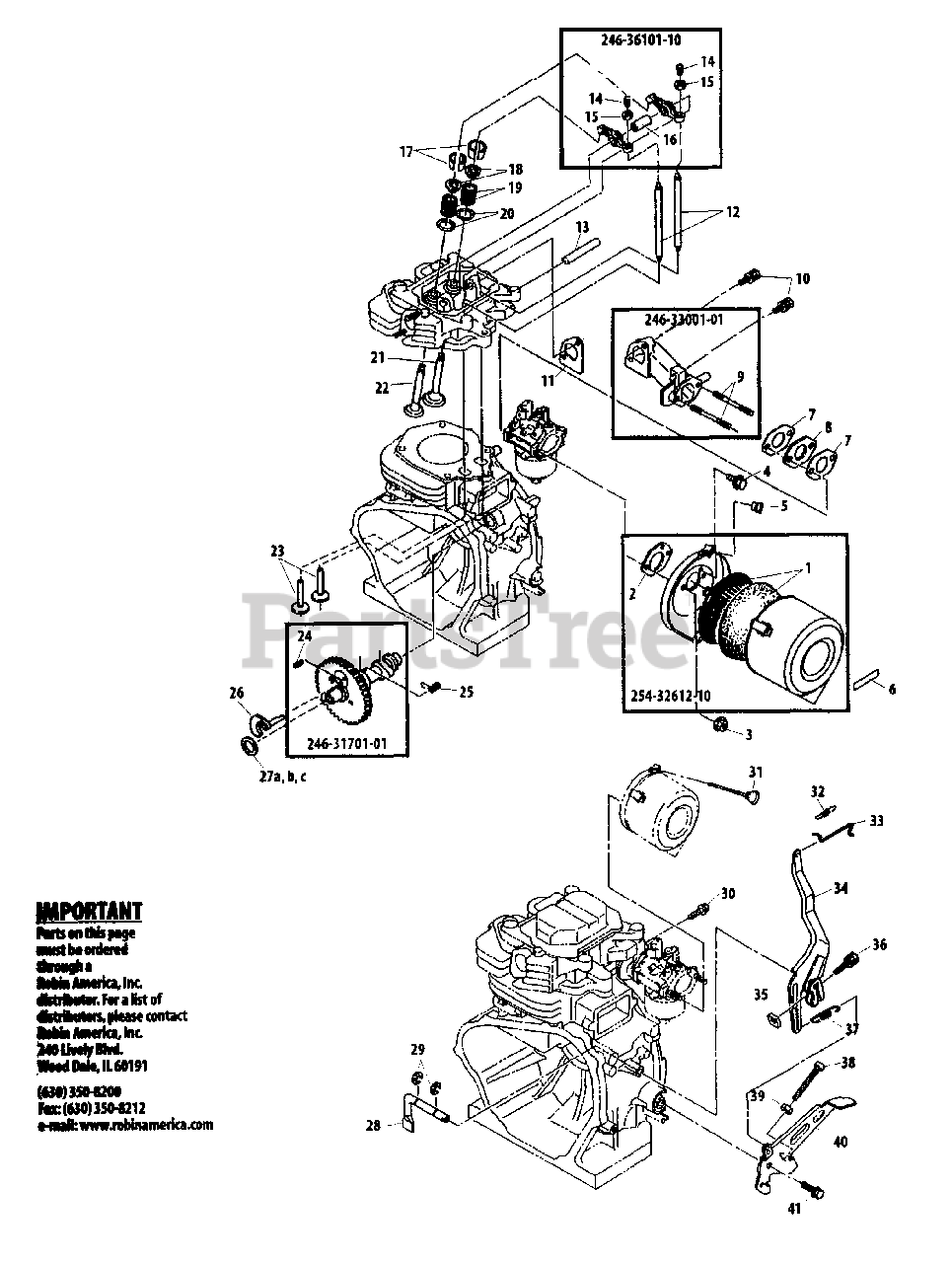

Exhaust, Governor, Intake Parts Diagram

  • Title

254-32612-10

Echo 254-32612-10

AIR CLEANER ASSY

Note: (Robin America part number)

$

$

Currently unavailable

1

Echo 234-32604-01

ELEMENT

Note: (Robin America part number)

$

$

Currently unavailable

2

Echo 234-36003-08

PACKING

Note: (Robin America part number)

$

$

Currently unavailable

3

Echo 002-38060-00

NUT - FLANGE

Note: (Robin America part number)

$

$

Currently unavailable

4

Echo 001-10061-20

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

5

Echo 207-32690-08

GROMMET

Note: (Robin America part number)

$

$

Currently unavailable

6

Echo 254-95302-13

LABEL

Note: (Robin America part number)

$

$

Currently unavailable

7

Echo 234-35902-03

GASKET, INTAKE

Note: (Robin America part number)

$

$

Currently unavailable

8

Echo 246-32901-03

INSULATOR

Note: (Robin America part number)

$

$

Currently unavailable

246-33001-01

Echo 246-33001-01

INTAKE PIPE ASSY

Note: (Robin America part number)

$

$

Currently unavailable

9

Echo 010-50602-30

STUD

Note: (Robin America part number)

$

$

Currently unavailable

10

Echo 001-13082-80

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

11

Echo 246-36001-13

GASKET

Note: (Robin America part number)

$

$

Currently unavailable

12

Echo 246-35300-11

PUSHROD

Note: (Robin America part number)

$

$

Currently unavailable

13

Echo 239-35001-03

SHAFT, ROCKER

Note: (Robin America part number)

$

$

Currently unavailable

246-36101-10

Echo 246-36101-10

ROCKER ARM ASSY

Note: (Robin America part number)

$

$

Currently unavailable

14

Echo 014-90800-21

SCREW, ADJUST

Note: (Robin America part number)

$

$

Currently unavailable

15

Echo 017-00800-90

NUT

Note: (Robin America part number)

$

$

Currently unavailable

16

Echo 246-36120-13

SPACER

Note: Not included in ASSY.. (Robin America part number)

$

$

Currently unavailable

17

Echo 246-35501-03

COLLET, VALVE

Note: (Robin America part number)

$

$

Currently unavailable

18

Echo 246-33711-03

RETAINER, SPRING

Note: (Robin America part number)

$

$

Currently unavailable

19

Echo 246-33611-03

SPRING, VALVE

Note: (Robin America part number)

$

$

Currently unavailable

20

Echo 020-02000-10

WASHER

Note: (Robin America part number)

$

$

Currently unavailable

21

Echo 246-33411-03

VALVE, INTAKE

Note: (Robin America part number)

$

$

Currently unavailable

22

Echo 246-33511-03

VALVE, EXHAUST

Note: (Robin America part number)

$

$

Currently unavailable

23

Echo 246-33301-03

TAPPET

Note: (Robin America part number)

$

$

Currently unavailable

246-31701-01

Echo 246-31701-01

CAMSHAFT ASSY

Note: (Robin America part number)

$

$

Currently unavailable

24

Echo 005-19041-00

PIN - SPRING

Note: (Robin America part number)

$

$

Currently unavailable

25

Echo 246-36701-03

SPRING, RETURN

Note: (Robin America part number)

$

$

Currently unavailable

26

Echo 246-36201-01

RELEASE LEVER

Note: (Robin America part number)

$

$

Currently unavailable

27A

Echo 023-02200-50

SPACER - 0.6

Note: (Robin America part number)

$

$

Currently unavailable

27B

Echo 023-02200-60

SPACER - 0.7

Note: (Robin America part number)

$

$

Currently unavailable

27C

Echo 023-02200-70

SPACER - 0.8

Note: (Robin America part number)

$

$

Currently unavailable

28

Echo 246-42201-23

GOVERNOR SHAFT

Note: (Robin America part number)

$

$

Currently unavailable

29

Echo 003-13060-00

CLIP

Note: (Robin America part number)

$

$

Currently unavailable

30

Echo 011-00600-10

BOLT - FLANGE

Note: (Robin America part number)

$

$

Currently unavailable

31

Echo 246-45006-01

KNOB

Note: (Robin America part number)

$

$

Currently unavailable

32

Echo 246-42801-13

ROD SPRING

Note: (Robin America part number)

$

$

Currently unavailable

33

Echo 234-42703-01

ROD

Note: (Robin America part number)

$

$

Currently unavailable

34

Echo 246-42304-01

LEVER, GOVERNOR

Note: (Robin America part number)

$

$

Currently unavailable

35

Echo 018-60600-20

NUT

Note: (Robin America part number)

$

$

Currently unavailable

36

Echo 001-14062-50

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

37

Echo 246-42501-23

GOVERNOR SPRING

Note: (Robin America part number)

$

$

Currently unavailable

38

Echo 004-31053-50

SCREW

Note: (Robin America part number)

$

$

Currently unavailable

39

Echo 002-17050-00

NUT

Note: (Robin America part number)

$

$

Currently unavailable

40

Echo 246-43301-13

SPEED CONTROL

Note: (Robin America part number)

$

$

Currently unavailable

41

Echo 001-10081-60

BOLT

Note: (Robin America part number)

$

$

Currently unavailable
