EGR 6000 E - Shindaiwa Generator Flywheel/Starter Parts Diagram

Generator

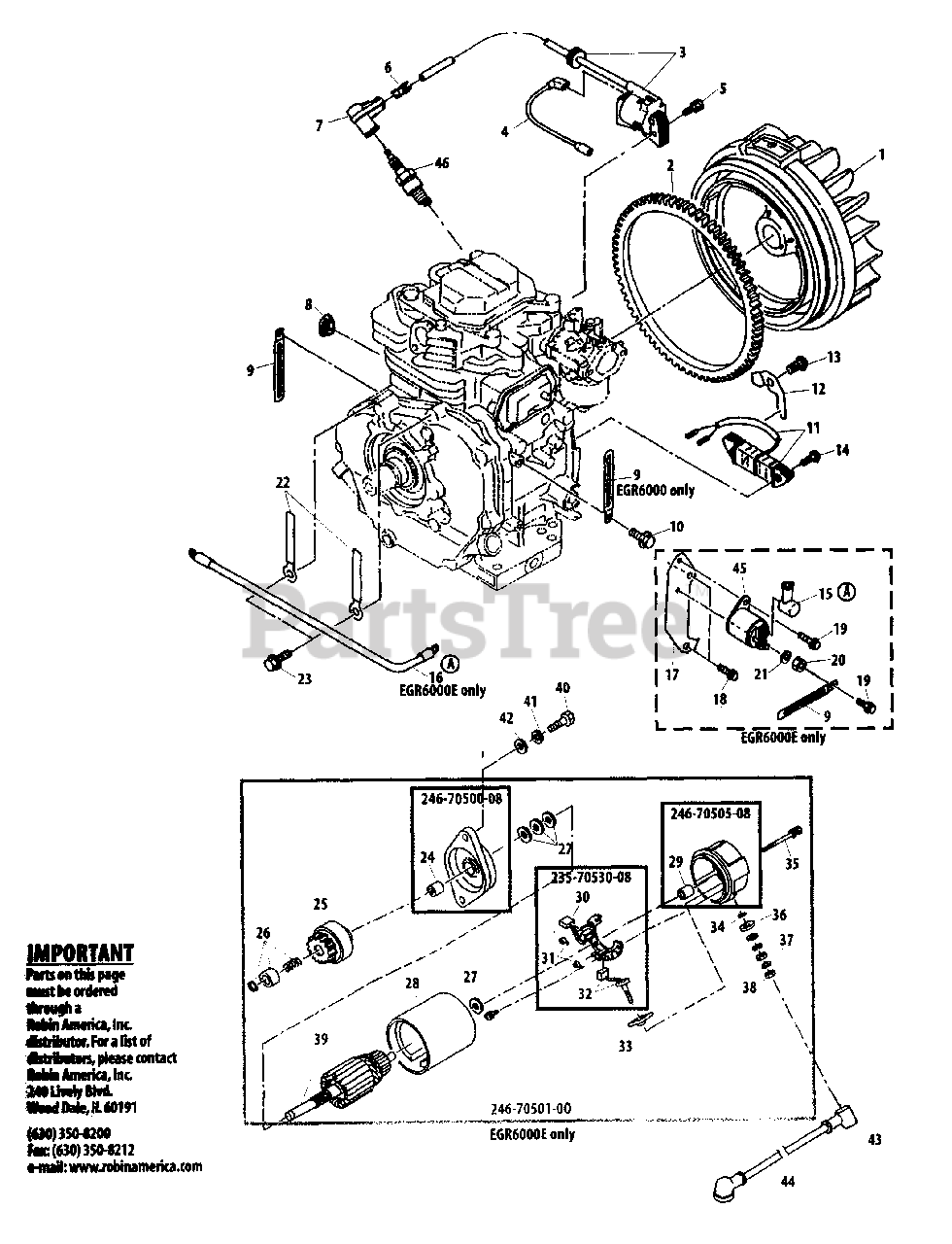

Flywheel/Starter Parts Diagram

  • Title

1

Echo 246-77204-01

FLYWHEEL

Note: (Robin America part number)

$

$

Currently unavailable

2

Echo 246-71002-03

RING GEAR

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

3

Echo 246-78201-21

IGNITION COIL ASSY

Note: (Robin America part number)

$

$

Currently unavailable

4

Echo 246-73101-01

WIRE

Note: (Robin America part number)

$

$

Currently unavailable

5

Echo 001-14063-00

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

6

Echo 065-90000-10

PLUG TERMINAL

Note: (Robin America part number)

$

$

Currently unavailable

7

Echo 065-50001-40

CAP, SPARK PLUG

Note: (Robin America part number)

$

$

Currently unavailable

8

Echo 226-75501-03

GROMMET

Note: (Robin America part number)

$

$

Currently unavailable

9

Echo 056-60002-50

CLAMP

Note: For model EGR6000 only. (Robin America part number)

$

$

Currently unavailable

10

Echo 011-00600-10

BOLT - FLANGE

Note: (Robin America part number)

$

$

Currently unavailable

11

Echo 246-79201-01

CHARGE COIL ASSY

Note: (Robin America part number)

$

$

Currently unavailable

12

Echo 246-75502-01

CLAMP

Note: (Robin America part number)

$

$

Currently unavailable

13

Echo 004-31060-80

SCREW

Note: (Robin America part number)

$

$

Currently unavailable

14

Echo 004-35062-00

SCREW

Note: (Robin America part number)

$

$

Currently unavailable

15

Echo 214-78501-03

WIRE CASING

Note: (Robin America part number)

$

$

Currently unavailable

16

Echo 246-73113-01

WIRE

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

17

Echo 246-76008-13

BRACKET

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

18

Echo 011-00600-10

BOLT - FLANGE

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

19

Echo 001-16051-00

BOLT

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

20

Echo 002-27060-00

NUT

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

21

Echo 003-20060-00

LOCKWASHER

Note: For model EGR6000E. (Robin America part number)

$

$

Currently unavailable

22

Echo 056-60002-60

CLAMP

Note: (Robin America part number)

$

$

Currently unavailable

246-70500-08

Echo 246-70500-08

FRONT COVER ASSY

Note: (Robin America part number)

$

$

Currently unavailable

23

UNKNOWN

$

$

Not available

24

Echo 214-70560-08

BUSHING

Note: (Robin America part number)

$

$

Currently unavailable

25

Echo 246-70521-08

GEAR - SHAFT

Note: (Robin America part number)

$

$

Currently unavailable

26

Echo 246-70571-08

STOPPER SET PINION

Note: (Robin America part number)

$

$

Currently unavailable

27

Echo 235-70555-08

WASHER

Note: (Robin America part number)

$

$

Currently unavailable

28

Echo 235-70560-08

FIELD HOUSING ASSY

Note: (Robin America part number)

$

$

Currently unavailable

246-70505-08

Echo 246-70505-08

REAR COVER ASSY

Note: (Robin America part number)

$

$

Currently unavailable

29

Echo 113-70510-08

BUSHING

Note: (Robin America part number)

$

$

Currently unavailable

235-70530-08

Echo 235-70530-08

HOLDER ASSY

Note: (Robin America part number)

$

$

Currently unavailable

30

Echo 235-70535-08

BRUSH - ( + )

Note: Not included in sub assy.. (Robin America part number)

$

$

Currently unavailable

31

Echo 235-70545-08

SPRING

Note: (Robin America part number)

$

$

Currently unavailable

32

Echo 235-70540-08

BRUSH - ( - )

Note: (Robin America part number)

$

$

Currently unavailable

33

Echo 235-70565-08

BRUSH

Note: (Robin America part number)

$

$

Currently unavailable

34

Echo 246-70580-08

O-RING

Note: (Robin America part number)

$

$

Currently unavailable

35

Echo 235-70575-08

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

36

Echo 235-70566-08

INSULATOR, BRUSH

Note: (Robin America part number)

$

$

Currently unavailable

37

Echo 003-20060-00

LOCKWASHER

Note: (Robin America part number)

$

$

Currently unavailable

38

Echo 002-27060-00

NUT

Note: (Robin America part number)

$

$

Currently unavailable

39

Echo 235-70550-08

ARMATURE ASSY

Note: (Robin America part number)

$

$

Currently unavailable

40

Echo 214-79007-01

BOLT

Note: (Robin America part number)

$

$

Currently unavailable

41

Echo 003-20080-00

LOCKWASHER

Note: (Robin America part number)

$

$

Currently unavailable

42

Echo 003-10080-00

WASHER

Note: (Robin America part number)

$

$

Currently unavailable

43

Echo 214-78501-03

WIRE CASING

Note: (Robin America part number)

$

$

Currently unavailable

44

Echo 390-54455-08

BATTERY CABLE - POSITIVE

Note: (Robin America part number)

$

$

Currently unavailable

45

Echo 066-10000-10

SWITCH

Note: (Robin America part number)

$

$

Currently unavailable

46

Echo 065-01405-80

SPARK PLUG -- BR-6ES

Note: (Robin America part number)

$

$

Currently unavailable
