EGR 6000 E - Shindaiwa Generator Generator Parts Diagram

Generator

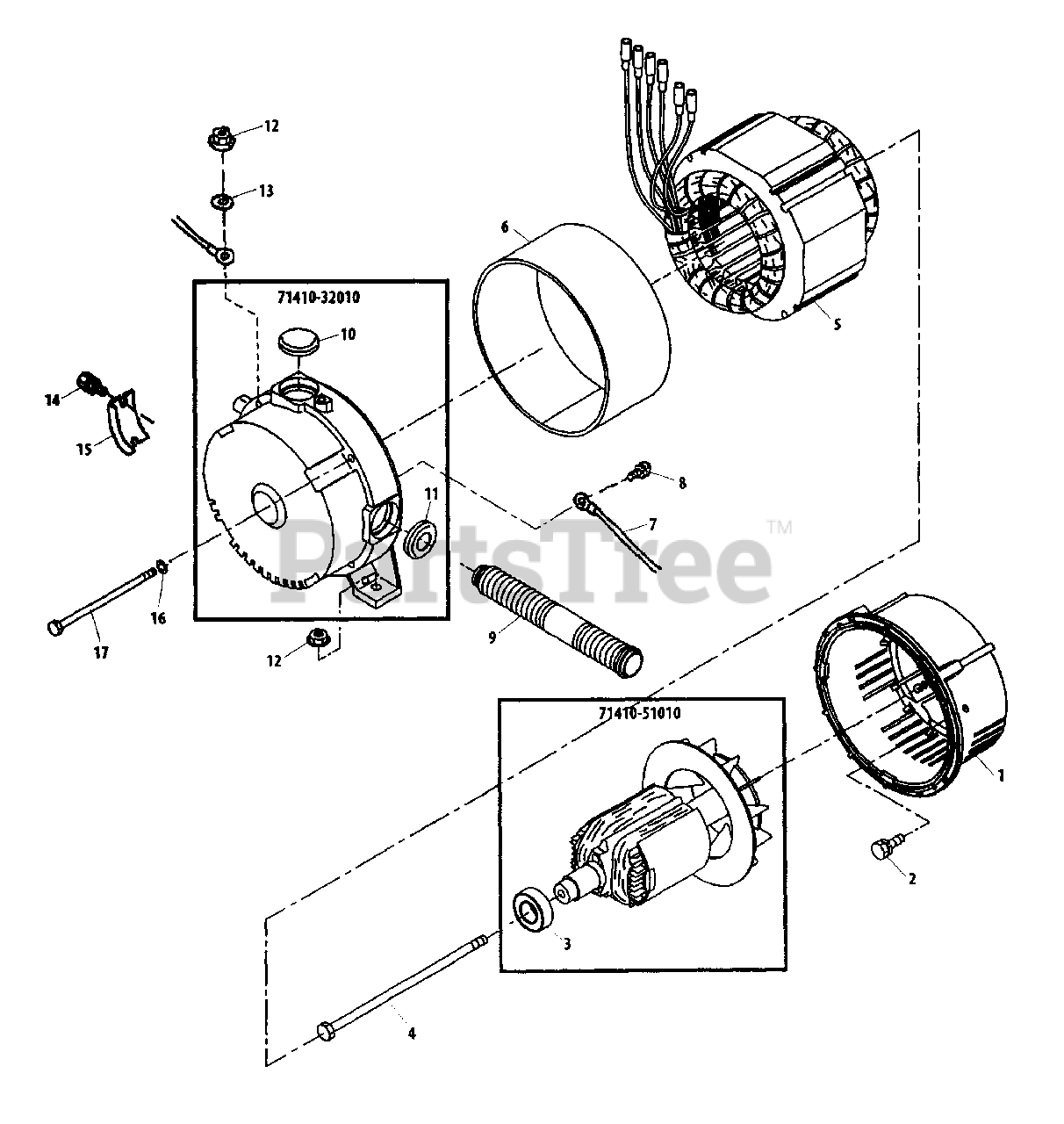

Generator Parts Diagram

  • Title

1

Echo 71410-31010

FRONT COVER

$

$

Currently unavailable

2

Echo 01013-08200

BOLT

$

$

Currently unavailable

71410-51010

Echo 71410-51010

ROTOR ASSY

$

$

Currently unavailable

3

Echo 02002-06205

BEARING, BALL
(Superseded to 90081406205)

$18.99

$

Usually ships in 2-4 days

0

4

Echo 71410-50150

BOLT

$

$

Currently unavailable

5

Echo 71410-52010

STATOR

$

$

Currently unavailable

6

Echo 71410-33020

STATOR COVER

$

$

Currently unavailable

7

Echo 14325-25500

WIRE

$

$

Currently unavailable

8

Echo 01211-04060

SCREW

$

$

Currently unavailable

9

Echo 71410-32050

FLEXIBLE TUBE

$

$

Currently unavailable

71410-32010

Echo 71410-32010

REAR COVER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 71410-32030

CAP

$

$

Currently unavailable

11

Echo 71410-32040

CAP

$

$

Currently unavailable

12

Echo 11526-08112

NUT - FLANGE

$

$

Currently unavailable

13

Echo 01613-08160

WASHER
(Superseded to 90060300008)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 01017-05120

BOLT
(Superseded to 9103605012)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 71410-33010

BRUSH COVER

$

$

Currently unavailable

16

Echo 01600-08201

WASHER, SPRING 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

17

Echo 01001-08601

BOLT

$

$

Currently unavailable
