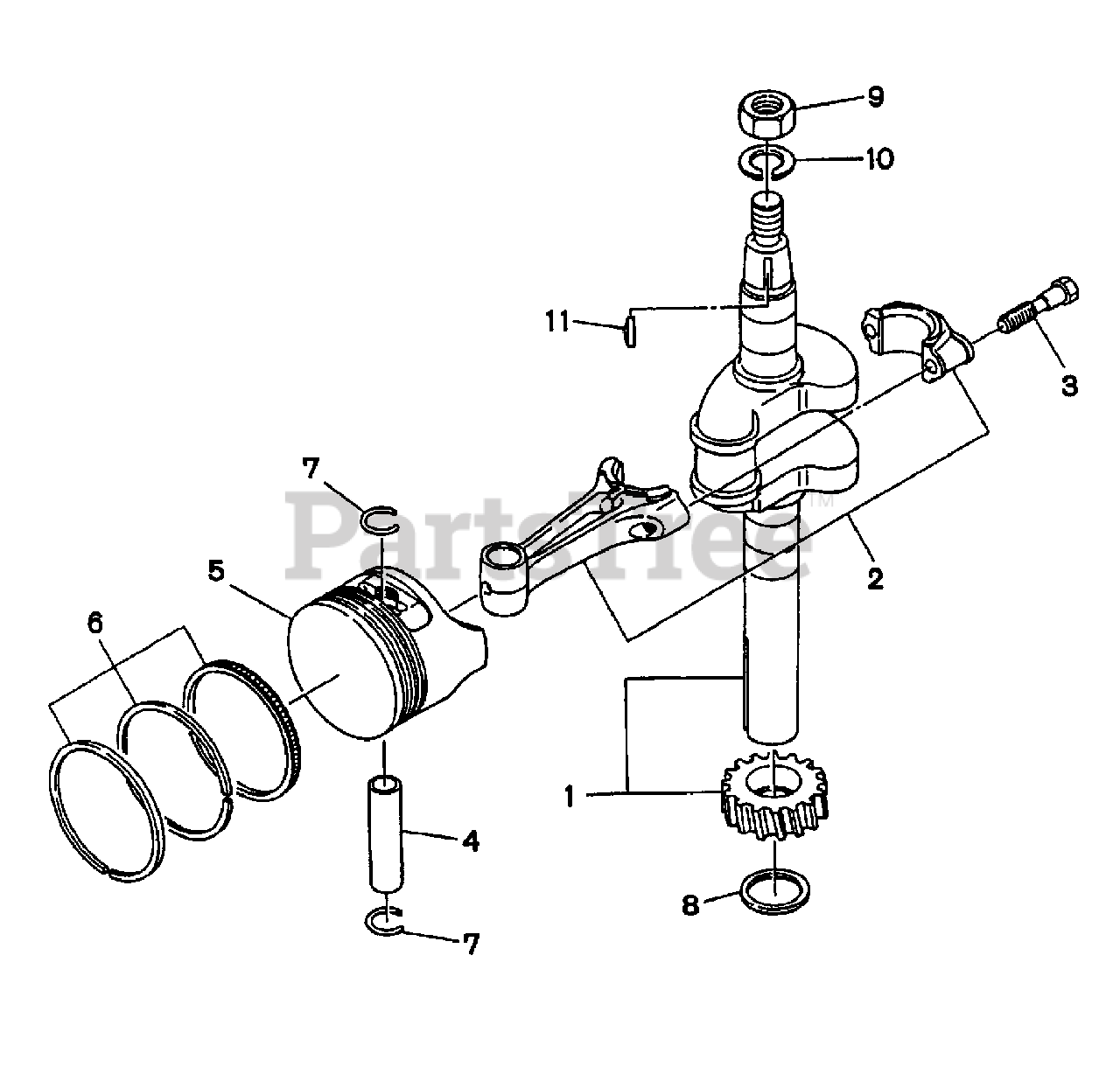

EH 18 V (46998) - Snapper Engine, Made by Robin Subaru, 6.5hp Crankshaft And Piston Parts Diagram

Engine, Made by Robin Subaru, 6.5hp

Crankshaft And Piston Parts Diagram

  • Title

1

Snapper 261-27001-01

CRANKSHAFT, compl., 25mm

Note: Was 261-25001-01

$

$

Not available

1

Snapper 261-25101-01

CRANKSHAFT, compl., 7/8"

$

$

Currently unavailable

2

Snapper 227-22503-10

CONNECTING ROD ASS'Y

Note: (Includes item 3)

$

$

Not available

3

Snapper 227-23001-13

CONNECTING ROD BOLT

$

$

Not available

4

Snapper 214-23301-13

PISTON PIN

$

$

Not available

5

Snapper 227-23401-03

PISTON

Note: (STD)

$

$

Not available

5

Snapper 227-23402-03

PISTON

Note: (OVER SIZE 0.25mm)

$

$

Not available

5

Snapper 227-23403-03

PISTON

Note: (OVER SIZE 0.50mm)

$

$

Currently unavailable

6

Snapper 282-23501-07

PISTON RING SET

Note: Was 227-23501-07 (STD)

$

$

Not available

6

Snapper 227-23502-07

PISTON RING SET

Note: (OVER SIZE 0.25mm)

$

$

Not available

6

Snapper 227-23503-07

PISTON RING SET

Note: (OVER SIZE 0.50mm)

$

$

Not available

7

Snapper 056-51400-10

CLIP

$

$

Not available

8

Snapper 023-02501-10

SPACER

Note: (t = 0.6mm)

$

$

Not available

8

Snapper 023-02501-20

SPACER

Note: (t = 0.8mm; Select one piece only)

$

$

Not available

8

Snapper 023-02501-30

SPACER

Note: (t = 1.0mm)

$

$

Not available

9

Snapper 002-18140-00

NUT

$

$

Not available

10

Snapper 003-20140-00

SPRING WASHER

$

$

Not available

11

Snapper 032-30300-10

WOODRUFF KEY

$

$

Not available
