EH 2500 (UT-03644) - Homelite Generator Engine & Frame Parts Diagram

Generator

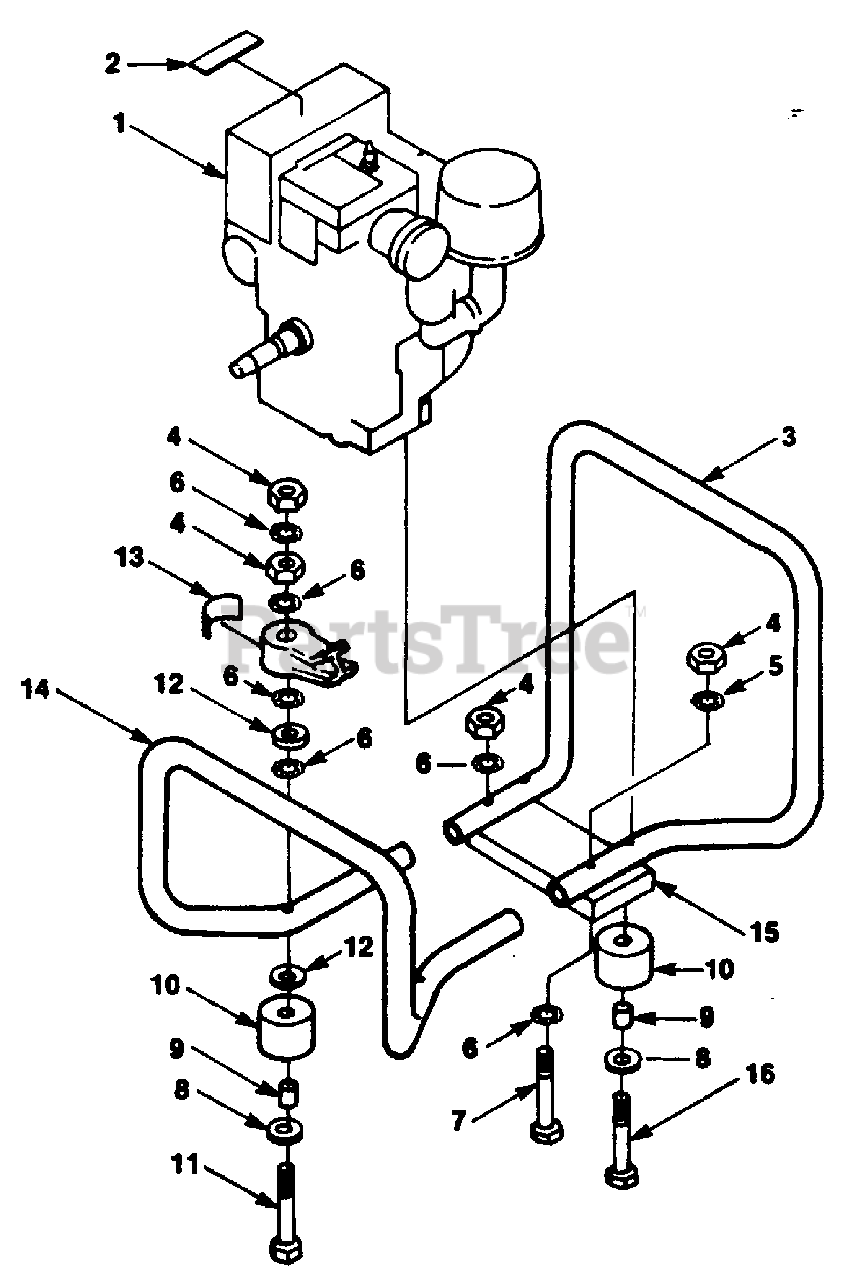

Engine & Frame Parts Diagram

  • Title

1

ENGINE (EH2500)

$

$

Not available

2

Homelite 49613

DECAL- Warning

$

$

Not available

3

Homelite 498081

MEMBER- Frame (engine)

$

$

Currently unavailable

4

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

5

Homelite 83081

WASHER- Lock int. (5/16")

$

$

Not available

6

Homelite 83033

WASHER- Lock ext./int.
(Superseded to 83081)

$

$

Not available

7

Homelite JA400200

BOLT- Engine (rear)

$

$

Not available

8

Homelite 84032

WASHER- Flat (5/16")

$

$

Not available

9

Homelite 49733

SPACER- Foot

$

$

Not available

10

Homelite 48789

FOOT

$

$

Not available

11

Homelite JA400204

SCREW- Cap hex. hd. (5/16-18 x 3")

$

$

Currently unavailable

12

Homelite 84058

WASHER- Flat (5/16")

$

$

Not available

13

Homelite 49490

DECAL- Ground

$

$

Not available

14

Homelite 498091

FRAME- Member (generator)

$

$

Currently unavailable

15

Homelite 498421

PLATE- Frame

$

$

Not available

16

Homelite 82530

BOLT- Engine (front)

$

$

Not available
