EH035AA1307 (EH035) - Subaru Robin Engine Carburetor - WYL174 Parts Diagram

Engine

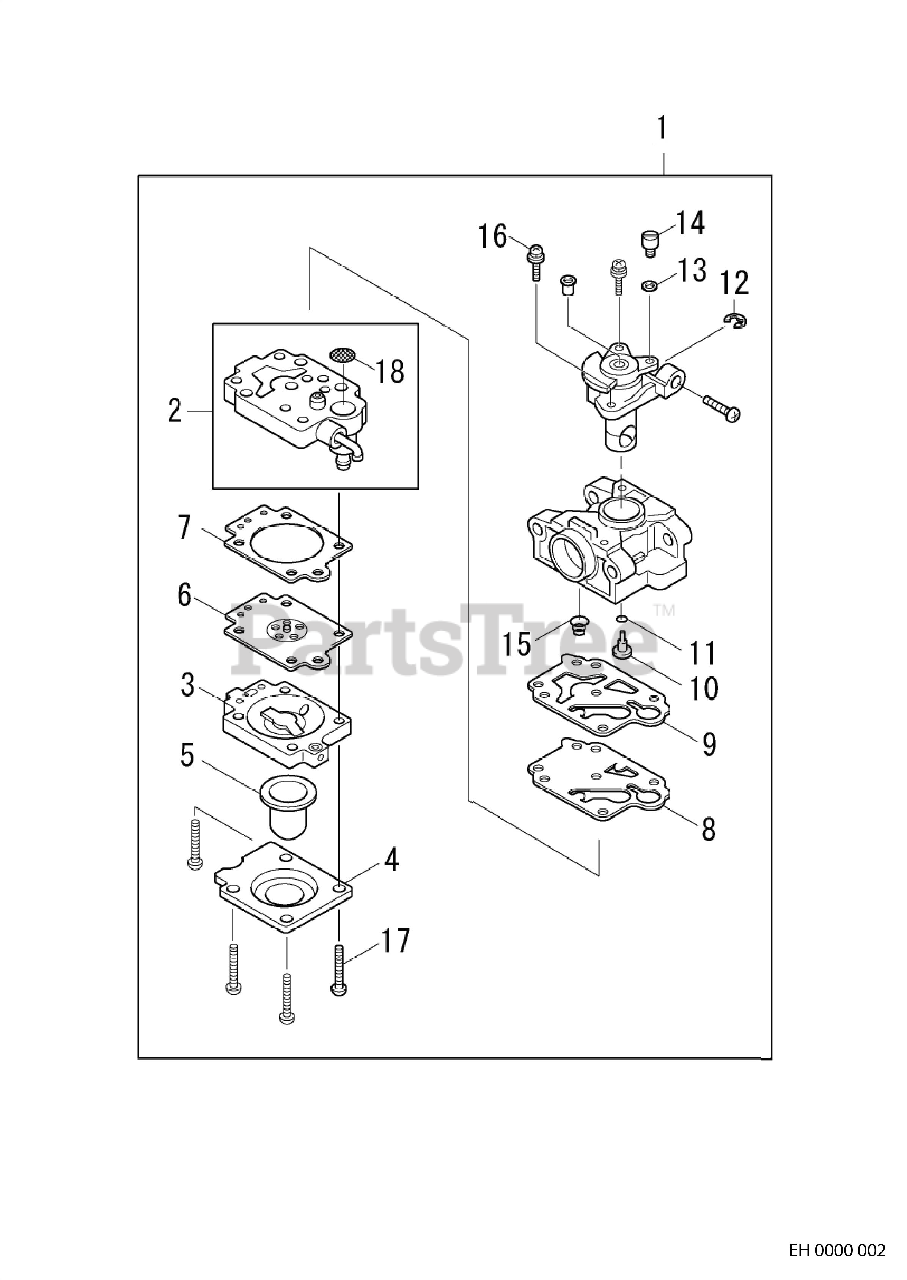

Carburetor - WYL174 Parts Diagram

  • Title

1

593-60040-00

CARBURETOR - WYL174

Note: Includes ITEMS 2,3-17

$

$

Not available

2

592-60021-40

PUMP BODY ASSEMBLY

Note: Includes ITEM 18

$

$

Not available

3

Subaru Robin 523-60461-40

PURGE BODY ASSY

$70.99

$

Usually ships in 2-12 days

0

4

Subaru Robin 523-60460-50

COVER,PRIMER PUMP

$10.99

$

Usually ships in 2-12 days

0

5

Subaru Robin 524-60011-50

PUMP,PRIMER

$

$

Not available

6

Subaru Robin 592-60080-10

METERING DIAPHRAGM ASSY

$55.99

$

Usually ships in 2-12 days

0

7

Subaru Robin 523-60460-40

GASKET, METERING DIAPHRAGM
(Superseded to 442154-1)

$19.99

$

Usually ships in 2-12 days

0

8

Subaru Robin 524-60010-40

DIAPHRAGM, PUMP

$25.99

$

In Stock, only 1 left!

0

9

Subaru Robin 592-60020-40

GASKET, PUMP

$25.99

$

In Stock, only 1 left!

0

10

Subaru Robin 593-60020-10

JET - #39

$25.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 524-60010-10

O-RING

$4.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 531-60051-20

RING, SPRING RETAINING

$10.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 542-60050-30

WASHER

$9.49

$

Usually ships in 2-12 days

0

14

Subaru Robin 523-60180-40

SWIVEL

$25.99

$

Usually ships in 2-12 days

0

15

Subaru Robin 592-60020-20

SPRING

$7.99

$

Usually ships in 2-12 days

0

16

Subaru Robin 520-60080-30

SCREW

$6.49

$

Usually ships in 2-12 days

0

17

Subaru Robin 523-60460-10

SCREW

$2.49

$

Usually ships in 2-12 days

0

18

Subaru Robin 501-60040-10

SCREEN, INLET

$4.49

$

Usually ships in 2-12 days

0
