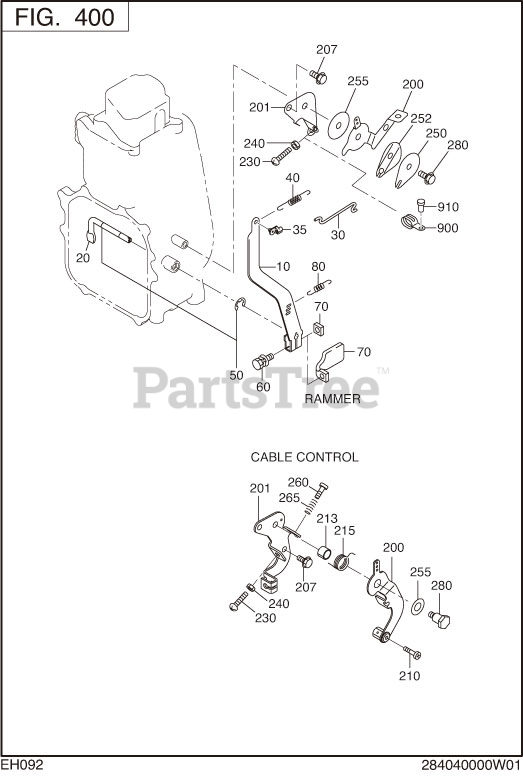

EH092D10010 (EH092) - Subaru Robin Rammer Engine 400 Governor Parts Diagram

Rammer Engine

400 Governor Parts Diagram

  • Title

10

Subaru Robin 284-42306-03

GOVERNOR LEVER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$16.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 230-42201-13

GOVERNOR SHAFT

Note: Start Date: 3/16/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 234-42701-01

GOVERNOR ROD

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 234-42801-13

ROD SPRING

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX0.5DX32L N=16.3. Interchangable with 234-42801-01.

$5.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 003-13050-00

CLIP

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX11DX0.6T.

$0.99

$

In Stock, only 1 left!

0

60

Subaru Robin 001-14062-50

BOLT AND WASHER AY

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X25L W/W,SW.

$1.49

$

In Stock, only 4 left!

0

70

Subaru Robin 018-60600-20

NUT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X4.9H SQUARE.

$0.99

$

In Stock, Qty 6

0

80

Subaru Robin 284-42506-03

GOVERNOR SPRING

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX0.9DX40.5L N=8.5.

$5.49

$

Usually ships in 2-12 days

0

200

Subaru Robin 230-43301-23

SPEED CONTROL

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$16.99

$

Usually ships in 2-12 days

0

201

Subaru Robin 230-45001-11

BASE PLATE CP

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.99

$

Usually ships in 2-12 days

0

207

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$4.49

$

In Stock, only 2 left!

0

230

Subaru Robin 004-31063-00

SCREW

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X30L.

$0.99

$

Usually ships in 2-12 days

0

240

Subaru Robin 002-27060-00

NUT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X3.6H.

$0.99

$

In Stock, Qty 9

0

250

Subaru Robin 227-43501-13

STOP PLATE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$13.99

$

In Stock, only 1 left!

0

252

Subaru Robin 227-45002-03

SPRING WASHER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

255

Subaru Robin 021-70600-30

FRICTION WASHER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.5DX33DX0.6T FIBER.

$1.49

$

In Stock, only 4 left!

0

280

Subaru Robin 011-00600-30

FLANGE BOLT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX14L.

$4.49

$

In Stock, only 3 left!

0
