EH092DN8110 (EH092) - Subaru Robin Rammer Engine 642 Fuel & Lubricant Parts Diagram

Rammer Engine

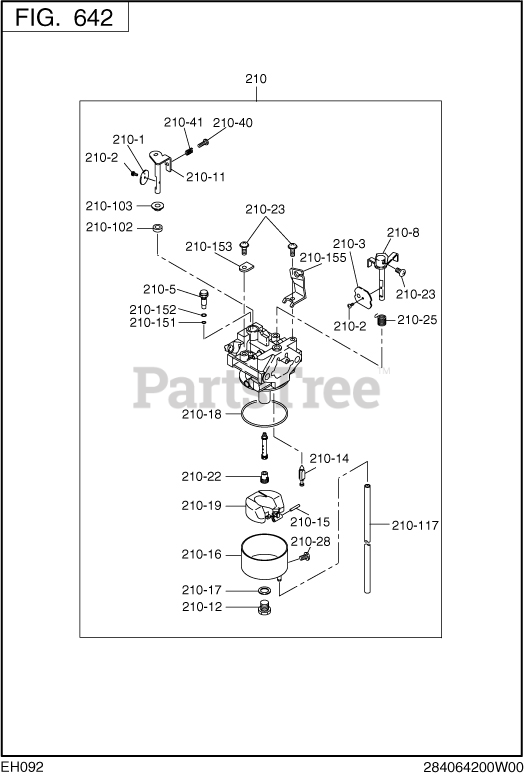

642 Fuel & Lubricant Parts Diagram

  • Title

210-0

Subaru Robin 284-62301-30

CARBURETOR AY

$420.99

$

Usually ships in 2-12 days

0

210-1

Subaru Robin 284-62535-08

THROTTLE VALVE

$15.99

$

Usually ships in 2-12 days

0

210-2

Subaru Robin 284-62455-08

SCREW

$12.99

$

Usually ships in 2-12 days

0

210-3

Subaru Robin 284-62527-08

VALVE,CHOKE

$14.99

$

Usually ships in 2-12 days

0

210-5

Subaru Robin 284-62420-08

SLOW JET

$25.99

$

Usually ships in 2-12 days

0

210-8

Subaru Robin 284-62520-08

SHAFT AY CHOKE

$27.99

$

Usually ships in 2-12 days

0

210-11

284-62530-18

SHAFT AY THROTTLE

$

$

Not available

210-12

Subaru Robin 284-62355-08

SCREW

$6.49

$

Usually ships in 2-12 days

0

210-14

Subaru Robin 279-62500-08

VALVE ASSY,NEEDLE

$71.99

$

In Stock, only 2 left!

0

210-15

Subaru Robin 284-62515-08

PIN,FLOAT LEVER

$6.99

$

In Stock, only 1 left!

0

210-16

Subaru Robin 284-62550-08

CHAMBER AY,FLOAT

$40.99

$

Usually ships in 2-12 days

0

210-17

Subaru Robin 251-62350-08

GASKET

$5.99

$

Usually ships in 2-12 days

0

210-18

Subaru Robin 284-62540-08

GASKET,CHAMBER

$26.99

$

Usually ships in 2-12 days

0

210-19

Subaru Robin 284-62505-08

FLOAT AY

$56.99

$

Usually ships in 2-12 days

0

210-22

Subaru Robin 284-62400-08

MAIN JET

Note: #63

$

$

Not available

210-23

Subaru Robin 284-62456-08

SCREW

$1.99

$

Usually ships in 2-12 days

0

210-25

Subaru Robin 284-62445-08

SPRING,CHOKE

$4.49

$

Usually ships in 2-12 days

0

210-28

Subaru Robin 251-62661-08

DRAIN SCREW

$8.49

$

Usually ships in 2-12 days

0

210-40

Subaru Robin 284-62353-08

SCREW,ADJUST

$4.49

$

Usually ships in 2-12 days

0

210-41

Subaru Robin 279-62445-08

SPRING

$9.99

$

Usually ships in 2-12 days

0

210-102

Subaru Robin 251-62559-08

BUSH

$2.49

$

Usually ships in 2-12 days

0

210-103

Subaru Robin 284-62560-08

COLLAR

$3.49

$

Usually ships in 2-12 days

0

210-117

Subaru Robin 284-62567-08

VINYL PIPE

$1.99

$

Usually ships in 2-12 days

0

210-151

Subaru Robin 284-62450-08

O-RING

$15.99

$

Usually ships in 2-12 days

0

210-152

Subaru Robin 284-62451-08

O-RING

$16.99

$

Usually ships in 2-12 days

0

210-153

Subaru Robin 284-62563-08

PLATE

$4.49

$

Usually ships in 2-12 days

0

210-155

Subaru Robin 284-62570-18

BRACKET,WIRE

$8.49

$

Usually ships in 2-12 days

0
