EH092DN8510 (EH092) - Subaru Robin Rammer Engine 305 Intake & Exhaust Parts Diagram

Rammer Engine

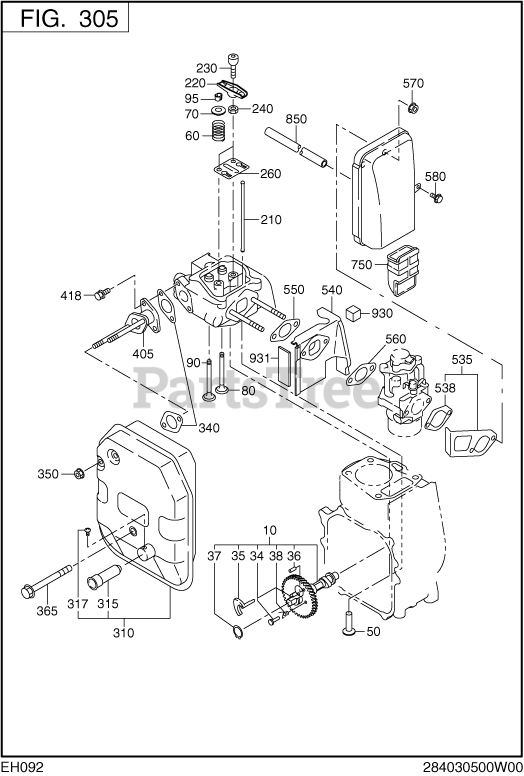

305 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 284-31701-21

CAMSHAFT CP

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=92 63DX6.6B N=38.

$98.04

$

Usually ships in 2-12 days

0

34

Subaru Robin 227-38601-23

PIN(SPRING)

Note: Start Date: 11/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 3.8DX7.5DX14L.

$15.54

$

Usually ships in 2-12 days

0

35

Subaru Robin 284-36401-03

RELEASE LEVER

Note: Start Date: 11/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$28.99

$

Usually ships in 2-12 days

0

36

Subaru Robin 005-19041-00

SPRING PIN

Note: Start Date: 11/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.4DX10LX0.8T.

$0.99

$

In Stock, only 2 left!

0

37

Subaru Robin 003-15170-00

SNAP RING OUTER

Note: Start Date: 11/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

38

Subaru Robin 274-38701-23

RETURN SPRING

Note: Start Date: 11/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX0.5DX5.2L N=9.7.

$1.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 274-33301-03

TAPPET

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 17DX8DX32L.

$15.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 274-33601-03

VALVE SPRING

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 17.1DX2DX26.7L N=5.5.

$4.49

$

Usually ships in 2-12 days

0

70

Subaru Robin 274-33702-03

SPRING RETAINER

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

80

Subaru Robin 274-33401-03

INTAKE VALVE

Note: End Code: 6971. Start Date: 9/2/2003 0:00:00. Start Date: 1/31/2006 0:00:00. Remarks: 21DX5.5DX63.6L.

$23.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 284-33401-H3

INTAKE VALVE

Note: Start Code: 6972. Start Date: 2/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 21DX5.5DX63.6L.

$27.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 274-33501-03

EXHAUST VALVE

Note: End Code: 6971. Start Date: 9/2/2003 0:00:00. Start Date: 1/31/2006 0:00:00. Remarks: 18DX5.5DX63.6L.

$32.99

$

In Stock, only 1 left!

0

90

Subaru Robin 284-33501-H3

EXHAUST VALVE

Note: Start Code: 6972. Start Date: 2/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 18DX5.5DX63.6L.

$19.06

$

Usually ships in 2-12 days

0

95

Subaru Robin 132-10KA0-31

COLLET-VALVE

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

In Stock, only 1 left!

0

210

Subaru Robin 274-35301-03

PUSH ROD

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4DX121.6L.

$5.49

$

Usually ships in 2-12 days

0

220

Subaru Robin 284-36001-13

ROCKER ARM

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 269-35801-03

BOLT (PIVOT)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X19L SOCKET H.

$

$

Not available

240

Subaru Robin 017-00600-90

NUT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X5.1H.

$2.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 274-36501-03

GUIDE PLATE

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 284-30201-20

MUFFLER AY

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$242.99

$

Usually ships in 2-12 days

0

315

Subaru Robin 269-37601-01

SPARK ARRESTER CP

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$23.99

$

Usually ships in 2-12 days

0

317

Subaru Robin 015-00400-60

TAPPING SCREW

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M4X6L.

$

$

Not available

340

Subaru Robin 230-35204-01

GASKET CP(EXHAUST)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.3 20D 6.5DX38P.

$3.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 018-00600-30

FLANGE NUT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

365

Subaru Robin 011-00801-10

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X14DX80L.

$6.49

$

Usually ships in 2-12 days

0

405

Subaru Robin 284-34101-13

EXHAUST PIPE

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$24.83

$

Usually ships in 2-12 days

0

418

Subaru Robin 001-14061-60

BOLT AND WASHER AY

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X16L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

535

Subaru Robin 284-32904-01

STAY BAFFLE CP

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

538

Subaru Robin 277-46701-03

GASKET(CHOKE)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3.

$0.99

$

Usually ships in 2-12 days

0

540

Subaru Robin 284-32903-03

INSULATOR

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.99

$

Usually ships in 2-12 days

0

550

Subaru Robin 227-35902-03

GASKET 2 (INSULATOR)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3 25D 6.5DX42P.

$3.99

$

In Stock, only 1 left!

0

560

Subaru Robin 157-35001-03

GASKET (INSULATOR)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3 20D 6.5DX42P.

$0.99

$

In Stock, only 2 left!

0

570

Subaru Robin 002-38060-00

FLANGE NUT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 15

0

580

Subaru Robin 011-00601-80

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX18L.

$2.49

$

Usually ships in 2-12 days

0

750

Subaru Robin 284-32101-03

DUCT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.56

$

Usually ships in 2-12 days

0

850

Subaru Robin 085-10800-00

RUBBER PIPE

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX11DX37.5L. Interchangable with 085-10800-00.

$23.99

$

In Stock, only 1 left!

0

930

Subaru Robin 33K-58315-13

SPONGE INS

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

931

Subaru Robin 33K-58321-13

SPONGE INS 2

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0
