EH092DN8510 (EH092) - Subaru Robin Rammer Engine 505 Cooling & Starting Parts Diagram

Rammer Engine

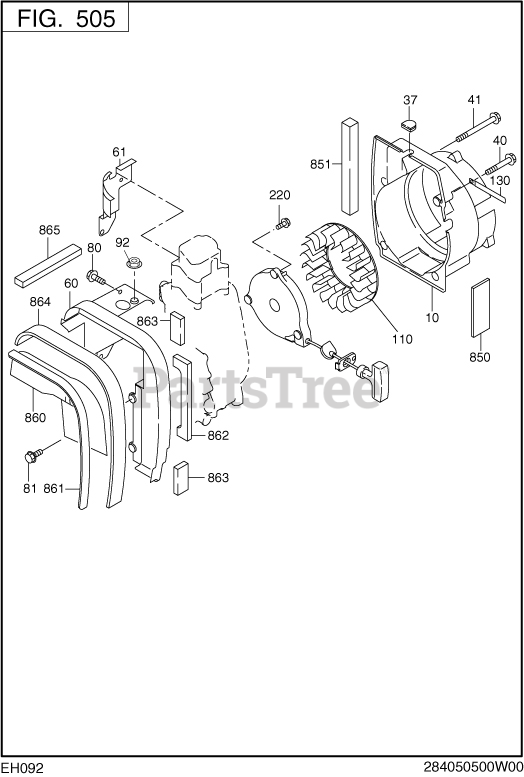

505 Cooling & Starting Parts Diagram

  • Title

10

Subaru Robin 284-51201-03

BLOWER HOUSING

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$105.99

$

Usually ships in 2-12 days

0

37

Subaru Robin 284-55501-03

GROMMET

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 011-00801-60

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16DX55L.

$2.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 011-00803-02

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX90L.

$2.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 284-53601-01

CYLINDER BAFFLE CP

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$33.99

$

Usually ships in 2-12 days

0

61

Subaru Robin 284-53603-03

CYLINDER BAFFLE(E/G)

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$4.49

$

In Stock, only 3 left!

0

81

Subaru Robin 011-00801-50

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16DX12L.

$4.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 284-54201-13

COOLING FAN

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$22.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 056-60002-60

CLAMP

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.5DX10BX95LX0.4T.

$6.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 011-00601-40

FLANGE BOLT

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX18L.

$3.49

$

Usually ships in 2-12 days

0

850

Subaru Robin 34K-40102-03

SEAL PLATE

Note: End Code: 6483. Start Date: 9/2/2003 0:00:00. Start Date: 9/30/2004 0:00:00.

$12.99

$

Usually ships in 2-12 days

0

851

Subaru Robin 284-51203-03

SEAL SPONGE BL

Note: Start Code: 6484. Start Date: 10/1/2004 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

860

Subaru Robin 284-53606-23

INSULATION SEAT B1

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$15.99

$

Usually ships in 2-12 days

0

861

Subaru Robin 284-53605-03

SEAL RUBBER

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.99

$

Usually ships in 2-12 days

0

862

Subaru Robin 284-53609-03

SEAL SPONGE BAFFLE 2

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

863

Subaru Robin 284-53610-03

SEAL SPONGE BAFFLE 3

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

0

864

Subaru Robin 33K-58323-03

SPONGE BAFFLE 4

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

865

Subaru Robin 284-53608-03

SEAL SPONGE BAFFLE

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

0
