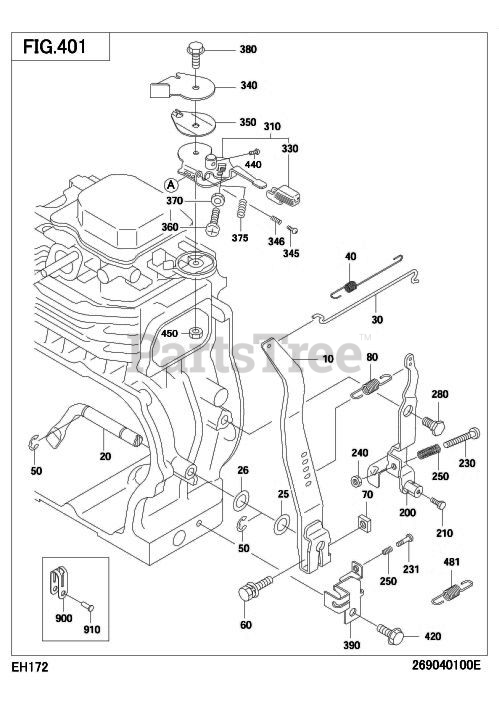

EH172D60120 (EH17-2) - Subaru Robin Engine 401 Governor Parts Diagram

Engine

401 Governor Parts Diagram

  • Title

10

Subaru Robin 253-42301-23

GOVERNOR LEVER

$32.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 227-42201-03

GOVERNOR SHAFT

$34.99

$

Usually ships in 2-12 days

0

25

Subaru Robin 003-11080-00

WASHER

$0.99

$

Usually ships in 2-12 days

0

26

Subaru Robin 003-11080-00

WASHER

$0.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 253-42701-01

GOVERNOR ROD CP

$10.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 253-42801-03

ROD SPRING

$10.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 003-13060-00

CLIP

$0.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 001-14063-00

BOLT AND WASHER AY

$1.49

$

In Stock, only 3 left!

0

70

Subaru Robin 018-60600-20

NUT

$0.99

$

In Stock, Qty 6

0

80

Subaru Robin 252-42503-23

GOVERNOR SPRING

$10.99

$

Usually ships in 2-12 days

0

200

Subaru Robin 252-43401-20

SPEED CONTROL AY

$25.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 011-60400-30

BOLT

$1.49

$

Usually ships in 2-12 days

0

230

Subaru Robin 004-31052-50

SCREW,PANHEAD

$1.49

$

Usually ships in 2-12 days

0

240

Subaru Robin 002-17050-00

NUT

$0.99

$

Usually ships in 2-12 days

0

280

Subaru Robin 226-43101-01

LINK PIVOT CP

$33.99

$

In Stock, only 1 left!

0

390

Subaru Robin 226-44201-13

WIRE BRACKET

$7.99

$

Usually ships in 2-12 days

0

420

Subaru Robin 011-00600-30

FLANGE BOLT

$4.49

$

In Stock, only 3 left!

0
