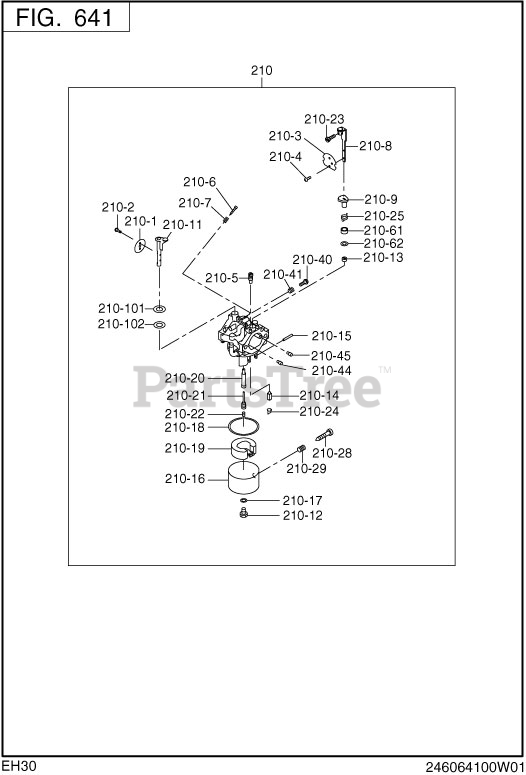

EH300DS4500 (EH30) - Subaru Robin Engine 641 Fuel & Lubricant Parts Diagram

Engine

641 Fuel & Lubricant Parts Diagram

  • Title

210-40

Subaru Robin 246-62435-08

ADJUST SCREW

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$6.99

$

Usually ships in 2-12 days

0

210-41

Subaru Robin 209-62445-08

SPRING

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$6.99

$

In Stock, only 2 left!

0

210-44

Subaru Robin 106-62411-08

AIR JET

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$35.99

$

Usually ships in 2-12 days

0

210-45

Subaru Robin 111-62412-08

AIR JET(PILOT)

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$14.99

$

Usually ships in 2-12 days

0

210-0

Subaru Robin 246-62308-10

CARBURETOR AY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$521.99

$

Usually ships in 2-12 days

0

210-1

Subaru Robin 213-62535-08

THROTTLE VALVE

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$33.99

$

Usually ships in 2-12 days

0

210-2

Subaru Robin 209-62351-08

SCREW

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$2.49

$

In Stock, only 2 left!

0

210-3

Subaru Robin 234-62525-08

CHOKE VALVE

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$9.99

$

Usually ships in 2-12 days

0

210-4

Subaru Robin 237-62451-08

SCREW

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$2.49

$

In Stock, Qty 5

0

210-5

Subaru Robin 128-62420-08

PILOT JET

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: #37.5.

$28.99

$

Usually ships in 2-12 days

0

210-6

Subaru Robin 209-62305-08

PILOT SCREW

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$28.99

$

Usually ships in 2-12 days

0

210-7

Subaru Robin 209-62445-08

SPRING

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$6.99

$

In Stock, only 2 left!

0

210-8

Subaru Robin 234-62520-08

LEVER AY (CHOKE)

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$84.99

$

Usually ships in 2-12 days

0

210-9

Subaru Robin 234-62550-08

RING(CHOKE)

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$5.99

$

Usually ships in 2-12 days

0

210-11

Subaru Robin 246-62531-08

THROTLE SHAFT-A

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$78.99

$

Usually ships in 2-12 days

0

210-12

Subaru Robin 224-62544-08

BOLT

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$6.99

$

Usually ships in 2-12 days

0

210-13

Subaru Robin 226-62550-08

RING

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$5.49

$

In Stock, only 3 left!

0

210-14

Subaru Robin 224-62312-18

NEEDLE-A

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$104.99

$

Usually ships in 2-12 days

0

210-15

Subaru Robin 214-62515-08

PIN

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$5.49

$

In Stock, only 3 left!

0

210-16

Subaru Robin 224-62552-08

FLOAT CHAMBER BODY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$132.99

$

Usually ships in 2-12 days

0

210-17

Subaru Robin 207-62345-08

INSERT WASHER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$0.99

$

Usually ships in 2-12 days

0

210-18

Subaru Robin 206-62540-08

PACKING

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$12.99

$

In Stock, only 4 left!

0

210-19

Subaru Robin 234-62506-08

FLOT-A

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$81.99

$

In Stock, only 1 left!

0

210-20

Subaru Robin 246-62440-08

MAIN NOZZLE

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$31.99

$

Usually ships in 2-12 days

0

210-21

Subaru Robin 246-62425-08

JET HOLDER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$48.99

$

In Stock, only 1 left!

0

210-22

Subaru Robin 234-62401-08

MAIN JET

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: #97.5.

$30.99

$

Usually ships in 2-12 days

0

210-24

Subaru Robin 224-62569-18

CLIP

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$5.49

$

Usually ships in 2-12 days

0
