Subaru Robin EH300DS7330 (EH30) - Subaru Robin Engine 305 Intake & Exhaust Parts Lookup with Diagrams

10

Subaru Robin 246-31701-01

CAMSHAFT CP

$185.99

$

Usually ships in 2-12 days

35

Subaru Robin 246-36201-11

RELEASE LEVER CP

Note: Start Code: 4474.

$45.99

$

Usually ships in 2-12 days

35

Subaru Robin 246-36201-01

RELEASE LEVER CP

Note: End Code: 4473.

$45.99

$

Usually ships in 2-12 days

38

Subaru Robin 246-36701-03

RETURN SPRING

$10.99

$

Usually ships in 2-12 days

50

Subaru Robin 246-33301-03

TAPPET

$13.99

$

Usually ships in 2-12 days

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Code: 3532.

$7.99

$

In Stock, only 3 left!

60

Subaru Robin 246-33601-03

VALVE SPRING

Note: End Code: 3531.

$4.49

$

Usually ships in 2-12 days

65

Subaru Robin 020-02000-10

WASHER

$2.49

$

Usually ships in 2-12 days

70

Subaru Robin 246-33711-03

SPRING RETAINER

Note: Start Code: 3532.

$14.99

$

Usually ships in 2-12 days

70

Subaru Robin 246-33701-13

SPRING RETAINER

Note: End Code: 3531.

$6.49

$

Usually ships in 2-12 days

80

Subaru Robin 246-33411-03

INTAKE VALVE

Note: Start Code: 3532.

$52.99

$

Usually ships in 2-12 days

80

Subaru Robin 246-33401-03

INTAKE VALVE

Note: End Code: 3531.

$52.99

$

Usually ships in 2-12 days

90

Subaru Robin 246-33511-03

EXHAUST VALVE

Note: Start Code: 3532.

$101.99

$

In Stock, only 1 left!

90

Subaru Robin 246-33501-03

EXHAUST VALVE

Note: End Code: 3531.

$97.99

$

Usually ships in 2-12 days

95

Subaru Robin 246-35501-03

COLLET-VALVE

$3.49

$

In Stock, only 4 left!

100

Subaru Robin 023-02200-50

SPACER

Note: Remarks: T=0.6.

$4.99

$

Usually ships in 2-12 days

101

Subaru Robin 023-02200-60

SPACER

Note: Remarks: T=0.7.

$4.99

$

Usually ships in 2-12 days

102

Subaru Robin 023-02200-70

SPACER

Note: Remarks: T=0.8.

$4.99

$

Usually ships in 2-12 days

200

Subaru Robin 239-35001-03

ROCKER SHAFT

$

Not available 

210

Subaru Robin 246-35301-11

PUSH ROD CP

$62.99

$

Usually ships in 2-12 days

220

Subaru Robin 246-36101-10

ROCKER ARM AY

$57.99

$

Usually ships in 2-12 days

230

Subaru Robin 014-90800-21

ADJUSTING SCREW

$11.99

$

Usually ships in 2-12 days

240

Subaru Robin 017-00800-90

NUT

$9.99

$

Usually ships in 2-12 days

250

Subaru Robin 246-36120-13

SPACER(ROCKER SHAFT)

$6.49

$

Usually ships in 2-12 days

310

Subaru Robin 246-30101-31

MUFFLER CP

Note: Start Code: 4657.

$317.99

$

Usually ships in 2-12 days

310

Subaru Robin 246-30101-21

MUFFLER CP

Note: End Code: 4656.

$317.99

$

Usually ships in 2-12 days

320

Subaru Robin 246-34201-31

MUFFLER COVER CP

Note: Start Code: 4657.

$135.99

$

Usually ships in 2-12 days

320

Subaru Robin 246-34201-21

MUFFLER COVER CP

Note: End Code: 4656.

$135.99

$

Usually ships in 2-12 days

340

Subaru Robin 246-35201-03

GASKET(MUFFLER)

$5.49

$

In Stock, only 2 left!

350

Subaru Robin 018-00800-10

FLANGE NUT

$8.99

$

Usually ships in 2-12 days

360

Subaru Robin 015-20600-90

TAPPING BOLT

Note: Start Code: 4657.

$2.49

$

In Stock, only 3 left!

360

Subaru Robin 011-00600-10

FLANGE BOLT

Note: End Code: 4656.

$4.49

$

In Stock, only 2 left!

361

Subaru Robin 011-00600-10

FLANGE BOLT

$4.49

$

In Stock, only 2 left!

365

Subaru Robin 001-11081-60

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

405

Subaru Robin 246-34001-01

EXHAUST PIPE CP

$96.99

$

Usually ships in 2-12 days

415

Subaru Robin 010-50803-60

STUD

$8.99

$

Usually ships in 2-12 days

500

Subaru Robin 246-33001-01

INTAKE PIPE CP

$159.99

$

Usually ships in 2-12 days

505

Subaru Robin 010-50602-30

STUD

$7.49

$

Usually ships in 2-12 days

510

Subaru Robin 246-32606-00

AIR CLEANER AY

$144.99

$

Usually ships in 2-12 days

510

Subaru Robin 234-36003-08

PACKING

$1.99

$

In Stock, Qty 9

510

Subaru Robin 246-32625-08

BACK PLATE CP

$33.99

$

Usually ships in 2-12 days

510

Subaru Robin 246-32640-08

COVER CP

$58.99

$

Usually ships in 2-12 days

540

Subaru Robin 246-32901-03

INSULATOR

$16.99

$

Usually ships in 2-12 days

555

Subaru Robin 246-36001-13

GASKET(IN.PIPE)

$8.99

$

Usually ships in 2-12 days

556

Subaru Robin 001-13082-80

BOLT AND WASHER AY

$1.99

$

Usually ships in 2-12 days

560

Subaru Robin 234-35902-03

GASKET2(INSULATOR)

Note: Remarks: T=0.2.

$2.49

$

In Stock, Qty 6

570

Subaru Robin 002-38060-00

FLANGE NUT

$2.99

$

In Stock, only 3 left!

580

Subaru Robin 001-10061-20

BOLT AND WASHER AY

$2.49

$

Usually ships in 2-12 days

660

Subaru Robin 214-67001-13

ADAPTER

$9.99

$

Usually ships in 2-12 days

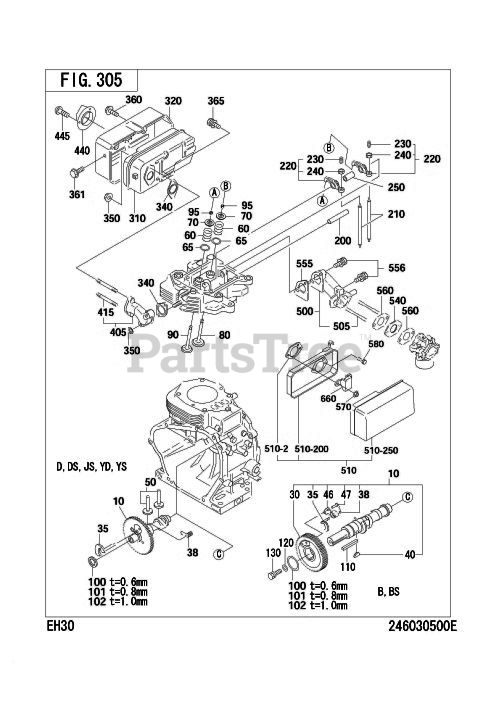

EH300DS7330 (EH30) - Subaru Robin Engine 305 Intake & Exhaust Parts Diagram

305 Intake & Exhaust Parts Diagram
