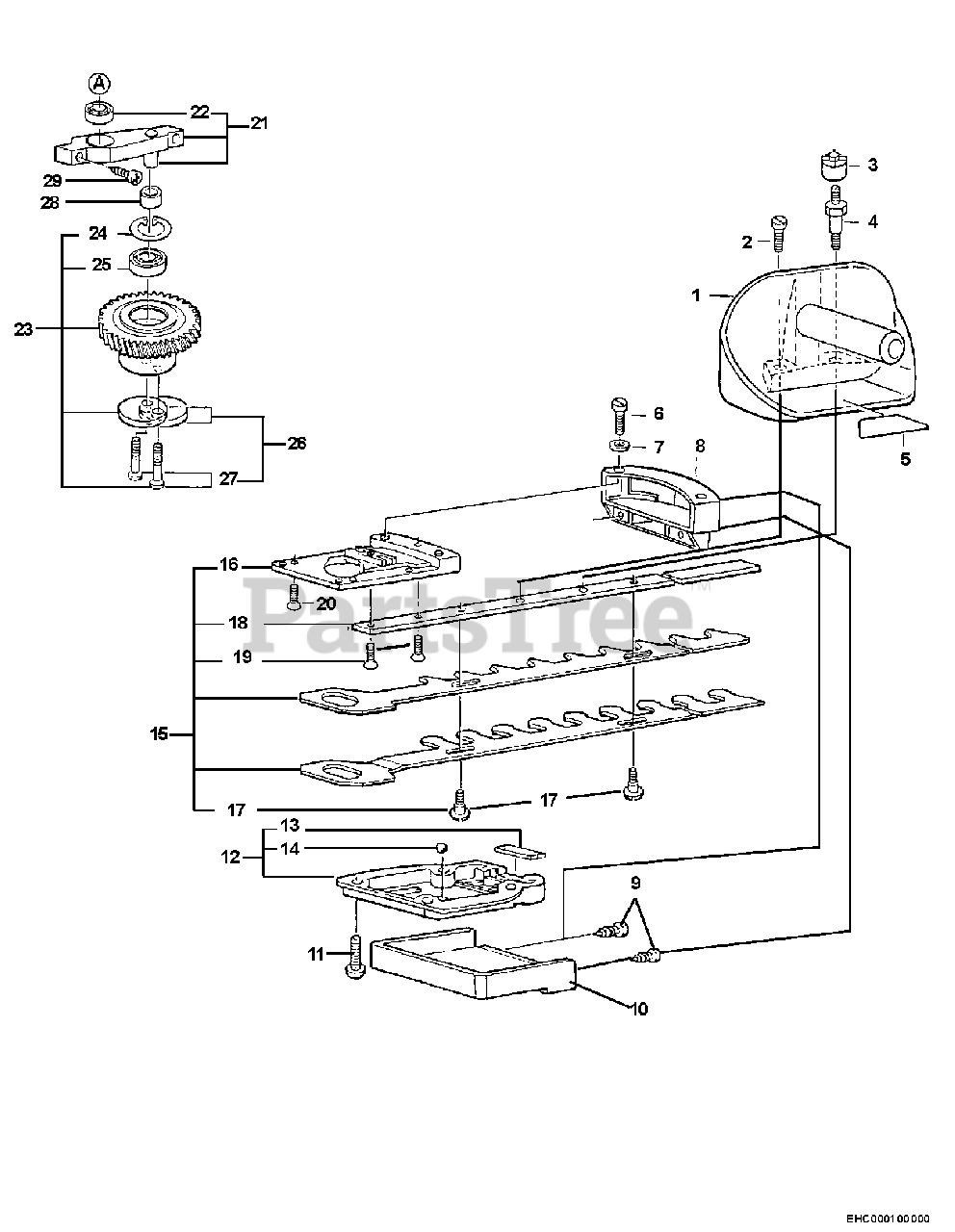

EHC-3000 - Echo Hedge Trimmer, Corded Gears/Blades/Handle Parts Diagram

Hedge Trimmer, Corded

Gears/Blades/Handle Parts Diagram

  • Title

1

Echo 72602025089

HANDLE, AUX.
(Superseded to 35120020060)

$

$

Not available

2

Echo 72603413009

SCREW
(Superseded to Discontinued)

$

$

Not available

3

Echo 72603421006

NUT
(Superseded to Discontinued)

$

$

Not available

4

Echo 72603052001

DBL. END BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 72601118755

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

6

Echo 72603410044

SCREW

$1.49

$

Usually ships in 2-4 days

0

7

Echo 72916061007

LOCKWASHER

$2.49

$

Usually ships in 2-4 days

0

8

Echo 72605510152

BRACKET

$9.49

$

Usually ships in 2-4 days

0

9

Echo 72603435036

SCREW - 4X16

$1.49

$

Usually ships in 2-4 days

0

10

Echo 72607001152

COVER

$18.99

$

Usually ships in 2-4 days

0

11

Echo 72603410018

SCREW - 4X22

$3.99

$

Usually ships in 2-4 days

0

12

Echo 72605500904

LID, GEAR CASE

Note: Includes ITEMS 13-14

$6.49

$

Usually ships in 2-4 days

0

13

Echo 72601005002

SEAL, FELT

$1.49

$

Usually ships in 2-4 days

0

14

Echo 71903230007

BALL - 4

$1.49

$

Usually ships in 2-4 days

0

15

Echo 72607001237

BLADE ASSY - 770mm
(Superseded to Discontinued)

Note: Includes ITEMS 16-19

$

$

Not available

16

Echo 72605700078

FLANGE
(Superseded to Discontinued)

$

$

Not available

17

Echo 72603413023

SCREW
(Superseded to Discontinued)

$

$

Not available

18

------------------

BAR, FRAME 770MM

$

$

Not available

19

Echo 72910771152

SCREW

$1.49

$

Usually ships in 2-4 days

0

20

Echo 72910871122

SCREW
(Superseded to Discontinued)

$

$

Not available

21

Echo 72605807910

BEARING FLANGE ASSY

Note: Includes ITEM 22

$16.99

$

Usually ships in 2-4 days

0

22

Echo 72600905039

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

23

Echo 72606320900

GEAR ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 24-27

$

$

Not available

24

Echo 72916660012

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

25

Echo 72600905028

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

26

Echo 72600030900

PLATE ASSY

Note: Includes ITEM 27

$7.49

$

Usually ships in 2-4 days

0

27

Echo 72603123018

DRIVING PIN
(Superseded to 72600030900)

$7.49

$

Usually ships in 2-4 days

0

28

Echo 72600200023

SPACER
(Superseded to Discontinued)

$

$

Not available

29

Echo 72910611022

SCREW
(Superseded to Discontinued)

$

$

Not available
