EHT 22 D - Weed Eater Hedge Trimmer, Electric Electric Hedgetrimmer Assembly Parts Diagram

Hedge Trimmer, Electric

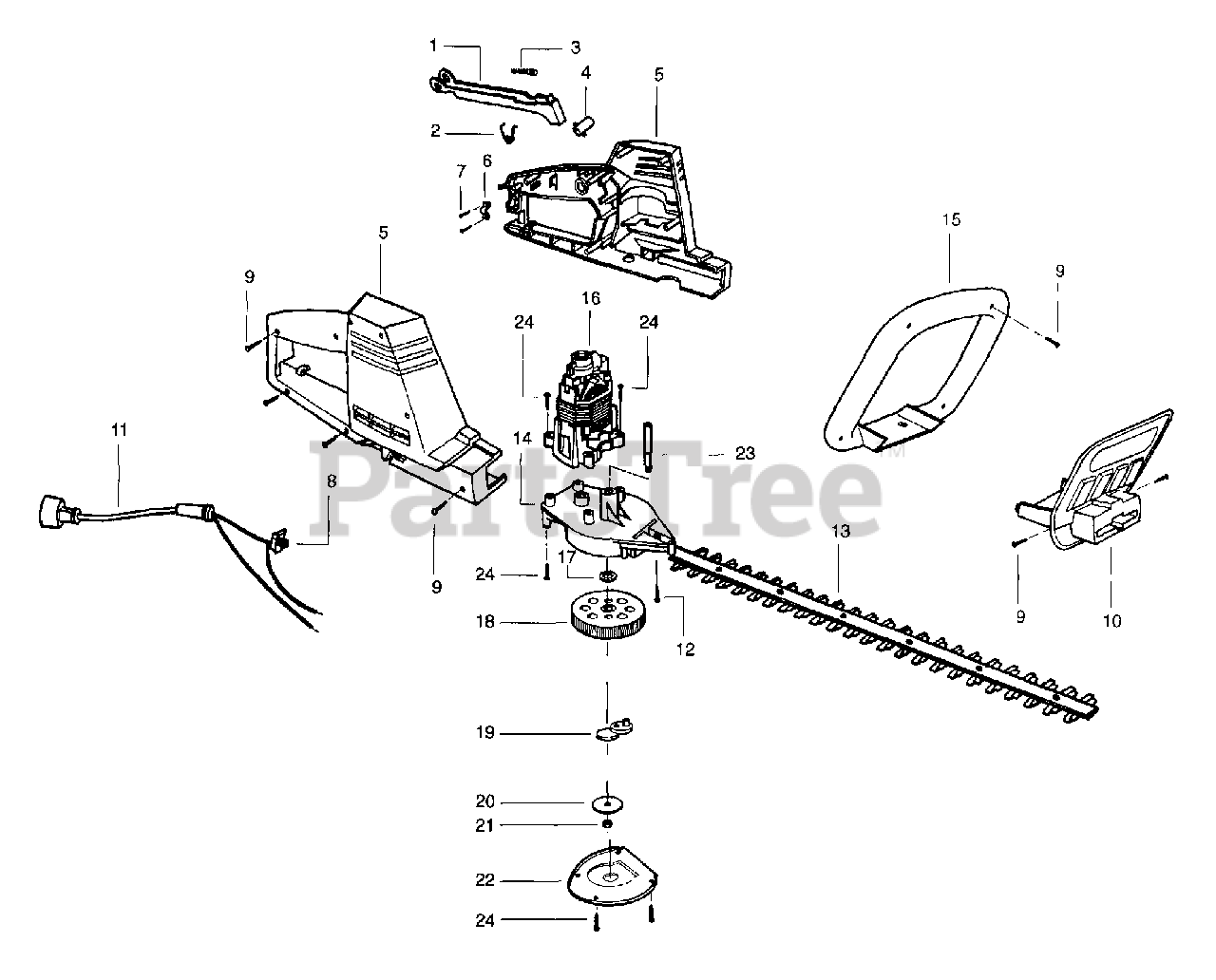

Electric Hedgetrimmer Assembly Parts Diagram

  • Title

1

Poulan 530403285

Trigger Switch

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530403299

Spring Clip

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530403300

Spring - Trigger Lock

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 530403286

Button - Trigger Lock

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 530403279

Housing Set (R & L)

$20.99

$

Usually ships in 3-10 days

0

6

Poulan 530403287

Cordset Clamp

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 534826801

Screw

$

$

Not available

8

Poulan 530401503

Switch (On/Off)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530340179

Screw

$0.99

$

In Stock, Qty 8

0

10

Poulan 530403282

Shield

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530403293

Cordset

$8.99

$

Usually ships in 3-10 days

0

12

Poulan 530016086

Screw

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530403230

Blade Ass'y. 18"

$46.99

$

Usually ships in 3-10 days

0

13

Poulan 530403231

Blade Ass'y. 22"

$

$

Not available

14

Poulan 530403278

Gear Box Ass'y.

$26.99

$

Usually ships in 3-10 days

0

15

Poulan 530053578

Handle Ass'y.

$

$

Not available

16

Poulan 530403277

Motor Ass'y.

$66.99

$

Usually ships in 3-10 days

0

17

Poulan 530401228

Washer - Thrust

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530400859

Gear

$14.99

$

Usually ships in 3-10 days

0

19

Poulan 530400980

Drive Cam

$8.99

$

Usually ships in 3-10 days

0

20

Poulan 530400876

Washer - Cam

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530401229

Locknut

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530403295

Plate Cover

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 530403296

Shaft

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

Poulan 530085735

Operator Manual

Note: Not shown

$4.99

$

Usually ships in 3-10 days

0
