EI 7243 (80870) - Snapper 24" Snow Thrower, 7hp Collector Housing (3 Piece Bolted) Parts Diagram

24" Snow Thrower, 7hp

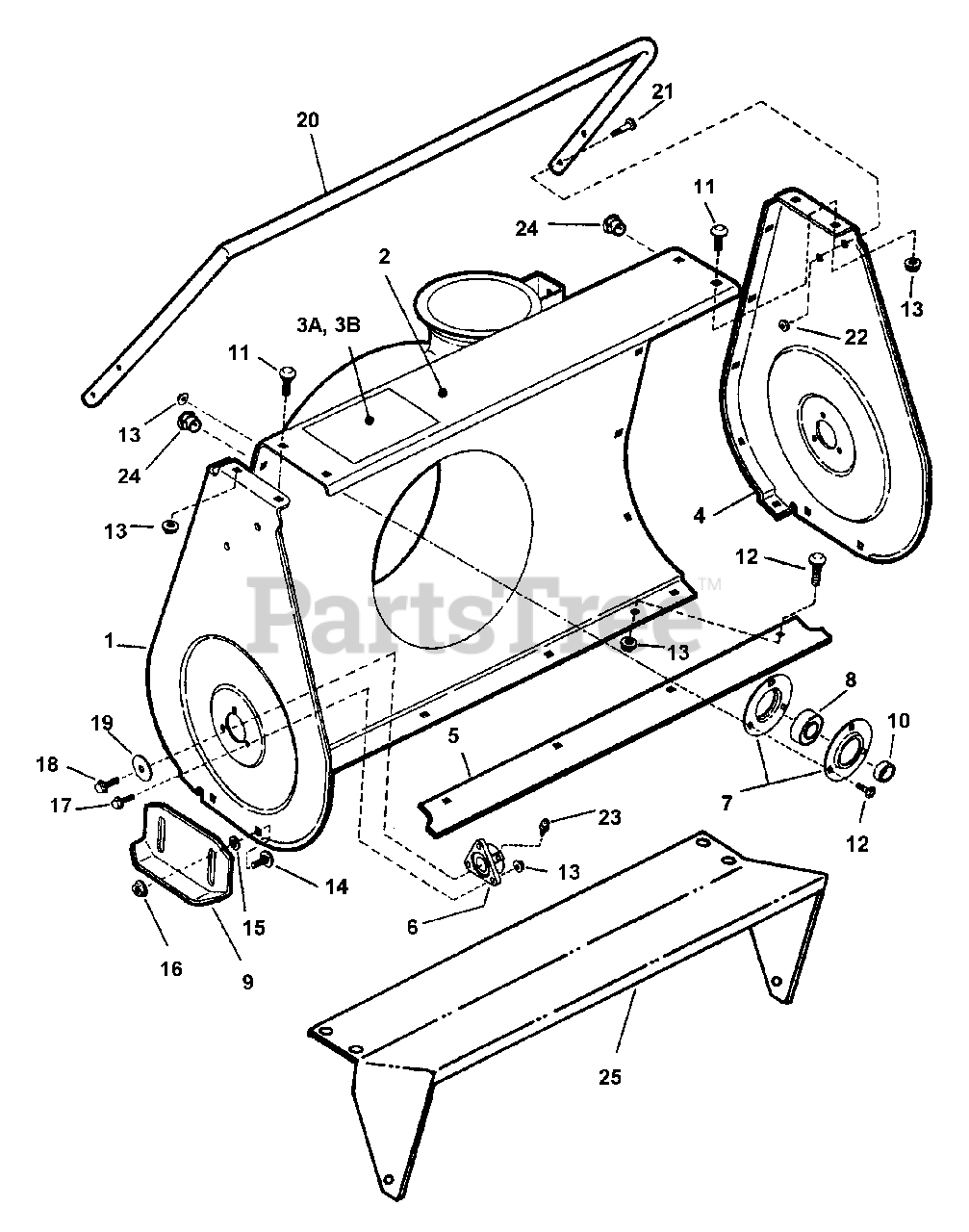

Collector Housing (3 Piece Bolted) Parts Diagram

  • Title

1

Snapper 7034285

PLATE, Right Side
(Superseded to 7034285YP)

Note: (I4223, I5523, I55223 EI55223 & I6223 Models)

$93.99

$

Usually ships in 2-12 days

0

Snapper 7034288

PLATE, Right Side
(Superseded to 7034288YP)

Note: (I7243 & EI7243 Models)

$82.99

$

Usually ships in 2-12 days

0

2

Snapper 7053412

ASSEMBLY, 22" Blower Housing
(Superseded to 7053412YP)

Note: (I4223, I5223, I55223 & I6223 Models)

$444.99

$

Usually ships in 2-12 days

0

Snapper 7053622

ASSEMBLY, 24" Blower Housing

Note: (I7243 Models)

$

$

Currently unavailable

3A

Snapper 7028280

DECAL, Foot Danger

$

$

Not available

3B

Snapper 7016578

DECAL, Danger (Collector)
(Superseded to 7016578YP)

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 7034284

PLATE, Left Side
(Superseded to 7034284YP)

Note: (I4223, I5223, I55223 EI55223 & I6223 Models)

$98.99

$

Usually ships in 2-12 days

0

Snapper 7028231

PLATE, Left Side

Note: (I7243 & EI7243 Models)

$

$

Not available

5

Snapper 7033298

BLADE, Scraper
(Superseded to 7033298BMYP)

Note: (I4223, I5223, I55223 EI55223 & I6223 Models)

$54.99

$

In Stock, only 2 left!

0

Snapper 7036163

BLADE, Scraper
(Superseded to 7036163YP)

Note: (I7243 & EI7243 Models)

$78.99

$

Usually ships in 2-12 days

0

6

Snapper 7028188

BEARING, Auger Shaft

Note: (I4223, I5223, I55223 EI55223 & I6223 Models)

$

$

Not available

Snapper 7018736

BEARING, Auger Shaft
(Superseded to 7051563YP)

Note: (I7243 & EI7243 Models)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7032455

HOUSING, Bearing

$

$

Not available

8

Snapper 7014608

BEARING, Ball
(Superseded to 7014608SM)

$36.99

$

Usually ships in 2-12 days

0

9

Snapper 7037982

SHOE, Skid
(Superseded to 7037982YP)

$

$

Not available

10

Snapper 7017865

SPACER, 3/4 x 1/4 x 1"

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7090999

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 7090999FS)

Note: (Truss Head Torx)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091573

BOLT, 1/4-20 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 10

0

14

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

15

Snapper 7032070

WASHER, 5/16 Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

19

Snapper 7016314

WASHER, 21/64" Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 7038230

DRIFT-CUTTER
(Superseded to 7038230YP)

Note: (I7243 & EI7243 Models Only)

$42.99

$

Usually ships in 2-12 days

0

Snapper 7061099

DRIFT-CUTTER
(Superseded to 7061099YP)

Note: Was 38201 (I55223 & EI55223 Models Only)

$52.99

$

Usually ships in 2-12 days

0

21

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 91059

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

Note: Was 91099

$

$

Not available

23

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

Note: (I7243 & EI7243 Models Only)

$4.49

$

In Stock, Qty 17

0

24

Snapper 7042894

PLUG, Dome 3/16" Diameter

$

$

Not available

25

Snapper 7034431

ADAPTER, Housing
(Superseded to 7034431YP)

$

$

Not available

Snapper 7034432

ADAPTER, Housing
(Superseded to 7034432YP)

$90.99

$

Usually ships in 2-12 days

0
