EI 7244 (84910) - Snapper 24" Snow Thrower, 7hp Augers, Impellar, Gear Case, Shaft Parts Diagram

24" Snow Thrower, 7hp

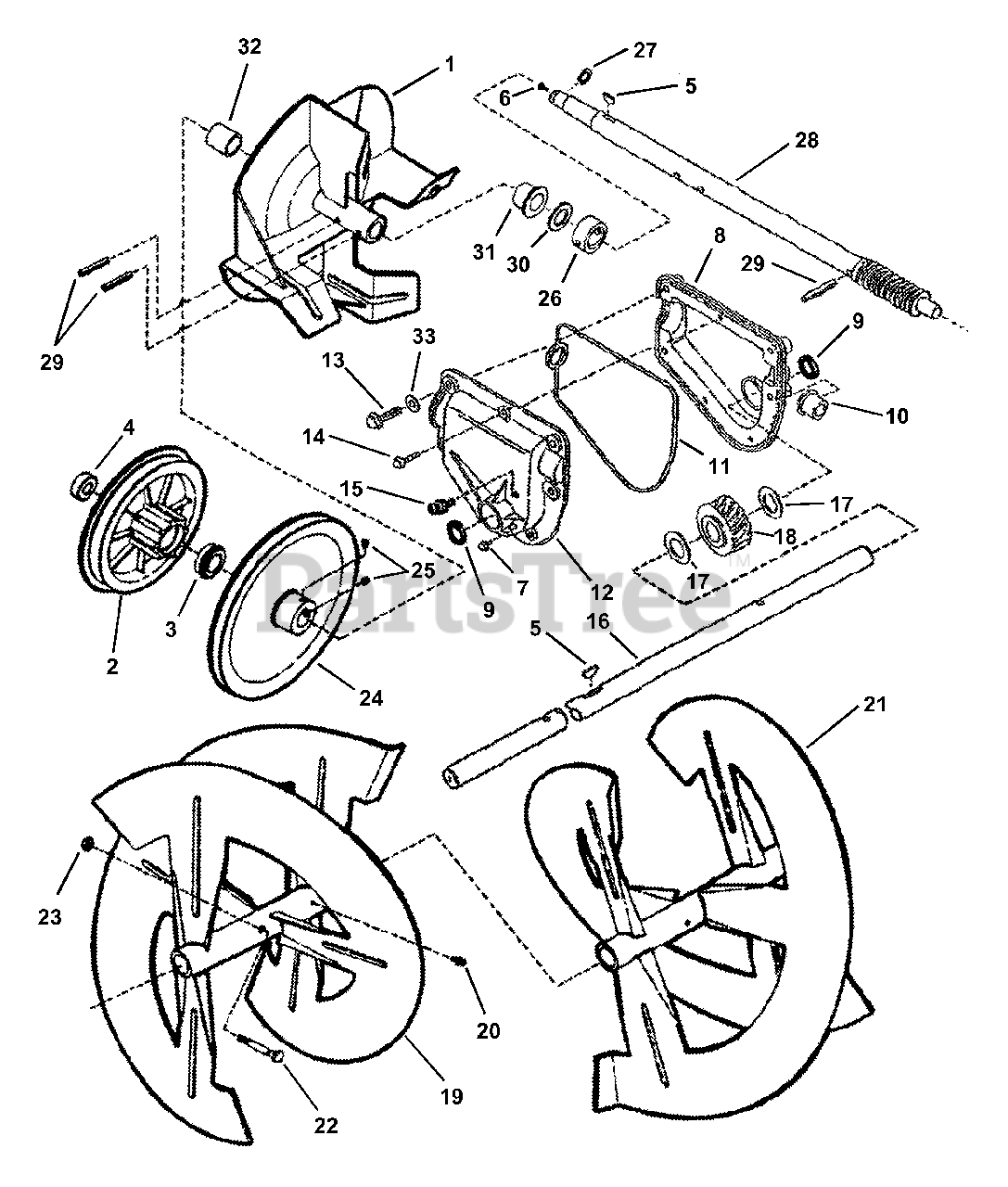

Augers, Impellar, Gear Case, Shaft Parts Diagram

  • Title

1

Snapper 7072423

WELDMENT, Impeller (Fan)
(Superseded to 7063159YP)

$481.99

$

Usually ships in 2-12 days

0

2

Snapper 7051566

ASSEMBLY, Drive Plate
(Superseded to 7051566YP)

Note: (Includes Items 3 & 4)

$159.99

$

Usually ships in 2-12 days

0

3

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7014295

BEARING, Ball
(Superseded to 7014295YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7010211

KEY, #9 (3/16 x 3/4") Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 5

0

6

Snapper 7090929

SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

8

Snapper 7019779

COVER, Gear Case (Left Hand)
(Superseded to 7019779YP)

$152.99

$

Usually ships in 2-12 days

0

9

Snapper 7015136

SEAL

$

$

Not available

10

Snapper 7015230

BUSHING
(Superseded to 7015230YP)

$5.49

$

In Stock, only 1 left!

0

11

Snapper 7015137

"O" RING
(Superseded to 7015137YP)

$20.99

$

In Stock, Qty 5

0

12

Snapper 7019780

COVER, Gear Case (Right Hand)
(Superseded to 7019780YP)

$71.99

$

Usually ships in 2-12 days

0

13

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

15

Snapper 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275

$3.99

$

In Stock, only 2 left!

0

16

Snapper 7029554

SHAFT, Auger
(Superseded to 7029554YP)

$91.99

$

Usually ships in 2-12 days

0

17

Snapper 7013852

WASHER, Thrust
(Superseded to 7013852YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7027652

GEAR, Worm
(Superseded to 7027652YP)

$106.99

$

In Stock, only 2 left!

0

19

Snapper 7049969

AUGER, (Left Hand)

$

$

Not available

20

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

Note: (for 3/16" dia. hole)

$3.49

$

In Stock, Qty 6

0

21

Snapper 7049968

AUGER, (Right Hand)

$

$

Not available

22

Snapper 1668344

PIN, Shear, .248 ID. X 1.75 LG
(Superseded to 703063)

Note: was 7015257

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1918447

COTTER PIN, .094 X0.750 BLK
(Superseded to 703312)

Note: was 7090372

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes Setscrews)

$82.99

$

Usually ships in 2-12 days

0

25

Snapper 7090201

SCREW, 5/16-18 x 5/16 Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

26

Snapper 7021961

COLLAR
(Superseded to 7021961YP)

$27.99

$

Usually ships in 2-12 days

0

27

Snapper 7010776

RING, 1/2" Heavy Duty External Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 4 left!

0

28

Snapper 7019783

SHAFT, Pinned Impeller (Worm)
(Superseded to 7019783YP)

$95.99

$

In Stock, only 1 left!

0

29

Snapper 7090842

ROLL-PIN, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 7032479

WASHER, Thrust
(Superseded to 7032479YP)

$

$

Not available

31

Snapper 7015363

BEARING
(Superseded to 7015363SM)

$

$

Not available

32

Snapper 7017865

SPACER, .76 I.D. x 1" O.D. x .25" Thick

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 7090987

WASHER, Shim

$

$

Not available
