EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) MUFFLER (1) Parts Diagram

Generator, Made in Japan

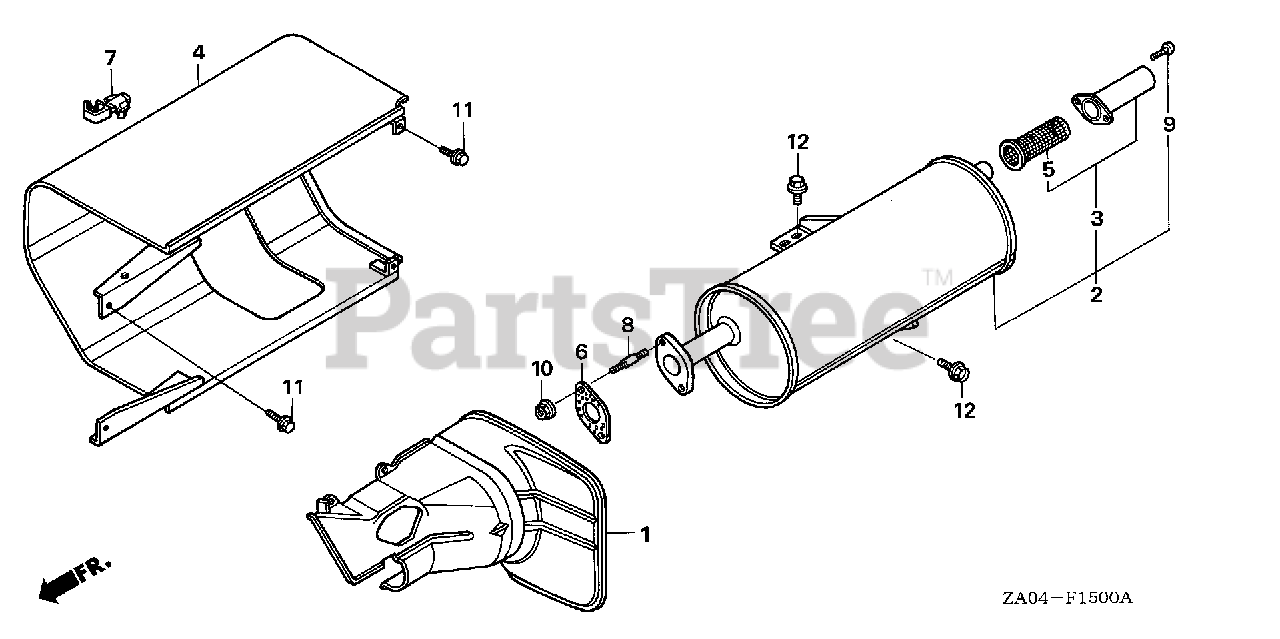

MUFFLER (1) Parts Diagram

  • Title

2

Honda 183A1-ZA0-631

MUFFLER

Note: Use up to Frame SN 1014720.

$

$

Currently unavailable

2

Honda 183B1-ZA0-631

SEE PART DETAILS - PRI; MUFFLER (NOT AVAILABLE)

Note: Use from Frame SN 1014721.

$

$

Currently unavailable

3

Honda 183A5-ZA0-630

CAP SET, ARRESTER

Note: Use up to Frame SN 1014720.

$

$

Not available

3

Honda 183B5-ZA0-630

CAP SET, ARRESTER (NOT AVAILABLE)

Note: Use from Frame SN 1014721.

$

$

Not available

4

Honda 18325-ZA0-020

SEPARATOR, MUFFLER

$177.99

$

Usually ships in 3-6 days

0

5

Honda 18355-890-630

ARRESTER, SPARK

$15.99

$

Usually ships in 3-6 days

0

6

Honda 18381-ZA0-800

GASKET, MUFFLER

$5.99

$

Usually ships in 3-6 days

0

8

Honda 92900-08019-0B

BOLT, STUD (8X35)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

10

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

12

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, Qty 6

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, Qty 6

0
