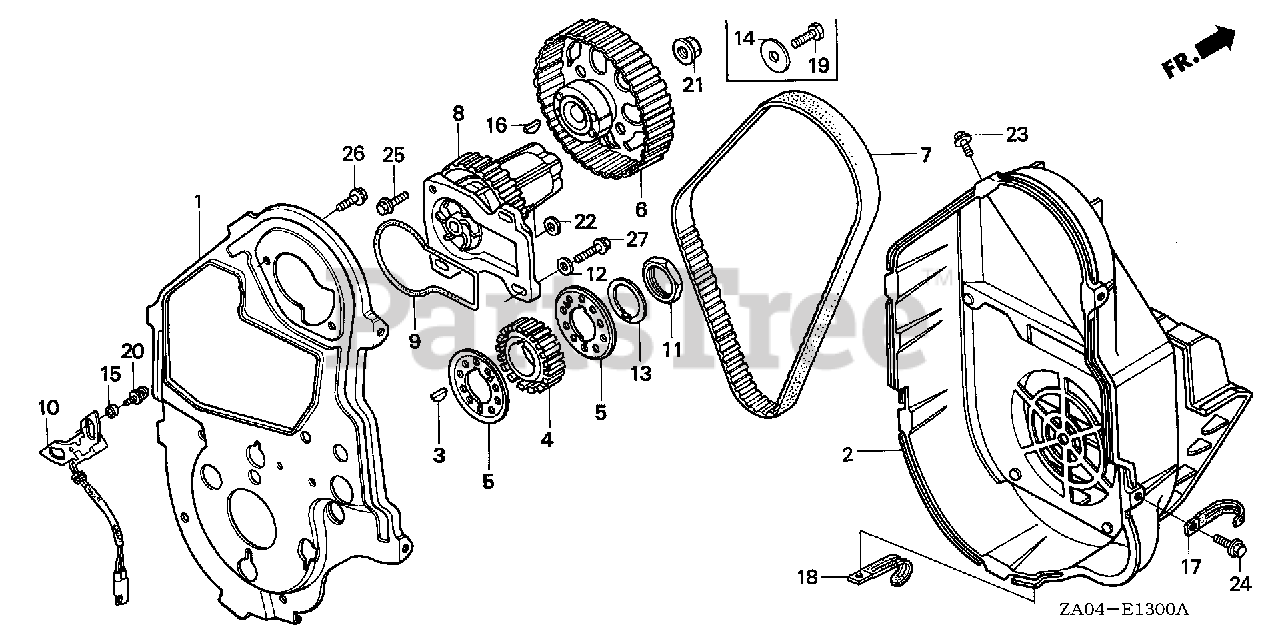

EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) TIMING BELT Parts Diagram

Generator, Made in Japan

TIMING BELT Parts Diagram

  • Title

1

Honda 11810-ZA0-601

COVER B, TIMING BELT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 11840-ZA0-000

COVER A, TIMING BELT

$

$

Currently unavailable

3

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.49

$

In Stock, Qty 15

0

4

Honda 14311-ZA0-005

PULLEY, TIMING

$39.99

$

Usually ships in 3-6 days

0

5

Honda 14312-ZA0-000

FLANGE, TIMING PULLEY

$5.99

$

Usually ships in 3-6 days

0

6

Honda 14101-ZA0-000

SEE PART DETAILS - SUP; CAMSHAFT

$

$

Not available

6

Honda 14320-ZA0-000

SEE PART DETAILS - SUP; PULLEY, CAMSHAFT

$

$

Not available

7

Honda 14400-ZA0-003

BELT, TIMING

$57.99

$

Usually ships in 3-6 days

0

8

Honda 19200-ZA0-010

SEE PART DETAILS - SUP; WATER PUMP
(Superseded to 19200-ZA0-020)

$197.99

$

Usually ships in 3-6 days

0

8

Honda 19200-ZA0-020

SEE PART DETAILS - PRI; WATER PUMP

$197.99

$

Usually ships in 3-6 days

0

9

Honda 19222-ZA0-004

O-RING, WATER PUMP

$5.49

$

In Stock, only 4 left!

0

10

Honda 30400-882-601

COIL ASSY., PULSER (NOT AVAILABLE)

$

$

Not available

11

Honda 90202-ZA0-000

NUT, LOCK (30MM)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

In Stock, only 3 left!

0

13

Honda 90451-ZA0-000

WASHER, LOCK (30MM)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90563-706-000

WASHER, WHEEL (6MM)

$

$

Not available

15

Honda 90705-882-600

PIN, DOWEL (7X4.5)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90741-969-000

KEY, WOODRUFF (16X12)

$

$

Not available

19

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

20

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

23

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

24

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

24

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 2 left!

0

25

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 96001-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 5

0

27

Honda 96001-06022-00

BOLT, FLANGE (6X22)

$1.49

$

In Stock, only 3 left!

0
