ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Controls Group Parts Diagram

38" Lawn Tractor, 12.5hp

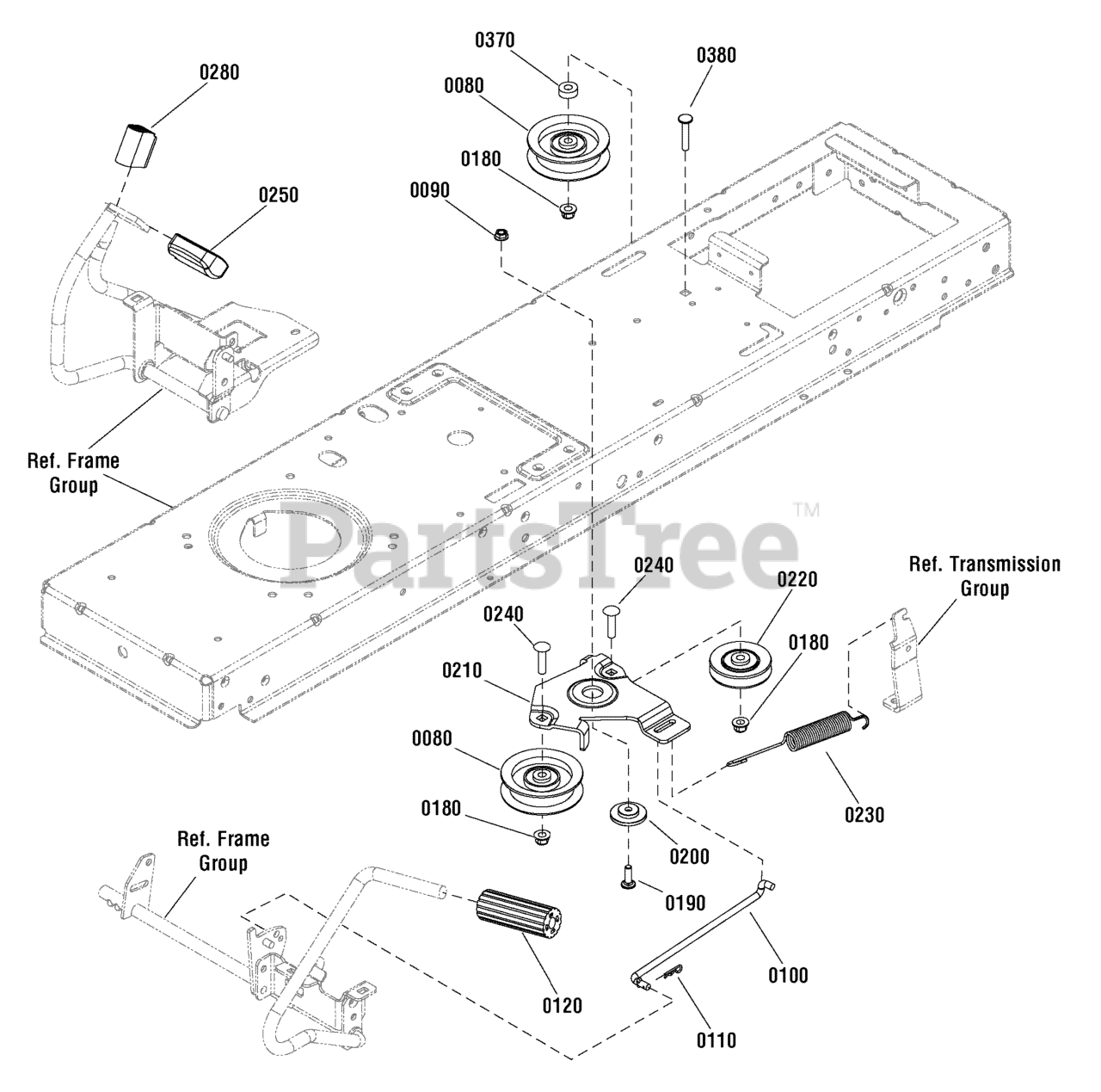

Controls Group Parts Diagram

  • Title

0080

Murray 1728000

PULLEY, Idler
(Superseded to 1728000SM)

$18.99

$

Usually ships in 2-12 days

0

0090

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Murray 1750170

ROD, Brake Return
(Superseded to 1750170YP)

$12.99

$

Usually ships in 2-12 days

0

0110

Murray 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0120

Murray 1727261

PEDAL, Brake
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

0180

Murray 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0200

Murray 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 4 left!

0

0210

Murray 1727894

BRACKET, Idler
(Superseded to 1727894SM)

$32.99

$

Usually ships in 2-12 days

0

0220

Murray 1728001

PULLEY, 3 OD, 3/8 ID
(Superseded to 1728001SM)

$18.99

$

In Stock, only 3 left!

0

0230

Murray 1729620

SPRING, Extension
(Superseded to 1729620SM)

$8.49

$

Usually ships in 2-12 days

0

0240

Murray 1931352

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

0250

Murray 1721675

PAD, Foot Pedal, Forward
(Superseded to 1721675SM)

$8.99

$

Usually ships in 2-12 days

0

0280

Murray 1727259

PAD, Foot Pedal, Reverse
(Superseded to 1727259SM)

$8.49

$

Usually ships in 2-12 days

0

0370

Murray 1667811

SPACER
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 6

0

0380

Murray 1931353

BOLT, Carriage, Short Neck, 3/8-16 x 1-3/4, G5
(Superseded to 703858)

$4.99

$

In Stock, Qty 5

0
