ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Electrical Group Parts Diagram

38" Lawn Tractor, 12.5hp

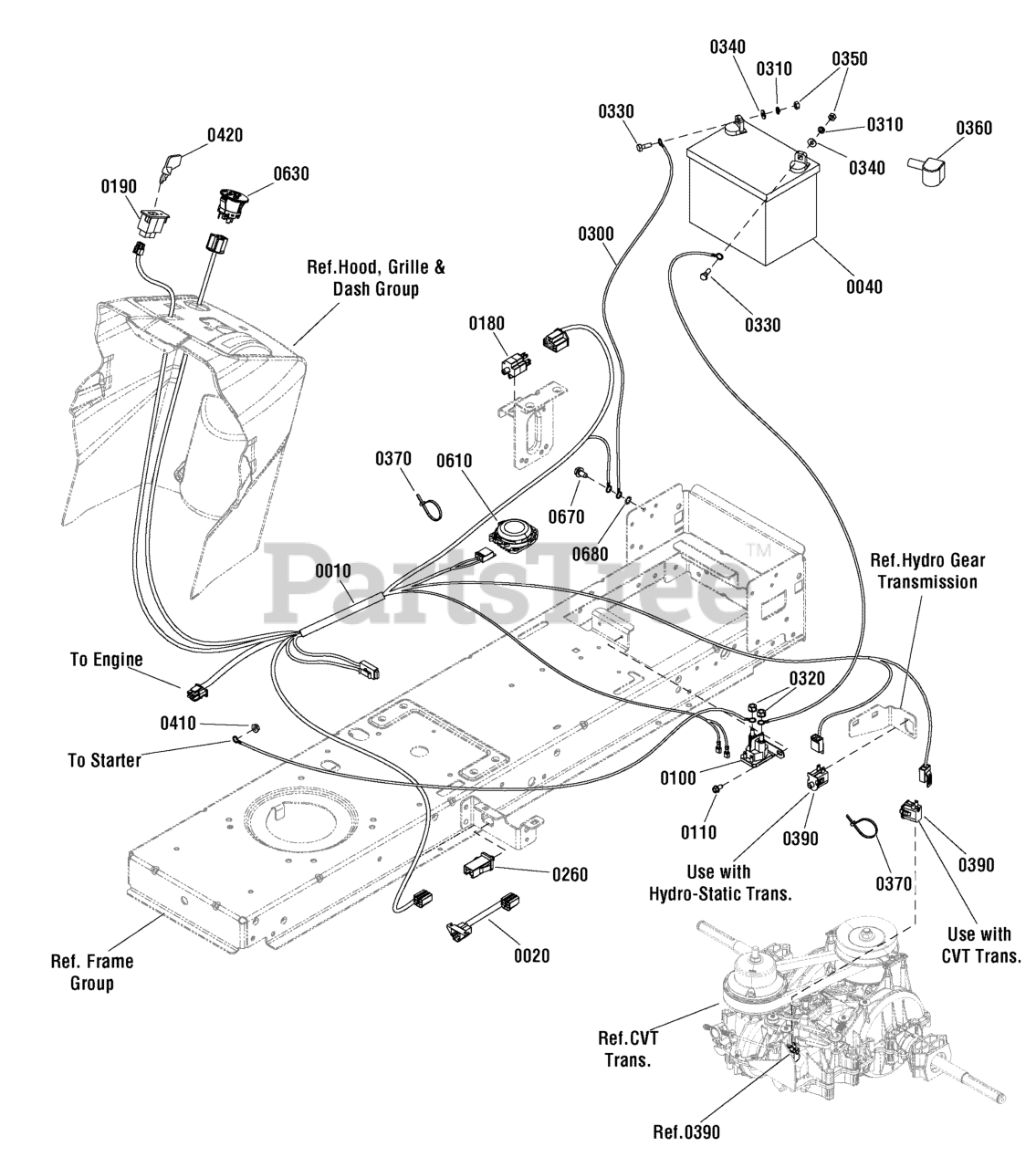

Electrical Group Parts Diagram

  • Title

0010

Murray 1751101

WIRING HARNESS
(Superseded to 1751101YP)

$122.99

$

Usually ships in 2-12 days

0

0020

Murray 1734025

WIRES & CONNECTORS ASSEMBLY, Jumper
(Superseded to 1734025SM)

$14.99

$

Usually ships in 2-12 days

0

0040

* BATTERY, 7U1L

$

$

Not available

0100

Murray 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0110

Murray 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1751449

SWITCH, Plunger, Snap In (NO/NC/NC)
(Superseded to 1751449YP)

$24.99

$

In Stock, only 1 left!

0

0190

Murray 1726556

SWITCH, Reverse Mow Module
(Superseded to 1726556SM)

$

$

Not available

0260

Murray 7022886

SWITCH, Push Button, (NO/NC)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0300

Murray 1752063

CABLE, Electric, #8 x 14"
(Superseded to 1752063YP)

$6.99

$

Usually ships in 2-12 days

0

0310

Murray 2816964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Murray 2860750

NUT, Hex Lock, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0330

Murray 2823341

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Murray 2821319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0350

Murray 2816622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0360

Murray 1677296

BOOT, Insulator, Battery Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

0370

Murray 1701011

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0410

Murray 1960294

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

0420

Murray 1726557

KEY, No Mow Module (Yellow)
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 20+

0

0610

Murray 1718981

SWITCH, Operator Present
(Superseded to 1718981SM)

$21.99

$

In Stock, only 1 left!

0

0630

Murray 1737959

SWITCH, Ignition (Without key) (Key Blister Pack #1750464)
(Superseded to 7600215YP)

$64.99

$

In Stock, only 1 left!

0

0670

Murray 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0680

Murray 2820426

LOCKWASHER, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

0700

Murray 1751523

SWITCH, Snap in Key
(Superseded to 1751523YP)

$17.99

$

Usually ships in 2-12 days
