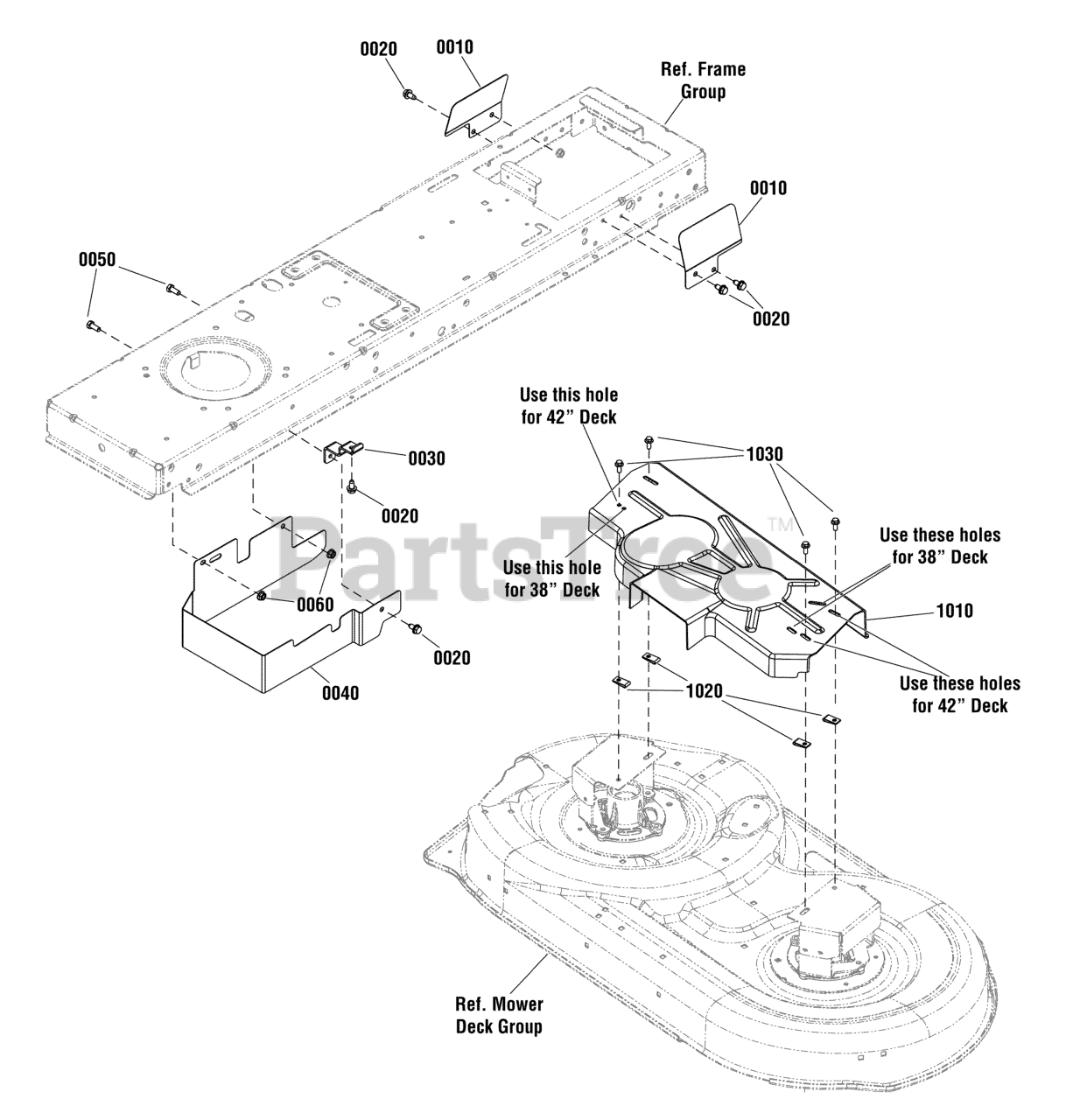

ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) French Guard Group Parts Diagram

38" Lawn Tractor, 12.5hp

French Guard Group Parts Diagram

  • Title

0010

Murray 1752039BMYP

GUARD, Rear Pulley

$13.99

$

Usually ships in 2-12 days

0

0020

Murray 1930601SM

CAPSCREW, Hex Washer Head, 5/16-1/8 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0030

Murray 1752160BMYP

BRACKET, Guard Support

$11.99

$

Usually ships in 2-12 days

0

0040

Murray 1751852BMYP

GUARD, Engine Pulley

$51.99

$

Usually ships in 2-12 days

0

0050

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0060

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

1010

Murray 1751850YP

GUARD, Mower Housing

$116.99

$

Usually ships in 2-12 days

0

1020

Murray 1926018SM

NUT, Speed, 1/4

$4.49

$

In Stock, Qty 12

0

1030

Murray 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0
