ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Hood, Grille & Dash Group Parts Diagram

38" Lawn Tractor, 12.5hp

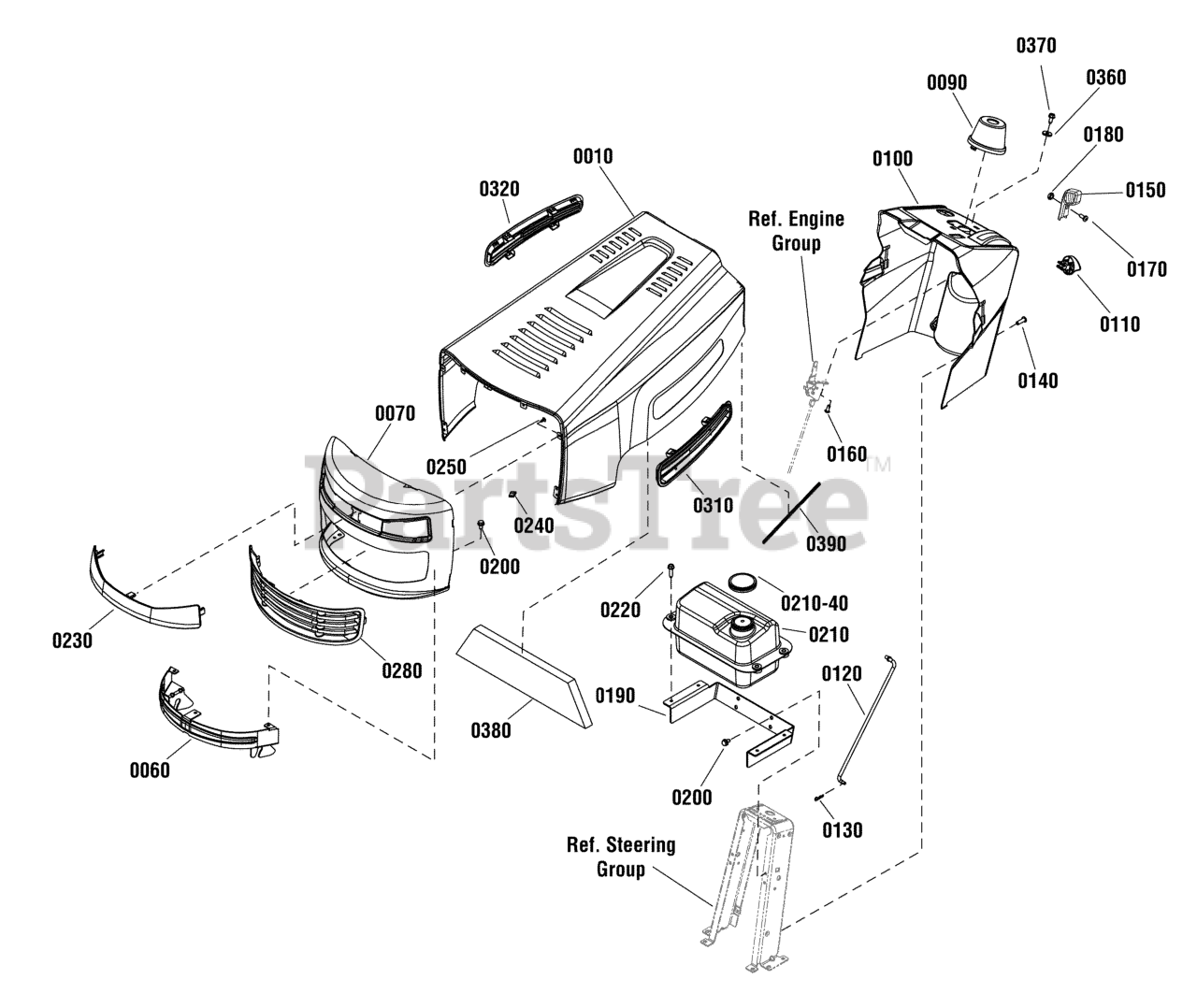

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Murray 1750971BNYP

HOOD

$284.99

$

Usually ships in 2-12 days

0

0060

Murray 1750659BMYP

BRACKET, Hinge Hood / Bumper

$48.99

$

Usually ships in 2-12 days

0

0070

Murray 1751786BFYP

GRILLE

$104.99

$

Usually ships in 2-12 days

0

0090

Murray 1751114YP

COVER, Steering Shaft

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 1750990YP

DASH

$188.99

$

Usually ships in 2-12 days

0

0110

Murray 1721891SM

KNOB, Push On

$9.99

$

In Stock, Qty 8

0

0120

Murray 1738929YP

ROD, Parking Brake

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0140

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0160

Murray 1739329YP

SCREW, PT 5 MM DIA. X 12 MM LONG

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 797483

SCREW, Phillips Head, 8-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 7091018YP

NUT, Hex, #8C
(Superseded to 703460)

$3.99

$

In Stock, Qty 11

0

0190

Murray 1750974BMYP

SUPPORT, Fuel Tank

$36.99

$

Usually ships in 2-12 days

0

0200

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0210

Murray 1750972YP

TANK, Fuel

$168.99

$

Usually ships in 2-12 days

0

0210-40

Murray 1751942YP

CAP, Fuel, Vented

Note: (Included with Ref. No. 0210)

$16.99

$

Usually ships in 2-12 days

0

0220

Murray 1931202SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 12

0

0230

Murray 1751735YP

INSERT, Headlight

$30.99

$

Usually ships in 2-12 days

0

0240

Murray 028X83MA

S-CLIP

$3.99

$

In Stock, only 2 left!

0

0250

Murray 26X270MA

SCREW, Thread Forming

$4.49

$

In Stock, only 3 left!

0

0280

Murray 7102649YP

INSERT, Grille

$24.99

$

Usually ships in 2-12 days

0

0310

Murray 1001800MA

INSERT, Left Hood

$15.99

$

Usually ships in 2-12 days

0

0320

Murray 1001801MA

INSERT, Right Hood

$15.99

$

Usually ships in 2-12 days

0

0360

Murray 1919381SM

WASHER, Flat, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, Qty 11

0

0370

Murray 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0380

Murray 1752484YP

FOAM, Hood

$19.99

$

Usually ships in 2-12 days

0

0390

Murray 1752551YP

STRIP, Trim, 10"

$12.99

$

Usually ships in 2-12 days

0
