ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Lift Group Parts Diagram

38" Lawn Tractor, 12.5hp

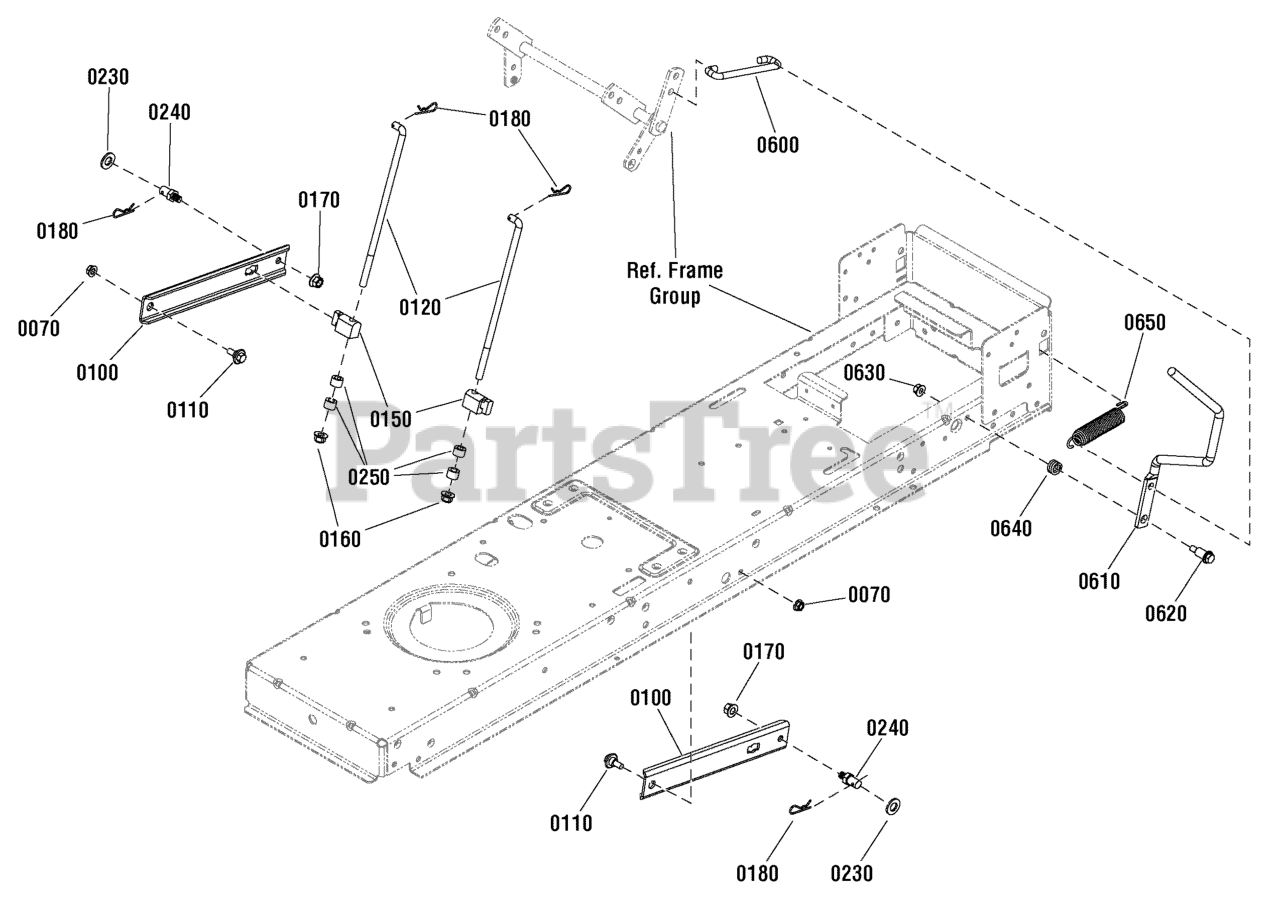

Lift Group Parts Diagram

  • Title

0070

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1731417A

ARM, Rear Lift
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0110

Murray 1732426

BOLT, Shoulder, 5/16-18
(Superseded to 1732426SM)

$4.49

$

In Stock, Qty 7

0

0120

Murray 1727955

ROD, Lower Lift
(Superseded to 1727955SM)

$19.99

$

In Stock, Qty 12

0

0150

Murray 1731894

TRUNNION
(Superseded to 1731894SM)

$9.99

$

In Stock, Qty 15

0

0160

Murray 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 13

0

0180

Murray 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0230

Murray 1960170

WASHER, 1/2
(Superseded to 703853)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 721221

PIN, Threaded Shoulder, 3/8-16
(Superseded to 704054)

$7.49

$

Usually ships in 2-12 days

0

0250

Murray 1666294

SPACER, 3/8 ID x 11/16 OD x 7/16"
(Superseded to 1666294SM)

$5.49

$

In Stock, Qty 20+

0

0600

Murray 1727954

ROD, Lift
(Superseded to 1727954SM)

$7.49

$

Usually ships in 2-12 days

0

0610

Murray 1751772

ROD, Mower Lift
(Superseded to 1751772YP)

$32.99

$

Usually ships in 2-12 days

0

0620

Murray 1728976

BOLT, Shoulder, 5/16-18
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

0630

Murray 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 18

0

0640

Murray 2162085

SPRING, Compression
(Superseded to 2162085SM)

$6.99

$

In Stock, Qty 6

0

0650

Murray 1715772

SPRING, Extension, 5-1/4"
(Superseded to 1715772SM)

$14.99

$

In Stock, Qty 9

0
