ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Seat Deck Group Parts Diagram

38" Lawn Tractor, 12.5hp

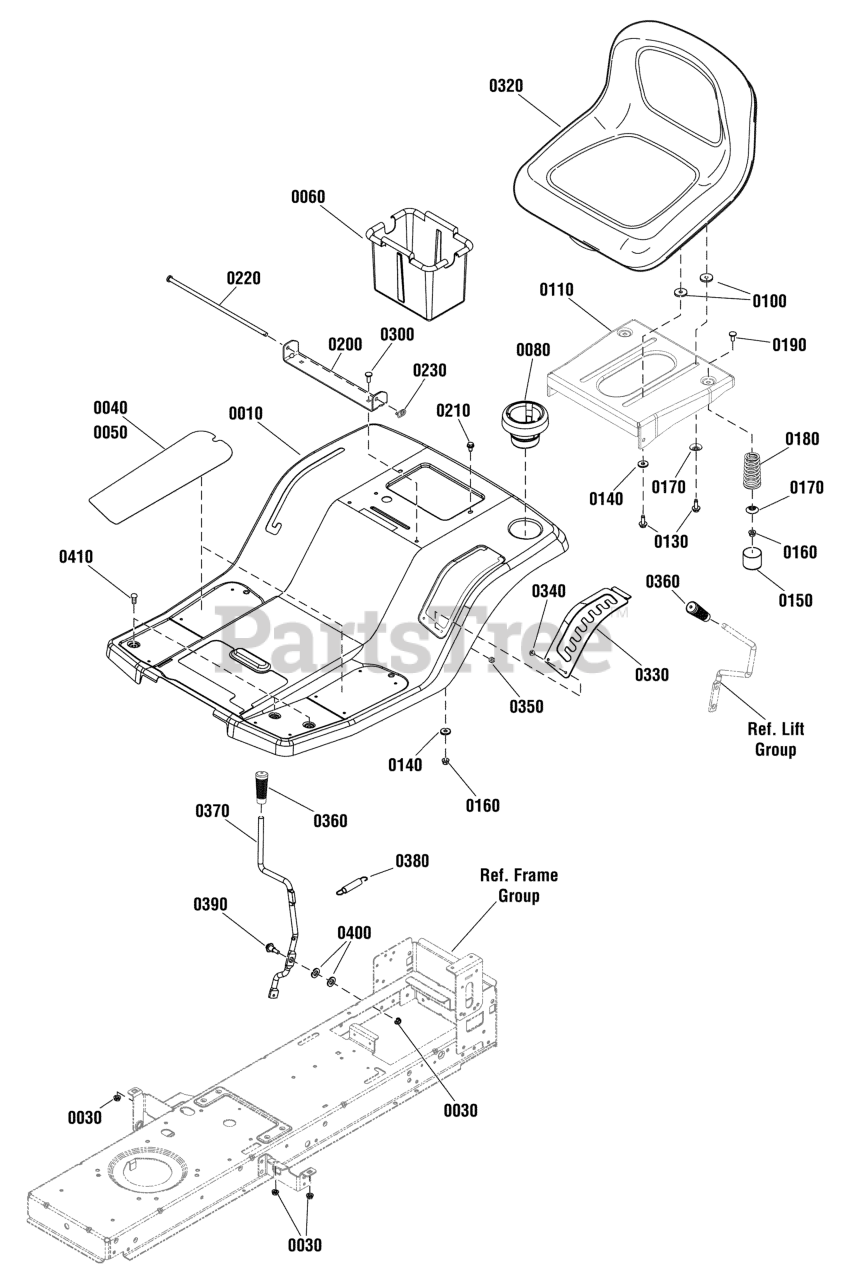

Seat Deck Group Parts Diagram

  • Title
0010

Murray 1750975BFYP

DECK, Seat

$433.99

$

Usually ships in 2-12 days

0

0030

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 094998MA

MAT, Running Board, RH

$

$

Not available

0050

Murray 1751116YP

MAT, Running Board, LH

$13.99

$

Usually ships in 2-12 days

0

0060

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

0080

Murray 1001542MA

HOLDER, Beverage

$11.99

$

Usually ships in 2-12 days

0

0100

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0110

Murray 1752228BMYP

SUPPORT, Seat

$66.99

$

Usually ships in 2-12 days

0

0130

Murray 770697

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1

$

$

Not available

0140

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

0150

Murray 1751945YP

COVER, Spring

$5.99

$

Usually ships in 2-12 days

0

0160

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0180

Murray 1751810YP

SPRING, Compression

$13.99

$

Usually ships in 2-12 days

0

0190

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1750968BMYP

BRACKET, Seat Pivot

$18.99

$

Usually ships in 2-12 days

0

0210

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0220

Murray 1751493YP

ROD, Seat Pivot

$10.99

$

Usually ships in 2-12 days

0

0230

Murray 7091593SM

PIN, Cotter, Self Lock, 3/8
(Superseded to 703355)

$3.99

$

In Stock, Qty 20+

0

0300

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 14

0

0320

Murray 1752062YP

SEAT ASSEMBLY
(Superseded to 1761589YP)

$213.99

$

Usually ships in 2-12 days

0

0330

Murray 1751159BMYP

QUADRANT, Mower Lift

$18.99

$

Usually ships in 2-12 days

0

0340

Murray 009X47MA

BOLT, Shoulder

$4.49

$

Usually ships in 2-12 days

0

0350

Murray 015X81MA

NUT, McLean Lock, #10-24

$4.99

$

Usually ships in 2-12 days

0

0360

Murray 092697MA

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0370

Murray 1750976YP

ROD, Manual PTO, J Hook, RH

$30.99

$

Usually ships in 2-12 days

0

0380

Murray 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 12

0

0390

Murray 1752072YP

BOLT, Shoulder

$4.99

$

Usually ships in 2-12 days

0

0400

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0410

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0
