ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Steering Group Parts Diagram

38" Lawn Tractor, 12.5hp

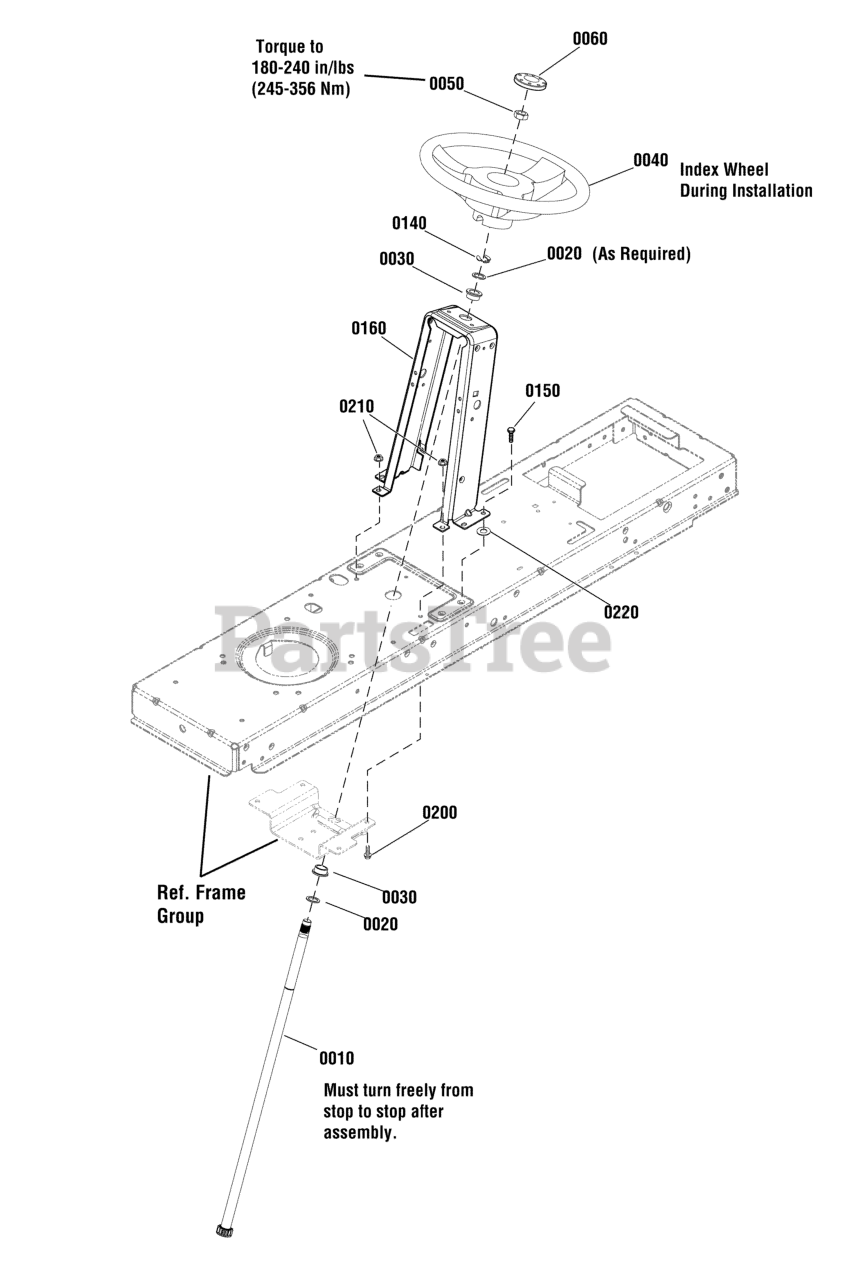

Steering Group Parts Diagram

  • Title
0010

Murray 1750991

SHAFT, Steering
(Superseded to 1750991YP)

$254.99

$

Usually ships in 2-12 days

0

0020

Murray 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 16

0

0030

Murray 1729665

BUSHING, Steering
(Superseded to 1729665SM)

$5.99

$

In Stock, Qty 20+

0

0040

Murray 1728069

STEERING WHEEL
(Superseded to 1728069SM)

$74.99

$

Usually ships in 2-12 days

0

0050

Murray 1960576

NUT, Hex Lock, ESNA Light, 5/8-18
(Superseded to 1960576SM)

$5.99

$

In Stock, Qty 9

0

0060

Murray 1725024

CAP, Steering Wheel
(Superseded to 1725024SM)

$7.49

$

Usually ships in 2-12 days

0

0140

Murray 1611710

RING, Klipring, 3/4
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 19

0

0150

Murray 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0160

Murray 1750973BZ

TOWER, Steering
(Superseded to 1750973BZYP)

$35.99

$

Usually ships in 2-12 days

0

0200

Murray 1930591

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0220

Murray 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 19

0
