ELP 21502KWV (84643) - Snapper 21" Walk-Behind Mower, 5hp HANDLES AND CONTROLS (2001 Model Year) Parts Diagram

21" Walk-Behind Mower, 5hp

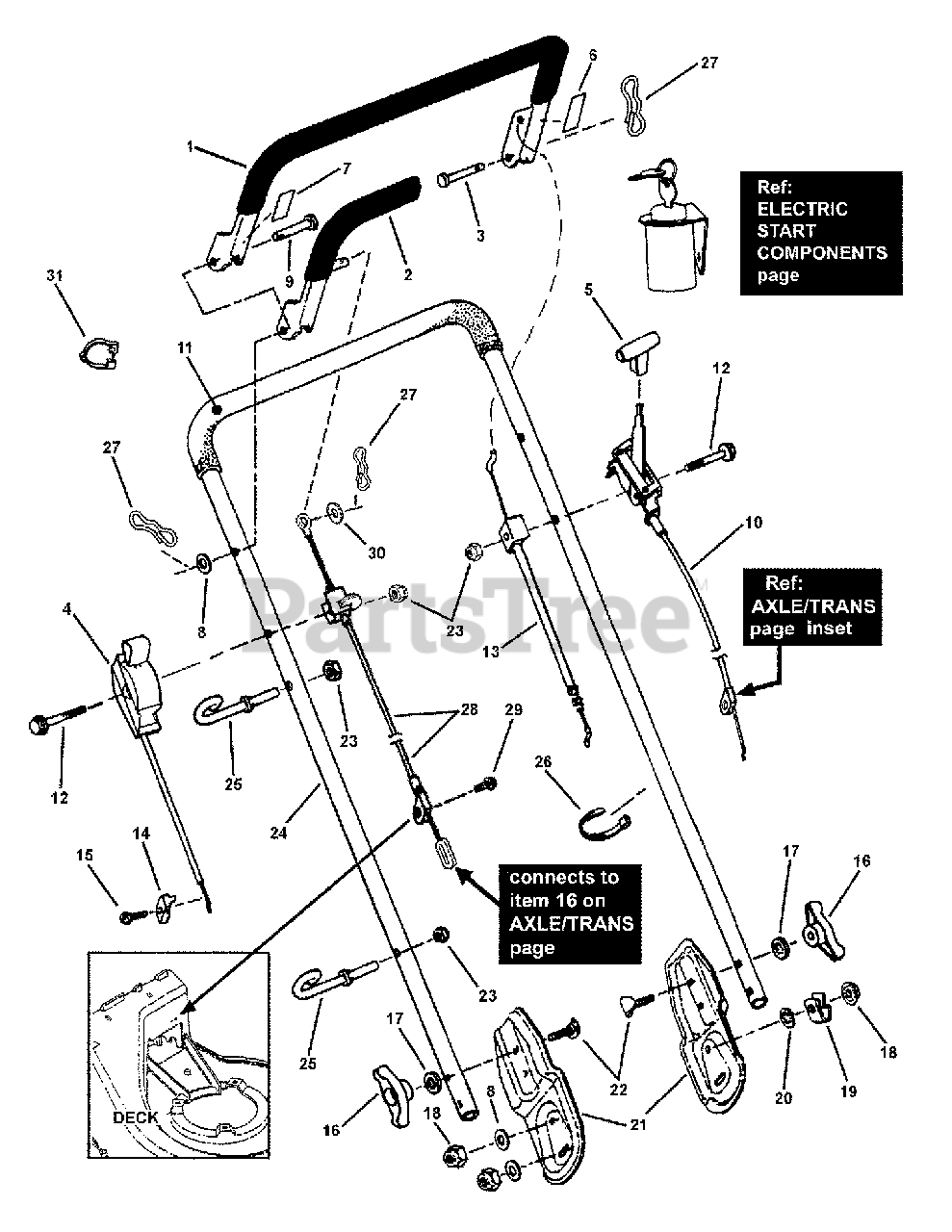

HANDLES AND CONTROLS (2001 Model Year) Parts Diagram

  • Title
1

Snapper Part# 7035954

CONTROL, Blade (ELP21502KWV)
Usually ships same day

Not available

$

$

1

Snapper Part# 7041734

CONTROL, Blade (ELP21602 & ELP21602E)
Usually ships same day

Currently unavailable

$

$

2

Snapper Part# 7028815

WELDMENT, Ground Speed Control (Coated)
(Superseded to 7028815YP)
Usually ships in 6 to 12 days

$

$39.12

0

3

Snapper Part# 7091645

PIN, 5/16 x 1-7/16" Clevis
(Superseded to 7079831YP)
Usually ships in 6 to 12 days

$

$3.46

0

4

Snapper Part# 7029036

CONTROL, Engine Speed (+49.8/1.41")
(Superseded to 7029036YP)

Note: used on ELP21602 & ELP21602E

Usually ships in 6 to 12 days

$

$19.00

0

4

Snapper Part# 7026467

CONTROL, Engine Speed (+49/2")
(Superseded to 7026467YP)

Note: used onELP21502KWV

Usually ships in 6 to 12 days

$

$27.78

0

5

Snapper Part# 7028396

KNOB, Engine Speed & Ground Speed Control
(Superseded to 7028396YP)
Usually ships in 6 to 12 days

$

$5.31

0

6

Snapper Part# 7029431

DECAL, (OPC) Operator Presence Control
(Superseded to 7029431YP)
Usually ships in 6 to 12 days

$

$5.65

0

7

Snapper Part# 7029432

DECAL, Ground Drive, (Cast Al Comm)
(Superseded to 7029432YP)
Usually ships in 6 to 12 days

$

$10.45

0

8

Snapper Part# 7091076

WASHER, 5/16" Flat
(Superseded to 703350)
Usually ships in 1 day

$

$2.96

0

9

Snapper Part# 7091644

PIN, 5/16 x 1-3/4" Clevis
(Superseded to 704029)
Usually ships in 1 day

$

$2.85

0

10

Snapper Part# 7028886

CONTROL, Ground Speed (+56/1.85")
(Superseded to 7028886YP)
Usually ships same day

Not available

$

$

11

Snapper Part# 7026216

GRIP, Foam (7/8" I.D. x 21-1/2" long)
(Superseded to 7026216SM)

Note: used on ELP21502KWV

Usually ships in 6 to 12 days

$

$21.57

0

11

Snapper Part# 7074422

GRIP, Foam (1" x 21-1/2" long)
(Superseded to 7074422SM)

Note: used on ELP21602 & ELP21602E

Usually ships same day

Not available

$

$

12

Snapper Part# 7091251

SCREW, 1/4-20 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 703821)
Usually ships in 6 to 12 days

$

$3.41

0

13

Snapper Part# 7028803

*CABLE ASSEMBLY, Blade Control (48.88" long)
(Superseded to 7028803YP)

Note: used on ELP21602 & ELP21602E (Snapper P/N & Rev. # stamped on cable)

Usually ships in 1 day

$

$82.72

0

13

Snapper Part# 7028883

*CABLE ASSEMBLY, Blade Control (51.97" long)
(Superseded to 7028883YP)

Note: used on ELP21502KWV (Snapper P/N & Rev. # stamped on cable)

Usually ships in 6 to 12 days

$

$17.99

0

14

Snapper Part# 7023153

CLAMP, Engine Speed (3-Speed Control)
(Superseded to 7023153YP)
Usually ships in 6 to 12 days

$

$3.46

0

15

Snapper Part# 7023154

SCREW, #10-32 x 5/8" Slotted Hex Head, Self-Tap
(Superseded to 7023154YP)
Usually ships in 6 to 12 days

$

$3.12

0

16

Snapper Part# 7035744

KNOB, 5/16-18 Thread
(Superseded to 703065)
Usually ships in 1 day

$

$5.31

0

17

Snapper Part# 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)
Usually ships in 1 day

$

$3.13

0

18

Snapper Part# 7091646

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)
Usually ships in 1 day

$

$3.02

0

19

Snapper Part# 7026436

CLAMP, Double Tube
(Superseded to 7026436YP)
Usually ships in 6 to 12 days

$

$3.12

0

20

Snapper Part# 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)
Usually ships in 1 day

$

$2.74

0

21

Snapper Part# 7034329

BRACKET, Handle (Black)
Usually ships same day

Not available

$

$

21

Snapper Part# 7034848

BRACKET, Handle (Yellow Chromate)
Usually ships same day

Not available

$

$

22

Snapper Part# 7091189

SCREW, 5/16-18 x 2" Square Neck Curved Head
(Superseded to 703059)
Usually ships in 1 day

$

$3.13

0

23

Snapper Part# 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)
Usually ships in 1 day

$

$3.35

0

24

Snapper Part# 7046995

HANDLE, Upper (ELP21502KWV)
(Superseded to 7040950YP)
Usually ships in 6 to 12 days

$

$45.73

0

24

Snapper Part# 7040950

HANDLE, Upper (ELP21602 & ELP21602E)
(Superseded to 7040950YP)
Usually ships in 6 to 12 days

$

$45.73

0

25

Snapper Part# 7046465

GUIDE, Rope (1/4-20 thread)
(Superseded to 7046465SM)
Usually ships same day

Not available

$

$

26

Snapper Part# 7024641

TIE, Wire 1.29" long (Black)
(Superseded to 7024641YP)
Usually ships in 6 to 12 days

$

$4.19

0

27

Snapper Part# 7073821

PIN, Bow-Tie Locking Cotter
(Superseded to 7073821YP)
Usually ships in 1 day

$

$3.12

0

28

Snapper Part# 7046518

CABLE, Traction Adjustable (51.20/6.38")
(Superseded to 7046518YP)
Usually ships in 6 to 12 days

$

$31.29

0

29

Snapper Part# 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap
(Superseded to 7091075SM)
Usually ships in 1 day

$

$3.02

0

30

Snapper Part# 7091702

WASHER, 3/16" Flat
(Superseded to 7091702YP)
Usually ships in 6 to 12 days

$

$3.23

0

31

Snapper Part# 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)
Usually ships in 1 day

$

$2.85
