ELP 21550KWV (82433) - Snapper 21" Walk-Behind Mower, 5.5hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp

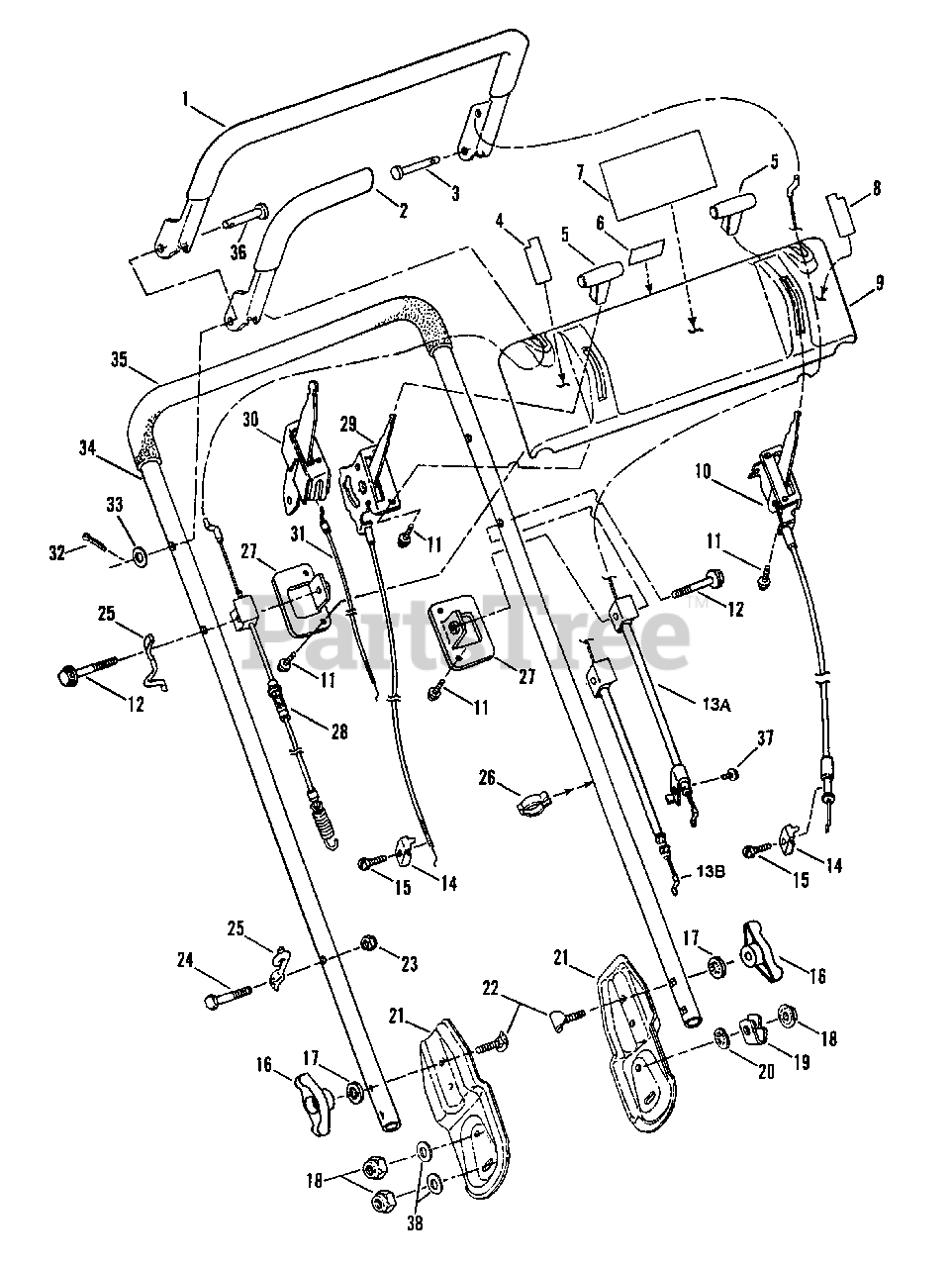

Handles & Controls Parts Diagram

  • Title

1

Snapper 7026422

CONTROL, Blade
(Superseded to 7026422YP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7026389

CONTROL, Traction
(Superseded to 7026389YP)

$42.99

$

Usually ships in 2-12 days

0

3

Snapper 7079831

PIN, 5/16 x 1-7/16" Clevis
(Superseded to 7079831YP)

Note: Was 91645

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7028789

DECAL, Engine Speed (Without Choke)

Note: (EURO Briggs & Stratton Models)

$

$

Currently unavailable

Snapper 7028433

DECAL, Engine Speed (Without Choke)

$

$

Currently unavailable

Snapper 7029822

DECAL, Engine Speed (With Choke)

Note: (EURO Kawasaki Models)

$

$

Not available

5

Snapper 7028396

KNOB, Throttle Control & 3-Speed Control
(Superseded to 7028396YP)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 7028436

DECAL, OPC/SP Instruction
(Superseded to 7028436YP)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7029824

DECAL, OPC/SP Instruction

Note: (EURO Model ELP21500KWV)

$

$

Currently unavailable

7

Snapper 7028431

DECAL, Console
(Superseded to 7028431YP)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7028435

DECAL, 3-Speed Control

$

$

Currently unavailable

Snapper 7029823

DECAL, 3-Speed Control
(Superseded to 7029823YP)

Note: (EURO Model ELP21500KWV)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7026426

CONSOLE, Control
(Superseded to 7026426YP)

$25.99

$

Usually ships in 2-12 days

0

10

Snapper 7028398

CONTROL ASSEMBLY, 3-Speed
(Superseded to 7028398YP)

$128.99

$

In Stock, only 1 left!

0

11

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

12

Snapper 7091288

SCREW, 1/4-20 x 2" Hex Washer Head, Self-Tapping

$

$

Currently unavailable

13A

Snapper 7028883

CABLE ASSEMBLY, Blade Control
(Superseded to 7028883YP)

Note: (EURO Kawasaki Models)

$18.99

$

Usually ships in 2-12 days

0

13B

Snapper 7028803

CABLE ASSEMBLY, Blade Control
(Superseded to 7028803YP)

$91.99

$

In Stock, only 1 left!

0

14

Snapper 7023153

CLAMP, Throttle (3-Speed Control)
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7023154

SCREW, #10-32 x 5/8 Slotted Hex Head, Self-Tapping
(Superseded to 7023154YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7035744

KNOB, 5/16-18 Thread
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 91646

$3.99

$

In Stock, Qty 13

0

19

Snapper 7026436

CLAMP, Double Tube
(Superseded to 7026436YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7034848

BRACKET, Handle

Note: Was 34329

$

$

Not available

22

Snapper 7091740

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 11

0

23

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7022779

GUIDE, Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 7026219

CLAMP, Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7034376

BRACKET, Console
(Superseded to 7034376YP)

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 7063163

CABLE, Traction
(Superseded to 7063163YP)

Note: Was 24562

$50.99

$

In Stock, only 2 left!

0

29

Snapper 7028397

CONTROL, Throttle
(Superseded to 7028397YP)

Note: (Brigg's & Stratton Engine Without Choke)

$24.99

$

Usually ships in 2-12 days

0

30

Snapper 7028560

ASSEMBLY, Throttle Control
(Superseded to 7028560YP)

Note: (Kawasaki Engine) (EURO Kawasaki Models)

$10.99

$

Usually ships in 2-12 days

0

31

Snapper 7028559

CABLE, Throttle Control
(Superseded to 7028559YP)

Note: (Kawasaki Engine) (EURO Kawasaki Models)

$11.99

$

Usually ships in 2-12 days

0

32

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, Qty 7

0

Snapper 7091597

COTTER-PIN, 3/32" x 1/2"
(Superseded to 703312)

Note: Was 90555 (LP21600, ELP21550KWV, ELP21600 Models)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7091076

WASHER, Flat, .343 I.D. x.688 O.D.
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7033853

HANDLE, Upper

$

$

Currently unavailable

35

Snapper 7026216

GRIP, Foam
(Superseded to 7026216SM)

$26.99

$

Usually ships in 2-12 days

0

36

Snapper 7029841

PIN, 5/16 x 1.71" Clevis
(Superseded to 704029)

Note: Was 91644

$4.49

$

In Stock, Qty 6

0

37

Snapper 7091244

SCREW, M5 Thread, Hex Head Torx

Note: (EURO Model ELP21500KWV)

$

$

Currently unavailable

38

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, Qty 20+

0
