ELP 21602E (84642) - Snapper 21" Walk-Behind Mower, 6hp BATTERY & COMPONENTS Parts Diagram

21" Walk-Behind Mower, 6hp

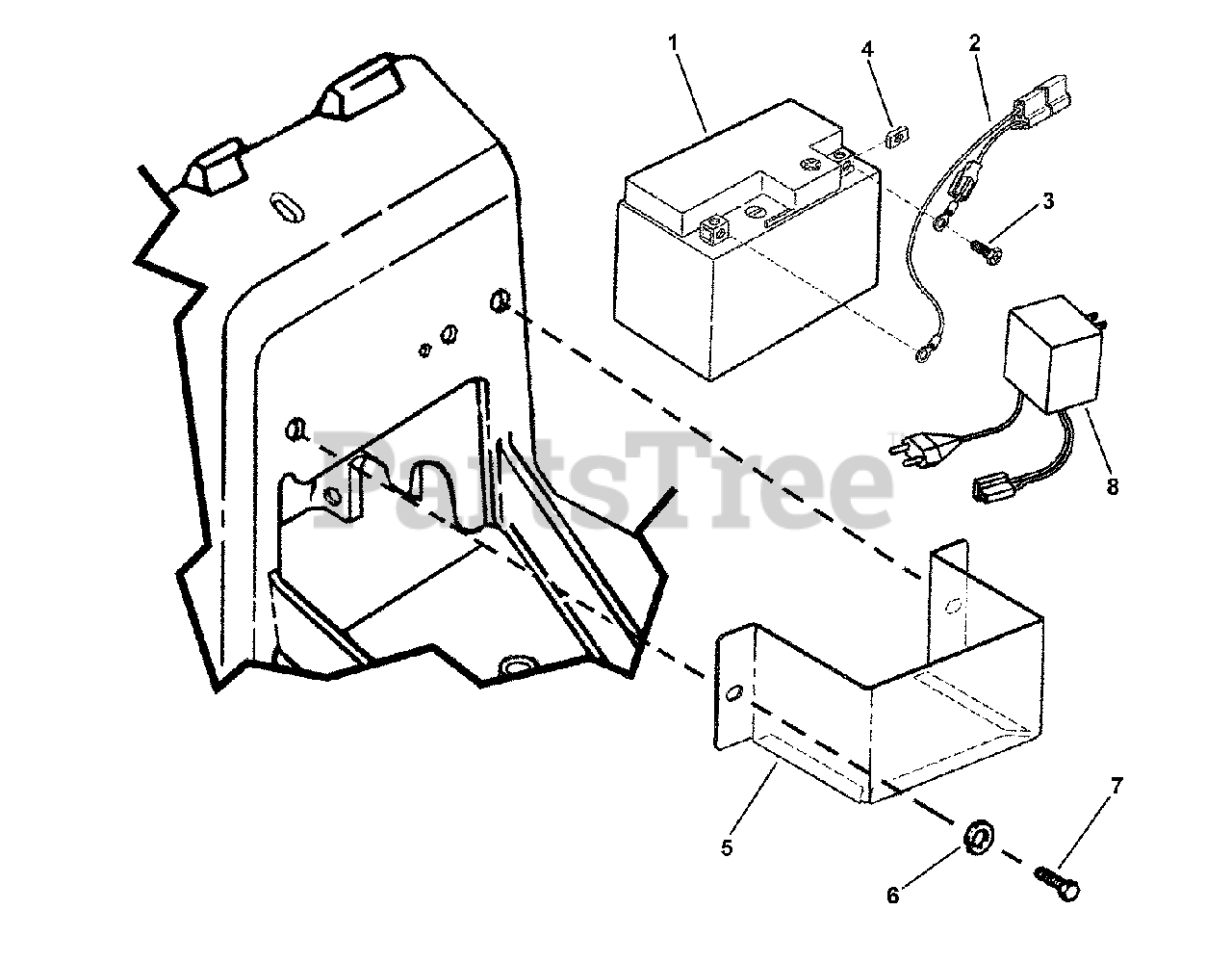

BATTERY & COMPONENTS Parts Diagram

  • Title

Snapper 7067012

KIT, Battery (Includes Items 1 thru 4)
(Superseded to 7067012YP)

$99.99

$

Usually ships in 2-12 days

0

1

Snapper 7019763

BATTERY, 12 Volt, 35 CCA
(Superseded to 7067012YP)

$99.99

$

Usually ships in 2-12 days

0

2

Snapper 7015488

HARNESS, Battery
(Superseded to 7015488YP)

$15.99

$

In Stock, only 2 left!

0

3

Snapper 7043977

SCREW, M5 x 10mm Cross Recess Pan Head
(Superseded to 7043977YP)

$

$

Not available

4

Snapper 7090932

NUT, Battery Terminal
(Superseded to 7090932YP)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 7073628

BRACKET, Battery Support
(Superseded to 7073628YP)

$36.99

$

Usually ships in 2-12 days

0

6

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

7

Snapper 7090073

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7018977

CHARGER, Battery, 230v/12v
(Superseded to 7018977YP)

$81.99

$

In Stock, only 1 left!

0
