ELT 125D331KV (80396) - Snapper 33" Lawn Tractor, 12.5hp Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

33" Lawn Tractor, 12.5hp

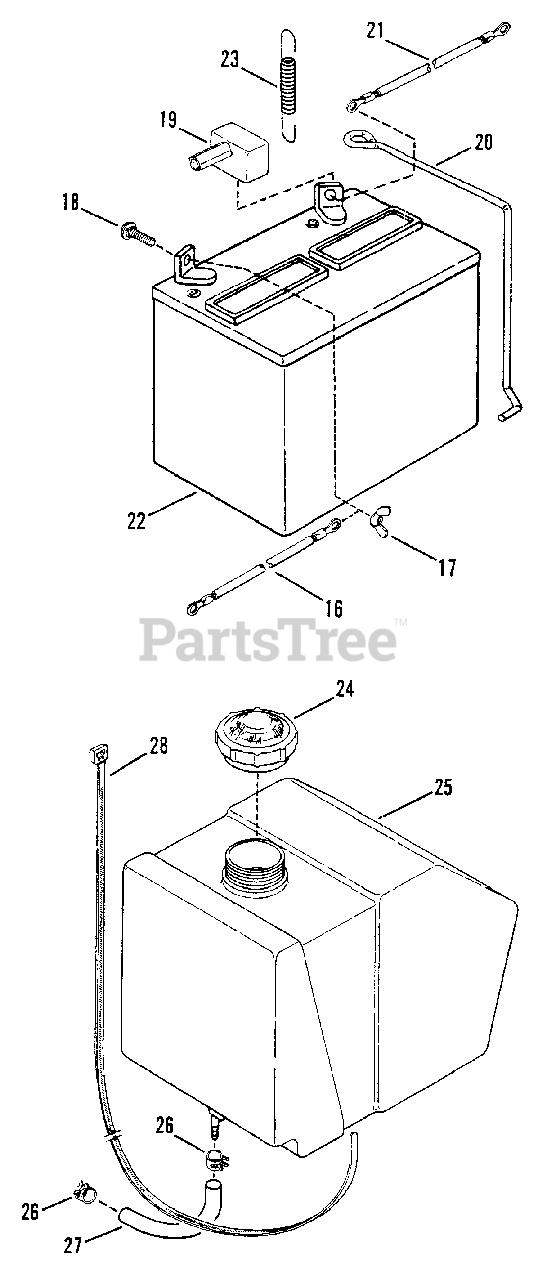

Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

  • Title

16

Snapper 7014475

CABLE, Negative Terminal

$

$

Not available

17

Snapper 7091568

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 90311

$5.49

$

In Stock, only 2 left!

0

18

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage
(Superseded to 7091530SM)

Note: Was 90074

$4.49

$

In Stock, only 4 left!

0

19

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.99

$

In Stock, Qty 6

0

20

Snapper 7022366

CLAMP, Battery
(Superseded to 7022366YP)

$14.99

$

In Stock, only 2 left!

0

21

Snapper 7014476

CABLE, Positive Terminal
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper 7060618

KIT, Battery (12 Volt)
(Superseded to 1685215SM)

$

$

Not available

23

Snapper 7022696

SPRING, Battery Bracket
(Superseded to 7022696YP)

$

$

Not available

24

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

Note: Was 17808

$20.99

$

In Stock, only 2 left!

0

25

Snapper 7052258

TANK, Fuel

Note: (Includes Item 24)

$

$

Not available

26

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 12

0

27

Snapper 7073240

LINE, Fuel (5" Long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

28

Snapper 7023195

TIE, Cable (Fuel Tank Hold Down)
(Superseded to 7023195SM)

$7.99

$

Usually ships in 2-12 days

0
