ELT 125D331KV (80396) - Snapper 33" Lawn Tractor, 12.5hp Hood, Bumper & Components Parts Diagram

33" Lawn Tractor, 12.5hp

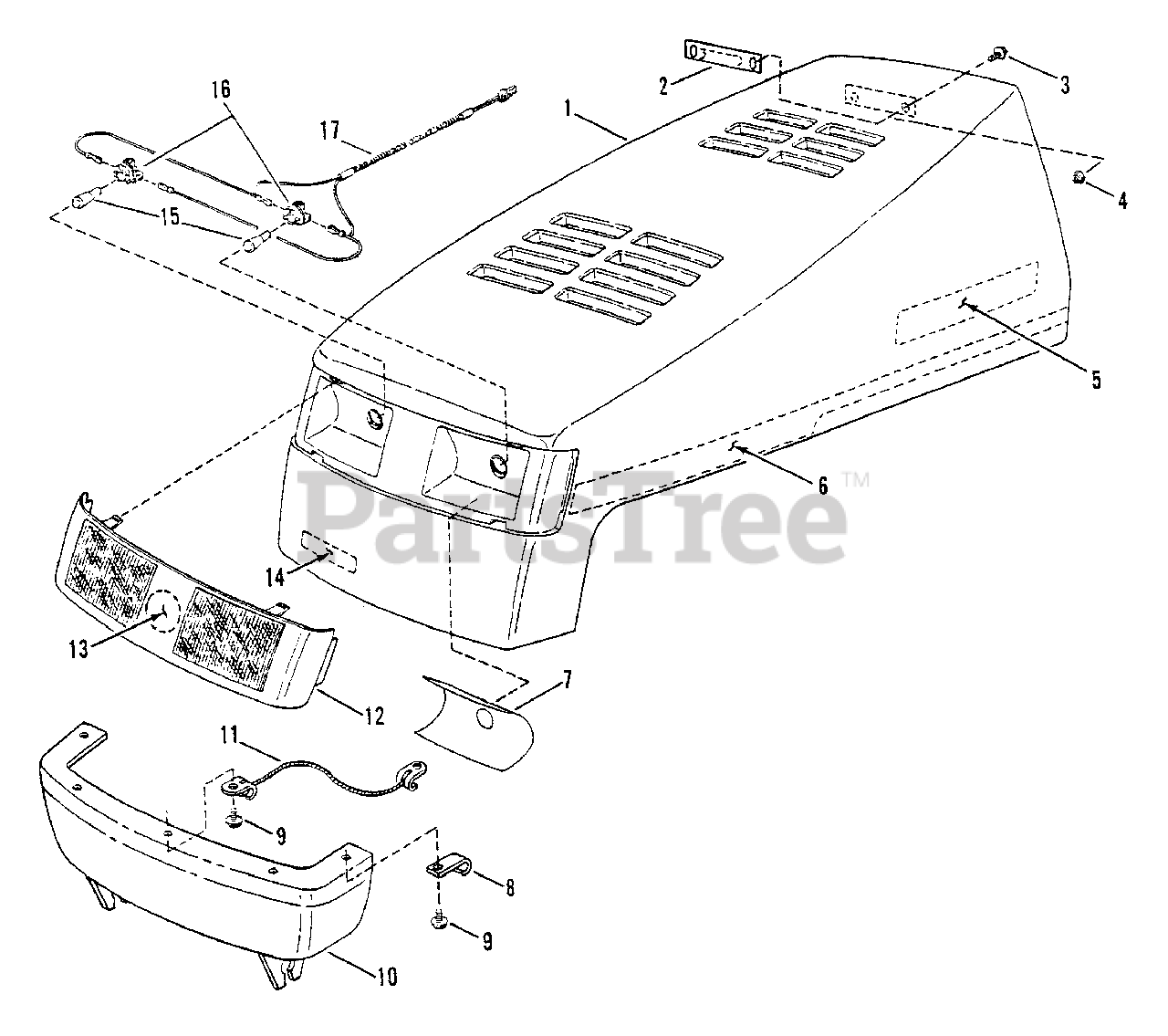

Hood, Bumper & Components Parts Diagram

  • Title

1

Snapper 7063298

HOOD
(Superseded to 7063298YP)

Note: Was 24605

$1099.99

$

Usually ships in 2-12 days

0

2

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7024980

DECAL, SNAPPER 8" Molded Logo

$

$

Not available

6

Snapper 7024963

DECAL, Hood, (Right Side) (33" Models)
(Superseded to 7024963YP)

$9.49

$

Usually ships in 2-12 days

0

Snapper 7024964

DECAL, Hood, (Left Side) (33" Models)
(Superseded to 7024964YP)

$9.49

$

Usually ships in 2-12 days

0

7

Snapper 7017174

DECAL, Lens (Right Side)
(Superseded to 7017174YP)

$8.49

$

Usually ships in 2-12 days

0

Snapper 7017175

DECAL, Lens (Left Side)
(Superseded to 7017175YP)

$8.49

$

Usually ships in 2-12 days

0

8

Snapper 7026482

CLIP "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 7091106

SCREW, M4.8 x 1.59 x 16mm Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7029620

BUMPER, Front
(Superseded to 7029620YP)

$111.99

$

Usually ships in 2-12 days

0

11

Snapper 7026114

LANYARD, Hood
(Superseded to 7073446YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7024893

LENS, Clear
(Superseded to 7024893YP)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper 7024982

DECAL, Molded Medallion, Convertible Mower

$

$

Currently unavailable

14

Snapper 7024979

DECAL, SNAPPER, 4" Molded Logo
(Superseded to 7024979YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$15.99

$

In Stock, only 1 left!

0

16

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

17

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7063298

KIT, Hood Replacement
(Superseded to 7063298YP)

Note: Was 61383

$1099.99

$

Usually ships in 2-12 days

0
