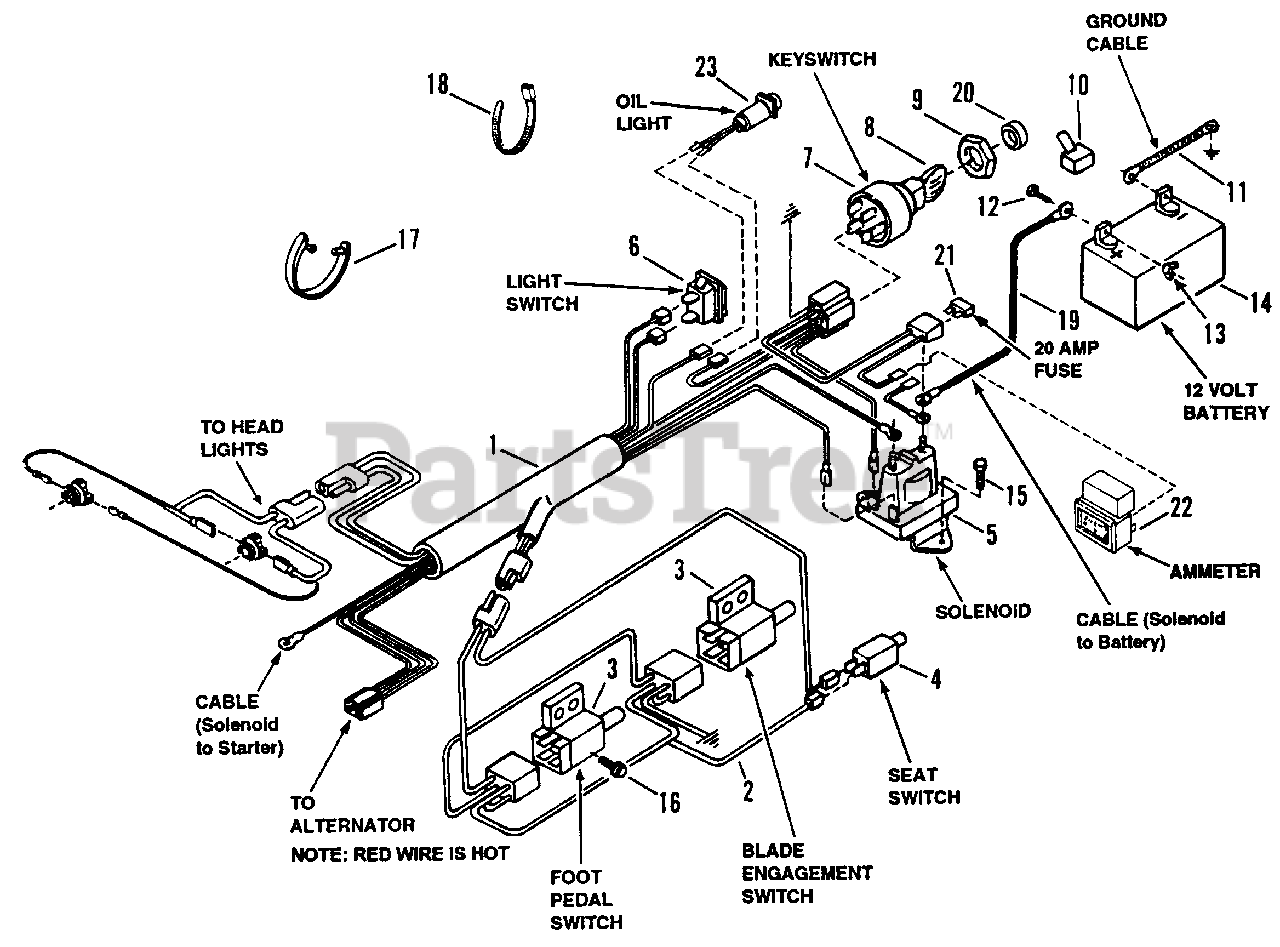

ELT 140H331KV (80397) - Snapper 33" Lawn Tractor, 14hp (1991) Electrical System Parts Diagram

33" Lawn Tractor, 14hp

Electrical System Parts Diagram

  • Title

1

Snapper 7022699

HARNESS, Wiring (Kohler Engine)

$

$

Not available

2

Snapper 7024126

HARNESS, Interlock
(Superseded to 7024126YP)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7023355

SWITCH, Clutch & PTO
(Superseded to 7023355YP)

$18.99

$

In Stock, only 4 left!

0

4

Snapper 7023354

SWITCH, Seat NC
(Superseded to 7023354YP)

Note: Was 17590

$12.99

$

In Stock, Qty 20+

0

5

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 11

0

6

Snapper 7023187

SWITCH, Light
(Superseded to 7023187YP)

$15.99

$

In Stock, only 1 left!

0

7

Snapper 7027698

SWITCH, Key
(Superseded to 7027698YP)

Note: Was 18562 (Includes 2 item 8)

$34.99

$

In Stock, Qty 5

0

8

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$9.49

$

In Stock, Qty 7

0

9

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

Note: Was 23505

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.99

$

In Stock, Qty 6

0

11

Snapper 7014475

CABLE, Negative 15" 8 AWG Black

$

$

Not available

12

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$5.49

$

In Stock, only 2 left!

0

14

Snapper 7060618

KIT, Battery
(Superseded to 1685215SM)

$

$

Not available

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7014451

TIE, Wire
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7012080

TIE, Cable 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7014476

CABLE, Positive 11" 8 AWG Red
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7023653

FUSE, 20 Amp
(Superseded to 7023653YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7022690

AMMETER
(Superseded to 7022690YP)

$16.99

$

Usually ships in 2-12 days

0

23

Snapper 7060982

OIL LIGHT
(Superseded to 7060982YP)

Note: Was 22691

$53.99

$

In Stock, only 1 left!

0

Snapper 7016245

RETAINER, 1/2 (Not shown on back of light switch)(No longer available)

Note: Was 16245

$

$

Currently unavailable
