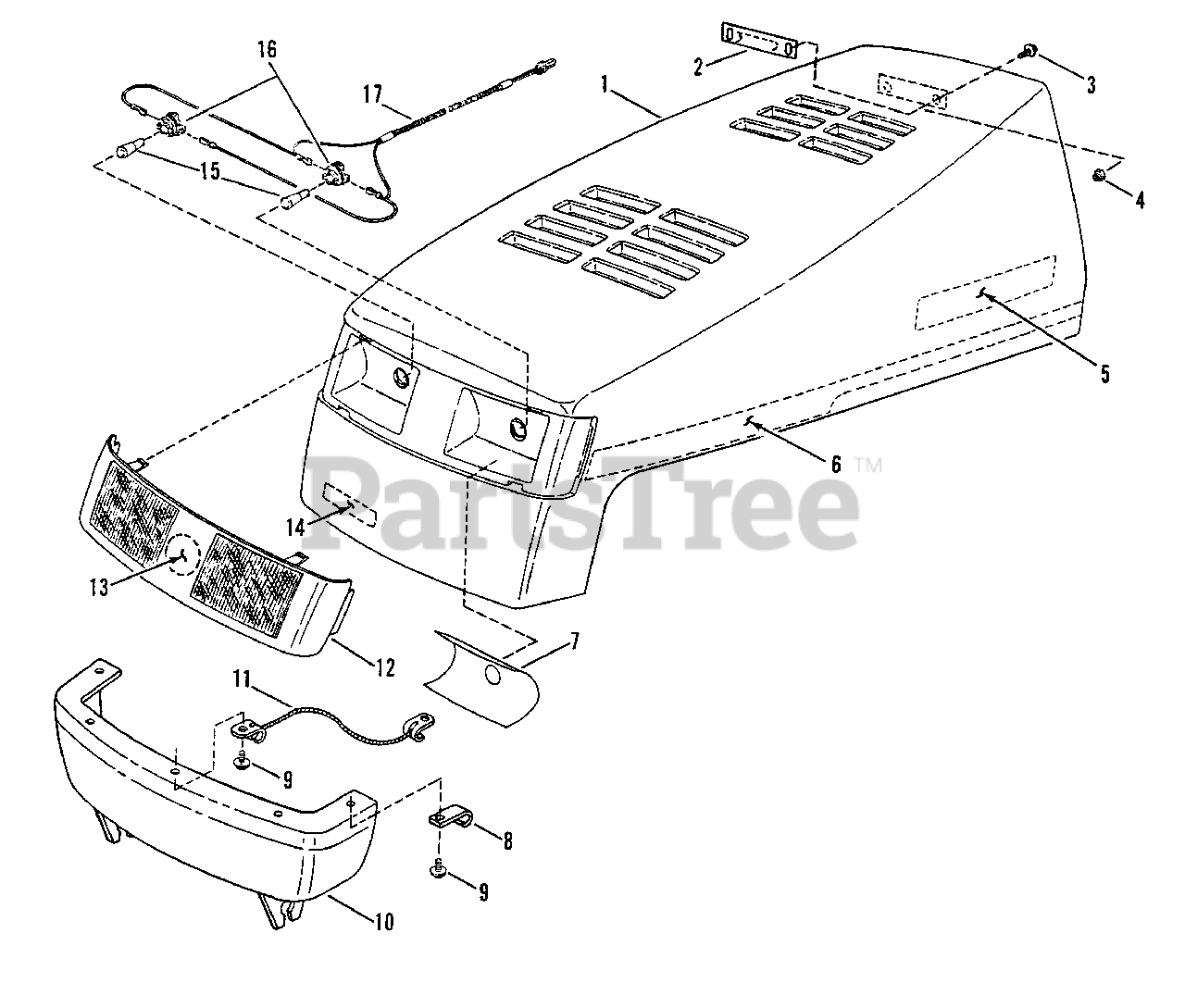

ELT 140H33ABV (80562) - Snapper 33" Lawn Tractor, 14hp Hood, Bumper, & Components Parts Diagram

33" Lawn Tractor, 14hp

Hood, Bumper, & Components Parts Diagram

  • Title

1

Snapper 7063298

HOOD Assembly
(Superseded to 7063298YP)

Note: Was 52921 or 61383

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Hd., Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7024903

DECAL - SNAPPER, 8" Molded Logo, White Letters

$

$

Currently unavailable

5

Snapper 7024980

DECAL - SNAPPER, 8" Molded Logo, Silver Letters

Note: Was 16974 or 36438, For (33" & 38" Models)

$

$

Not available

6

Snapper 7027840

DECAL, Hood, Right Side
(Superseded to 7027840YP)

Note: For (33" Model)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper 7027841

DECAL, Hood, Left Side
(Superseded to 7027841YP)

Note: For (33" Model)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7027832

DECAL, Hood, Right Side
(Superseded to 7027832YP)

Note: For (38" Model)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7027833

DECAL, Hood, Left Side

Note: For (38" Model)

$

$

Currently unavailable

7

Snapper 7017174

DECAL, Lens, Right Side
(Superseded to 7017174YP)

Note: For (33" & 38" Models)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 7017175

DECAL, Lens, Left Side
(Superseded to 7017175YP)

Note: For (33" & 38" Models)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 7026482

CLIP, "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00mm
(Superseded to 7091106YP)

Note: Special

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7029620

BUMPER, Front
(Superseded to 7029620YP)

Note: Was 24615

$104.99

$

Usually ships in 2-12 days

0

11

Snapper 7026114

LANYARD, Hood
(Superseded to 7073446YP)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7024893

LENS, Clear
(Superseded to 7024893YP)

$45.99

$

Usually ships in 2-12 days

0

13

Snapper 7026377

DECAL, Molded Medallion, Convertible Mower

Note: Was 71544 (For 38" Model)

$

$

Currently unavailable

14

Snapper 7022968

DECAL - SNAPPER, 4" Molded Logo, White Letters

Note: For (33" 8 38" Models)

$

$

Not available

15

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

16

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

17

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0
